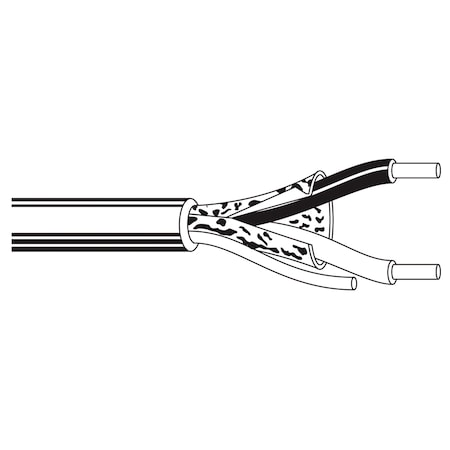

Belden 8450 Multi-Conductor Single-Pair Cable
- Brand: Belden
- PartNumber: 8450 0101000
- Model: 8450 0101000
- Color: Black
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Belden
- Label: Belden
Attributes
| Key | Value |
|---|
| Application | For audio, control and . |
| Base Product Number | 8450 |
| Cable Type | Multi-Conductor, STP |
| Category | Cables, Wires |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Tinned Copper (TC), Cop. |
| Conductor Size | 22 AWG |
| Conductor Strand | Solid |
| Configuration | 1 Pair |
| Description | CABLE 2COND 22AWG BLK S. |
| Detailed Description | 2 (1 Pair Twisted) Cond. |
| Digi-Key Part Number | BEL1308-1000-ND |
| Features | - |
| Indoor / Outdoor | Indoor |
| Insulated / Uninsulated | Insulated |
| Insulation Material | Polypropylene, Polyprop. |
| Insulation Thickness | 0.008 in. |
| Jacket (Insulation) Dia. | 0.118" (3.00mm) |
| Jacket (Insulation) Mat. | Poly-Vinyl Chloride (PV. |
| Jacket (Insulation) Thi. | 0.0180" (0.457mm) |
| Jacket Color | Black |
| Jacket Material | PVC, Polyvinyl Chloride. |
| Jacket Thickness | 0.02 in. |
| Length | 1000.0' (304.8m), 1000 . |
| Manufacturer | Belden Inc. |
| Manufacturer Product Nu. | 8450 0101000 |
| Manufacturer Standard L. | 7 Weeks |
| Max. Voltage | 300V |
| Mfr | Belden Inc. |
| NEC Article and Type | CM |
| Nominal Impedance | 50 Ohms |
| Number of Conductor Pai. | 1 |
| Number of Conductors | 2 (1 Pair Twisted), 2 |
| Number of Pairs | 1 |
| Operating Temperature | -20?C ~ 105?C, 105 ?C |
| Outer Diameter | 0.118 in. |
| Package | Spool |
| Packaging | Coil |
| Product Header | Paired Overall Beldfoil. |
| Product Status | Active |
| Ratings | - |
| Series | -, 8450 Series |
| Shield | Tinned Copper Overall 1. |
| Shield Coverage | 100% |
| Shield Material | Aluminum/Polyester Tape. |
| Shield Type | Foil |
| Shielding | Foil |
| Standards | UL NEC Type CM/cUL CEC . |
| Stranding | Solid |
| Temp. Rating | 75?C |
| Temperature, Rating | -20 to 105 C |
| Usage | - |
| Voltage Rating | 300 V |
| Wire Gauge | 22 AWG |
| Wire Material | Tinned Copper |
| Wire Size | 22 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1142943 | 422.0 | 1 | In Stock | 30 | Belden Bav | | 422.0 @ 1 |
 | Digi-Key | 7008235 | 448.25 | 1 | In Stock | | Belden Inc. | | 448.25 @ 1 |
 | Markertek | BL-8450-1000 | 471.0 | 1 | In Stock | | Belden | | 471.0 @ 1 |
| us.rs-online.com | 70004846 | 577.35 | 1 | 1 | | Belden | | 577.35 @ 1 |
 | Newark | 15B3336 | 606.04 | 1 | In Stock | | BELDEN | | 606.04 @ 1 |
| RS Delivers | 617-1805 | 915.528 | 1 | 12 | | Belden | | 915.528 @ 1 |
