Burndy YGHP34C2

B008KNL896

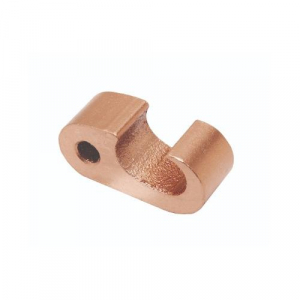

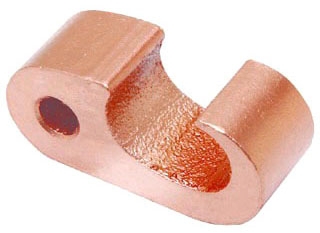

Burndy YGHP34C2 HYTAP Connector, 250 kcmil - 500 kcmil, 5/8" - 3/4" Rod Run, 4 Sol. - #2 Str. Tap

Burndy YGHP34C2 HYTAP Connector, 250 kcmil - 500 kcmil, 5/8" - 3/4" Rod Run, 4 Sol. - #2 Str. Tapzoom

Attributes

Key Value
ApprovalsCSA, IEEE, UL
BrandHytap
Brand NameBurndy
Certification - CSA App.Yes
Certification - cULusNo
Certification - ETLNo
Certification - UL List.Yes
Certification - UL Reco.No
Color CodeNo
CommentsAcceptable for direct b.
Conductor - Copper Soli.4 AWG; 3 AWG; 2 AWG
Conductor - Copper Soli.4 AWG-2 AWG
Conductor - Copper Str .250 kcmil; 300 kcmil; 3.
Conductor - Copper Str .250 kcmil-500 kcmil
Conductor - Copper Str .4 AWG; 3 AWG; 2 AWG
Conductor - Copper Str .4 AWG-2 AWG
Conductor - Rebar Run5; 6
Conductor - Rebar Run R.5-6
Conductor - Rod Run5/8 in; 3/4 in
Conductor - Rod Run Ran.5/8 in-3/4 in
Conductor Combinations#5 - #6 Rebar, 5/8 - 3/.
Conductor Size - Run250-500 KCMIL Stranded
Conductor Size - Tap4-2 AWG Solid Copper
Connector TypeTap
Country Of OriginUnited States of America
Country of OriginUS - United States
Country of Origin (subj.United States
Degree of ProtectionNo
Die Index998
Dimension - B Length fr.3/4 in
Dimension - B Length in.0.75 in
Drive TypeNo
ECCNEAR99
Energy Star FlagNo
Family SeriesBurndy Terminals, YGHP-.
FinishUnplated
Gross Weight0.0263 lbs
GTIN00781810220955
Industry Standard(s)UL467; UL486A; CSA Cert.
Insulation MaterialNo
Item NameCompression Ground Rod .
Item NumberYGHP34C2
Item Type3B
Made In AmericaYes
Main Conductor Size250 to 500 kcmil
ManufacturerBurndy
Manufacturer NameBurndy
Manufacturer Part NumberYGHP34C2
MaterialCopper, Copper Alloy
Net Weight0 lbs
Oxide Inhibitor TypePenetrox E
Physical Attribute - Nu.1
PlatedN
Plating TypeUnplated
Prefilled Oxide Inhibit.Y
Product SeriesYGHP-C
RoHS FlagYes
Size0.75 Inch Length
StandardsUL 467 Listed, CSA Cert.
Standards - RoHS Compli.CM
Stud SizeNo
Sub BrandHytap?
Terminal MaterialCopper
Terminal TypeC-Tap
TypeTaps, Type YGHP-C
UL ListedYes
UNSPSC39121427, 39121466
UPC78181022095
UPC Code781810220955
Use WithCopper

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomKelly HayesYGHP34C240.51157Burndy40.51 @ 1
thumbzoomZoroG00243800648.591In StockBurndy48.59 @ 1
kirbyrisk.com53930162.291In StockBurndy62.29 @ 1
thumbzoomusmegastore.comYGHP34C265.431In StockBurndy65.43 @ 1
thumbzoomgordonelectricsupply.comYGHP34C267.441In StockBURNDY67.44 @ 1
Monarch Electric13900468.041In StockBurndy68.04 @ 1
Graybar8804901575.2641In StockBurndy75.264 @ 1
us.rs-online.com7149618984.331In StockBURNDY84.33 @ 1
thumbzoomGalcoYGHP34C2-BURN88.191In StockBurndy0.026388.19 @ 1
