- mpn43612
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

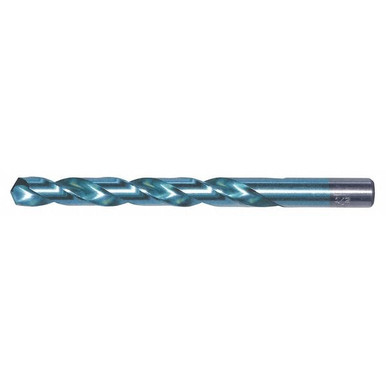

Chicago-Latrobe 43612 150ASP-TC Heavy Duty Jobber Length Drill Bit, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 135 deg Point, HSS, TiCN Coated (12 Each)
- Brand: Chicago Latrobe
- PartNumber: 43612
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Cast Iron,. |
| Brand | Chicago-Latrobe |
| Current Stock | 116 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1875 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1875", 0.1875 |
| Diameter(Fraction) | 3/16" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | TiCN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 3/16 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0388" |
| Drill Size - Decimal In. | 0.1875 in |
| Drill Size - Fraction | 3/16 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | TiCN Coated |
| Flute Length | 2 5/16 in, 2-5/16 in, 2. |
| Flute Length (Metric) | 58.74mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 47/64 in |
| Mpn | 43612 |
| Number of Flutes | 2 |
| Overall Length | 3.5000", 3 1/2 in, 3-1/. |
| Overall Length (Metric) | 88.90mm |
| Point Angle | 135 deg, 135?, 135 |
| Point Style | Split |
| Point Type | Split |
| Series | 150ASP-TC |
| Shank Configuration | Straight |
| Shank Dia. | 3/16 in |
| Shank Length | 1 3/16 in, 1.1875" |
| Shank Length (Metric) | 30.16mm |
| Shank Size | 3/16 in Dia x 1-3/16 in. |
| Shank Size (Metric) | 4.76mm |
| Shank Type | Straight |
| SKU | ZO-G3644611 |
| Style | 150ASP-TC |
| SubCategory | Machining |
| Surface Condition | TiCN |
| Through Coolant (Yes/No) | No |
| Tool Size | 3/16" |
| Type | Heavy Duty |
| UPC | 662355436127 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6127939 | 4.34 | 9 | 23 | | Chicago-Latrobe | | 4.34 @ 9 |
 | Global Industrial | WBB2547641 | 4.76 | 12 | In Stock | | Chicago-Latrobe | | 4.76 @ 12 |
 | Zoro | G3644611 | 5.05 | 1 | 173 | | Chicago-Latrobe | 0.02 | 5.05 @ 1 |
 | usmegastore.com | 43612 | 5.9 | 1 | In Stock | | Chicago-Latrobe | | 5.9 @ 1 |
 | Megadepot | 43612 | 5.9 | 1 | In Stock | | Chicago-Latrobe | | 5.9 @ 1 |
 | heavydutydepot.com | 43612 | 5.9 | 17 | In Stock | | Chicago-Latrobe | | 5.9 @ 17 |
 | sustainablesupply.com | C1463782 | 7.15 | 1 | 23 | | Chicago-Latrobe | 0.02 | 7.15 @ 1 |
 | Raptor Supplies | AA2KZK | 7.2739485 | 1 | 23 | | CHICAGO-LATROBE | | 7.2739485 @ 1 |
 | simsupply.com | ZO-G3644611 | 15.56 | 1 | 23 | | Chicago-Latrobe | | 15.56 @ 1 |
 | National Supply Network | 56478027 | 18.64 | 1 | In Stock | | Chicago-Latrobe | | 18.64 @ 1 |
