- mpn46075
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

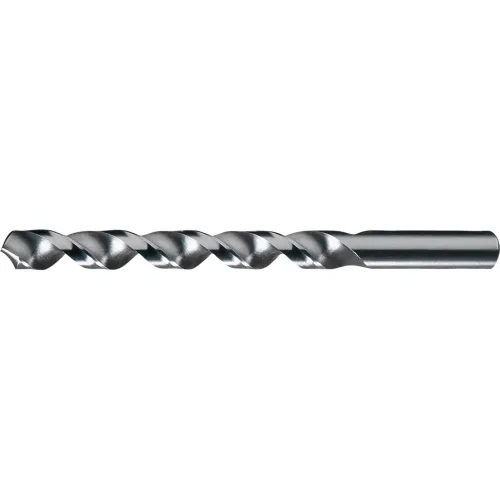

Chicago-Latrobe 46075 150B Jobber Length Drill Bit, 5 Drill - Wire, 0.2055 in Drill - Decimal Inch, 118 deg Point, HSS, Bright (Each)
- Brand: Chicago Latrobe
- PartNumber: 46075
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Aluminum, Carbon Steel,. |
| Application | Chip Ejection, Carbon S. |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Cutting Depth | 2-1/2 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.2055 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.2055", 0.2055 |
| Diameter (Wire/Let) | 5 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | #5 |
| Drill Construction | High Helix |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0617 in |
| Drill Size - Decimal In. | 0.2055 in |
| Drill Size - Wire | #5 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Bright |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 2.5000", 2-1/2 in, 2 1/. |
| Flute Length (Metric) | 63.50mm |
| Flute Type | Right Spiral, Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 40 Degrees |
| Item | Jobber Length Drill Bit |
| Left/Right Hand | Right |
| List Number | 150B |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | General Purpose |
| Maximum Drilling Depth | 13/16 in |
| Measurement System | Wire |
| Number of Flutes | 2 |
| Overall Length | 3.7500", 3 3/4 in, 3-3/. |
| Overall Length (Metric) | 95.25mm |
| Point Angle | 118 deg, 118, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Composite, Co. |
| Primary Material Applic. | N, O, P |
| Series | 150B |
| Shank Configuration | Straight |
| Shank Dia. | 13/64 in |
| Shank Length | 1.2500", 1 1/4 in |
| Shank Length (Metric) | 31.75mm |
| Shank Size | 0.2055", 0.2055, 0.2055. |
| Shank Size (Metric) | 5.22mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ANSI |
| Style | 150B |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | #5 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6129014 | 3.15 | 12 | 12 | | Chicago-Latrobe | | 3.15 @ 12 |
 | Global Industrial | WBB2547019 | 3.2574 | 12 | 12 | | Chicago-Latrobe | | 3.2574 @ 12 |
 | Megadepot | 46075 | 3.75 | 1 | 12 | | Chicago-Latrobe | | 3.75 @ 12 |
 | heavydutydepot.com | 46075 | 3.75 | 27 | 12 | | Chicago-Latrobe | | 3.75 @ 27 |
 | usmegastore.com | 46075 | 3.93 | 1 | 12 | | Chicago-Latrobe | | 3.93 @ 12 |
 | Zoro | G2823937 | 4.24 | 1 | 12 | | Chicago-Latrobe | 0.02 | 4.24 @ 12 |
 | bscsource.com | 46075 | 5.89 | 1 | 12 | | Chicago-Latrobe | | 5.89 @ 12 |
 | National Supply Network | 81142051 | 6.3425 | 1 | 12 | | Chicago-Latrobe | | 6.3425 @ 12 |
 | Guardian | 81142051 | 6.9 | 1 | 12 | | Chicago-Latrobe | | 6.9 @ 12 |
