- mpn46080
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

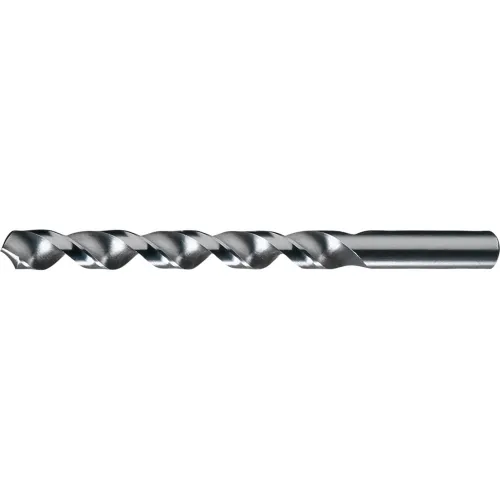

Chicago-Latrobe 46080 150B Jobber Length Drill Bit, 10 Drill - Wire, 0.1935 in Drill - Decimal Inch, 118 deg Point, HSS, Bright (Each)
- Brand: Chicago Latrobe
- PartNumber: 46080
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Aluminum, Carbon Steel,. |
| Brand | Chicago-Latrobe |
| Current Stock | 3 |
| Cutting Depth | 2-7/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1935 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1935", 0.1935 |
| Diameter (Wire/Let) | 10 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | #10 |
| Drill Construction | High Helix |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0581 in |
| Drill Size - Decimal In. | 0.1935 in |
| Drill Size - Wire | #10 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Bright |
| Flute Length | 2-7/16 in, 2 7/16 in, 2. |
| Flute Length (Metric) | 61.91mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 13/16 in |
| Mpn | 46080 |
| Number of Flutes | 2 |
| Overall Length | 3.6250", 3 5/8 in, 3-5/. |
| Overall Length (Metric) | 92.07mm |
| Point Angle | 118 deg, 118, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 150B |
| Shank Configuration | Straight |
| Shank Dia. | 3/16 in |
| Shank Length | 1 3/16 in, 1.1875" |
| Shank Length (Metric) | 30.16mm |
| Shank Size | 0.1935", 0.1935, 0.1935. |
| Shank Size (Metric) | 4.91mm |
| Shank Type | Straight |
| SKU | ZO-G2823858 |
| Style | 150B |
| SubCategory | Machining |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | #10 |
| UPC | 662355460801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6129019 | 2.64 | 14 | 12 | | Chicago-Latrobe | | 2.64 @ 14 |
 | Global Industrial | WBB2547100 | 2.7114 | 12 | 12 | | Chicago-Latrobe | | 2.7114 @ 12 |
 | Megadepot | 46080 | 3.25 | 1 | 12 | | Chicago-Latrobe | | 3.25 @ 12 |
 | heavydutydepot.com | 46080 | 3.25 | 31 | 12 | | Chicago-Latrobe | | 3.25 @ 31 |
 | usmegastore.com | 46080 | 3.44 | 1 | 12 | | Chicago-Latrobe | | 3.44 @ 12 |
 | Zoro | G2823858 | 3.59 | 1 | 12 | | Chicago-Latrobe | 0.02 | 3.59 @ 12 |
| Grainger | 434G64 | 3.85 | 12 | 12 | 10 | CHICAGO-LATROBE | | 3.85 @ 12 |
 | bscsource.com | 46080 | 4.59 | 1 | 12 | | Chicago-Latrobe | | 4.59 @ 12 |
 | National Supply Network | 81142101 | 5.4325 | 1 | 12 | | Chicago-Latrobe | | 5.4325 @ 12 |
 | Guardian | 81142101 | 5.82 | 1 | 12 | | Chicago-Latrobe | | 5.82 @ 12 |
 | simsupply.com | ZO-G2823858 | 10.03 | 1 | 12 | | Chicago-Latrobe | | 10.03 @ 12 |
