- mpn46144
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

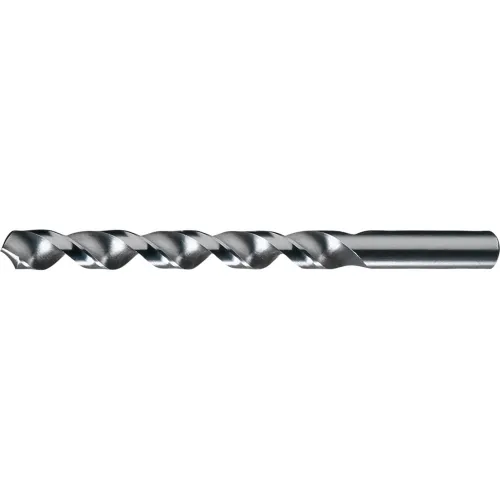

Greenfield 46144 150 B #74 (46144) (12/Each)
- Brand: Chicago Latrobe
- PartNumber: 46144
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Cutting Depth | 1/4 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.0225 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.0225", 0.0225 |
| Diameter (Wire/Let) | 74 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | #74 |
| Drill Construction | High Helix |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0068 in |
| Drill Size - Decimal In. | 0.0225 in |
| Drill Size - Wire | #74 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Bright |
| Flute Length | 0.2500", 1/4 in |
| Flute Length (Metric) | 6.35mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 3/16 in |
| Number of Flutes | 2 |
| Overall Length | 1.0000", 1 in |
| Overall Length (Metric) | 25.40mm |
| Point Angle | 118 deg, 118, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 150B |
| Shank Configuration | Straight |
| Shank Dia. | 1/64 in |
| Shank Length | 0.7500", 3/4 in |
| Shank Length (Metric) | 19.05mm |
| Shank Size | 0.0225", 0.0225, 0.0225. |
| Shank Size (Metric) | 0.57mm |
| Shank Type | Straight |
| Style | 150B |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | #74 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | 46144 | 2.18 | 1 | 12 | | Chicago-Latrobe | | 2.18 @ 12 |
 | MRO Supply | 6129083 | 2.18 | 17 | 12 | | Chicago-Latrobe | | 2.18 @ 17 |
 | heavydutydepot.com | 46144 | 2.18 | 46 | 12 | | Chicago-Latrobe | | 2.18 @ 46 |
 | Global Industrial | WBB2547272 | 2.2476 | 12 | 12 | | Chicago-Latrobe | | 2.2476 @ 12 |
 | usmegastore.com | 46144 | 2.95 | 1 | 12 | | Chicago-Latrobe | | 2.95 @ 12 |
 | Zoro | G2824759 | 2.95 | 1 | 52 | | Chicago-Latrobe | | 2.95 @ 12 |
 | National Supply Network | 81142747 | 4.4625 | 12 | 12 | | Chicago-Latrobe | | 4.4625 @ 12 |
 | Guardian | 81142747 | 5.21 | 1 | 12 | | Chicago-Latrobe | | 5.21 @ 12 |
