Dayton 4VAG3

B007IBWFDY

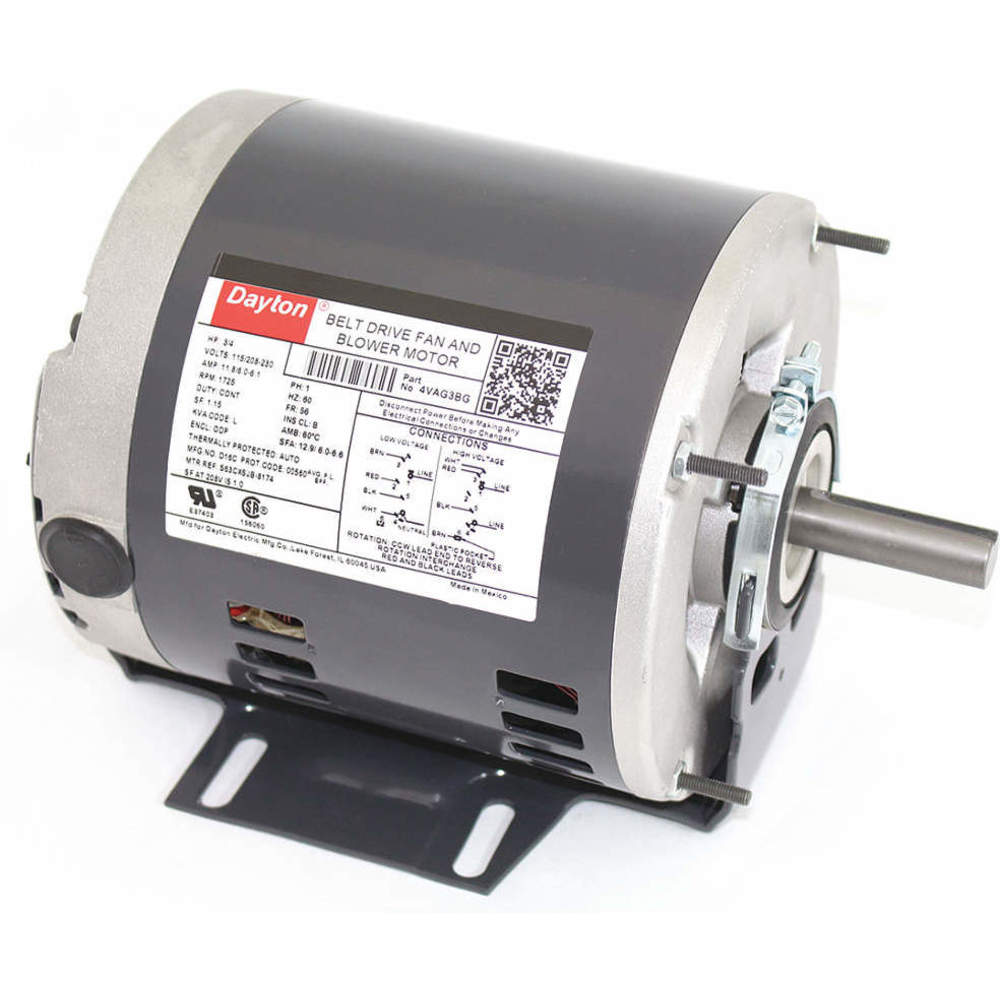

3/4 hp 1725 RPM 115/208-230V Belt Drive Hi-Temp Split-Phase Motor Dayton # 4VAG3

3/4 hp 1725 RPM 115/208-230V Belt Drive Hi-Temp Split-Phase Motor Dayton # 4VAG3zoom

Attributes

Key Value
Amps11.8/6.0-6.1
BearingsBall
Body Dia.6 1/2 in
Cross Reference4VAG7
Duty CycleContinuous
Efficiency65.6%
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof)
Frame56
Full Load Amps11.8/6.1-6.0
HP3/4
Hz60
Ins. ClassB
Insulation ClassB
ItemBelt Drive Motor
Length Less Shaft7 15/16 in
Max. Ambient Temp.60 Degrees C
Maximum Ambient Tempera.60? C
Motor ApplicationHVAC/R
Motor BearingsBall
Motor DesignSplit-Phase
Motor Diameter6-1/2"
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialRolled Steel
Motor Mounting PositionAll Angle
Motor Mounting TypeCradle Base
Motor Service Factor1.15
Motor Shaft RotationCW/CCW
Motor Shell Length7-15/16"
Motor Sub ApplicationBelt Drive Fan/Blower
Motor Thermal ProtectionAuto
MountingCradle
Mounting Stud Pattern4-1/4 in x 4-1/4 in
Nameplate RPM1,725
No. of Speeds1
Nominal Efficiency65.6 %
Number of Speeds1
Overall Length9-13/16", 9 13/16 in
Phase1, Single
Product TypeSplit Phase
Resilient Ring Dia.2 1/4 in
Ring to Ring Center7 7/16 in
RotationReversible
RPM1725
Service Factor (SF)1.15
Shaft Dia.5/8 in
Shaft Diameter5/8" Keyed
Shaft Length1-7/8", 1 7/8 in
Ship Weight30 lbs.
StandardsUL Recognized (E47479),.
Thermal ProtectionAutomatic
Voltage115/208-230V AC
Volts115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caAOS4VAG3259.773225461In StockDAYTON29.67259.77322546 @ 1
thumbzoomemotorpro.com4VAG3491.341In StockDayton30.0491.34 @ 1
thumbzoomRaptor SuppliesAD9UZJ649.28091151In StockDAYTON649.2809115 @ 1
