Dayton 4VAG5

B007IBW1FG

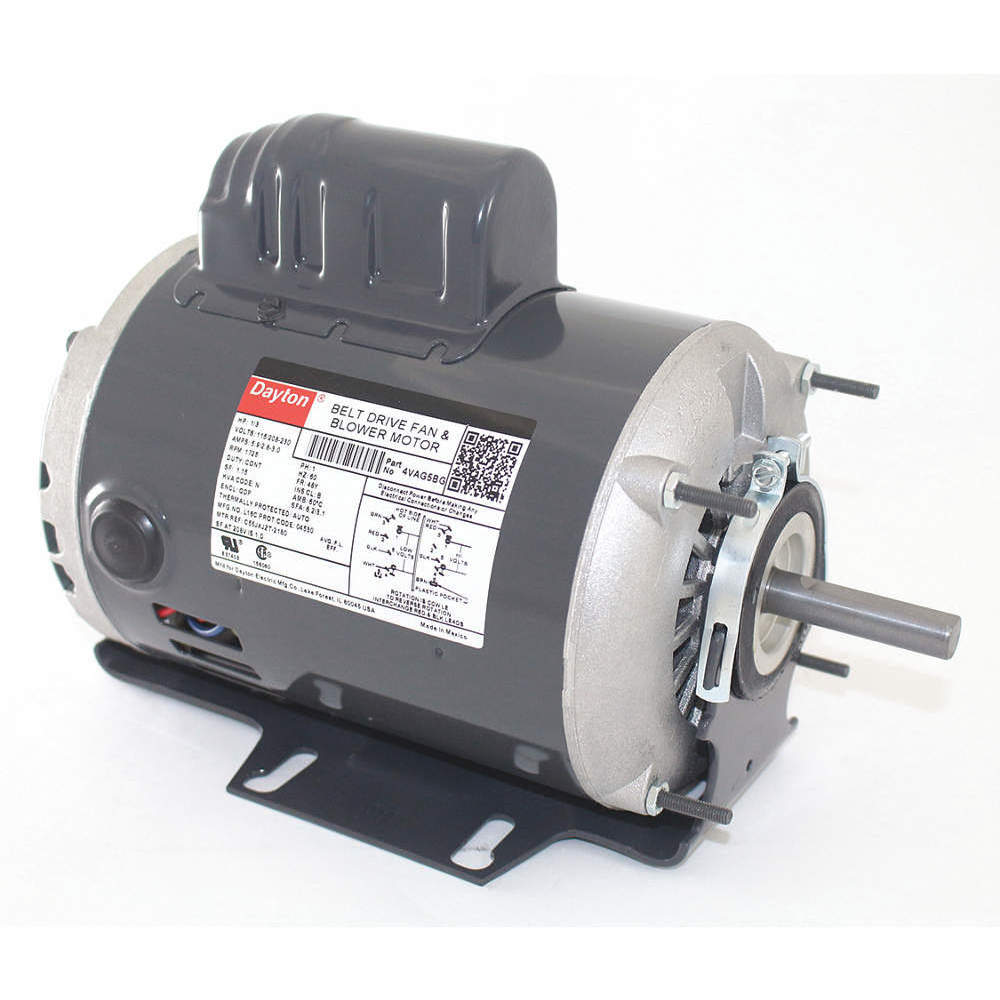

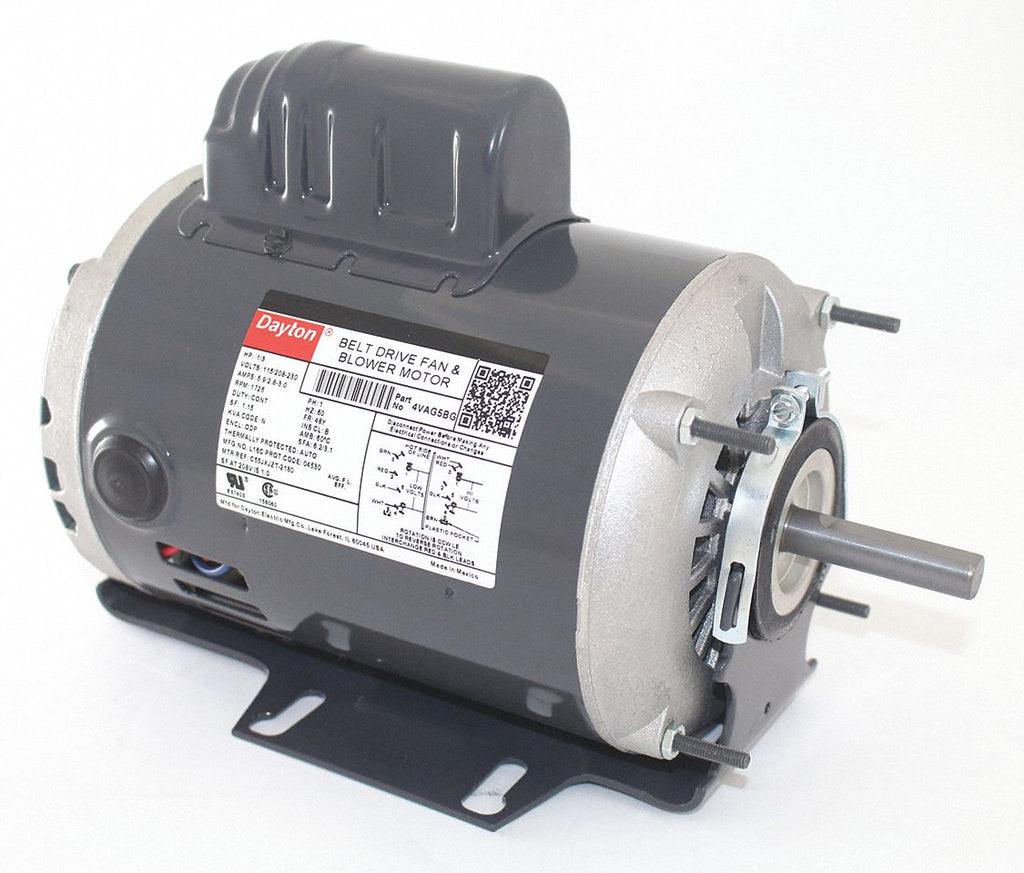

Mtr, Cap St, 1/3 HP, 1725, 115/208-230V, 48Y

Mtr, Cap St, 1/3 HP, 1725, 115/208-230V, 48Yzoom

Attributes

Key Value
Amps5.6/2.8-2.8
BearingsBall
Body Dia.5 5/8 in, 5-5/8"
BrandDayton
CapacitorStart Capacitor Included
ColorGrey
Country of Origin (subj.Mexico
Cross Reference4VAG1
Current Stock13
DutyContinuous
Duty CycleContinuous
Efficiency63%
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof)
FootnotesUsable On 208V At 1.0 S.
Frame48Y
Frame MaterialSteel
Full Load Amps5.6/2.8-2.8, 5.9/3.0-2.8
HP1/3
Hz60
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemBelt Drive Motor
Length Less Shaft8-1/4", 9 1/16 in
Max. Ambient Temp.60 Degrees C, 60 Degre.
Maximum Ambient Tempera.60? C
Motor ApplicationHVAC/R
Motor BearingsBall
Motor DesignCapacitor-Start
Motor Diameter5-5/8"
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel, Rolled Steel
Motor Mounting PositionAll Angle
Motor Mounting TypeCradle Base
Motor Service Factor1.15
Motor Shaft DesignFlat
Motor Shaft RotationCW/CCW
Motor Shell Length8-1/4"
Motor Sub ApplicationBelt Drive Fan/Blower
Motor Thermal ProtectionAuto
MountingCradle
Mounting Stud Pattern3-5/8" x 3-5/8", 3-5/8 .
Mpn4VAG5
Nameplate RPM1,725
No. of Speeds1
Nominal Efficiency57.5 %, 63.0%
Number of Speeds1
Overall Length10 13/16 in, 10-1/8"
Phase1, Single
Product TypeCapacitor Start
Resilient Ring Dia.2 1/4 in, 2-1/4"
Ring to Ring Center8", 8 7/16 in
RotationReversible
RPM1725
RPM Range1,701-1,800
Service Factor (SF)1.15
Shaft Dia.1/2", 1/2 in
Shaft Diameter1/2" Flatted
Shaft Length1-7/8", 1 7/8 in
Ship Weight17 lbs.
SKUZO-G2541612
StandardsUL Recognized (E47479),.
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
UPC190735335789
Voltage115/208-230V AC, 115/20.
Voltage Compatibility115/200-230V AC, 115/20.
Volts115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonUNKB007IBW1FG213.081In StockDAYTON213.08 @ 1
AmazonTPB007R809B8227.451In Stock3Dayton Electric Manufacturing Co.227.45 @ 1
thumbzoomZoroG2541612240.291In StockDayton18.0240.29 @ 1
grainger.caAOS4VAG5342.23992181In StockDAYTON16.7342.2399218 @ 1
thumbzoomsimsupply.comZO-G2541612361.02113Dayton361.02 @ 1
emotorpro.com4VAG5380.961In StockDayton17.0380.96 @ 1
thumbzoomsustainablesupply.comC1561963406.21In StockDayton19.81406.2 @ 1
thumbzoomRaptor SuppliesAD9UZL500.91917851In StockDAYTON500.9191785 @ 1
