Eaton E57G-18SNC5-Q

B01IWIF3H6

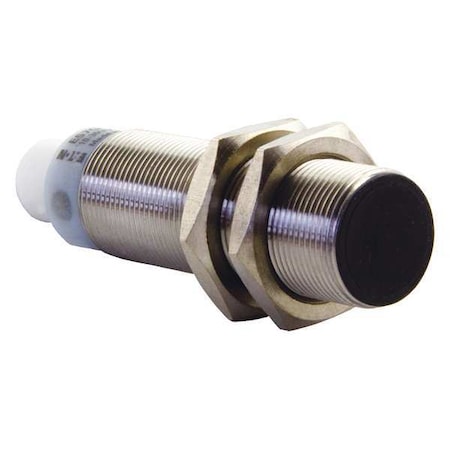

Proxswitch, 18Mm, Shielded, Npn, Nc, 4Pin

Proxswitch, 18Mm, Shielded, Npn, Nc, 4Pinzoom

Attributes

Key Value
ApprovalsCE;cULus
Basic Proximity Sensor .Metal
Body CompositionMetallic
Case MaterialStainless Steel
Connection Type4 Pin M12 Connector
Depth5 in
Description/Special Fea.Proximity Switch
Diameter18 MilliMeters
Family SeriesCutler Hammer, Div of E.
Gross Weight0 lbs
In StockNo
IP Rating67
ItemCylindrical Proximity S.
Item NumberE57G-18SNC5-Q
Length69 mm
Length (Straight Wirewa.69 mm
ManufacturerCutler Hammer, Div of E.
Manufacturer Part NumberE57G-18SNC5-Q
Max Leakage Current0.1 MilliAmps
Max Load Current0.1 Amps
Max. Current Load100mA
Max. Detecting Distance5 mm
NEMA Rating4X
Net Weight0.1 lbs
Nominal Voltage12 VDC;24 VDC
Number of Wires3
Operating Temp. Range-13 Degrees to 158 Deg.
Operating Voltage Range10~30 VDC
Output ModeNC
Output TypeNC NPN
Package Quantity1
Part NumberE57G-18SNC5-Q
Power TypeDC
Product SeriesE57G
Proximity Sensing MethodInductive
Proximity Sensor Diamet.18 mm
Proximity Sensor Electr.4 Pin Micro Connector
Proximity Sensor Operat.1,200 Hz
Proximity Sensor Output.3 Wire NPN
Proximity Sensor Power .10 to 30V DC
Proximity Sensor StyleCylindrical Proximity S.
Range5 MilliMeters
RoHSYes
Sensing TypeEnd
Shielded / UnshieldedShielded
ShieldingShielded
Short Circuit ProtectionYes
StandardsCE Compliance, cUL List.
Status IndicatorYes
Weld Field ImmuneNo
Width2 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG007625957.991In StockEaton0.1857.99 @ 1
GalcoE57G-18SNC5-Q96.271In StockCutler Hammer, Div of Eaton Corp0.196.27 @ 1
thumbzoomPlatt.com1287655109.111In StockEaton109.11 @ 1
thumbzoomcappusa.com4872889117.131In StockEaton117.13 @ 1
thumbzoomNewark45Y9962123.041In StockEATON CUTLER HAMMER123.04 @ 1
thumbzoommotorsandcontrol.comE57G-18SNC5-Q130.931In StockEaton Cutler Hammer130.93 @ 1
thumbzoomturtle.comCUH E57G-18SNC5-Q136.211In StockEaton136.21 @ 1
