- mpn09100022706
- brandname: HARTING
- manufacturername: HARTING

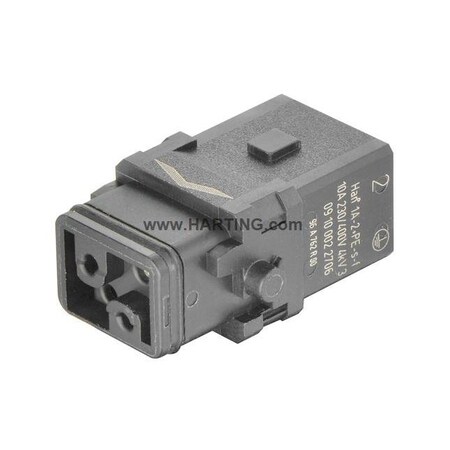

Female Screw Insert for Locking Lever, 2 + PE, Han 1A Series
- Brand: HARTING
- PartNumber: 09100022706
- Manufacturer: HARTING
- Label: HARTING
Attributes
| Key | Value |
|---|
| Application | Industrial Connectors |
| Approvals | DNV GL |
| Base Product Number | 09100022 |
| Case | size 1A |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connection Type | Screw |
| Connector | contact insert |
| Connector Gender | female |
| Connector pinout layout | 2+PE |
| Connector series | Han? 1A |
| Connector Type | Insert |
| Contact Finish | Silver |
| Contact Material | Copper Alloy, Silver Pl. |
| Contact Type | - |
| Current Rating | 10 A |
| Current Rating (Amps) | 10A |
| Electrical mounting | screw terminal |
| Family Name | Industrial Connectors H. |
| Gender | female |
| Housing Material | Polyamide (PA), Nylon, . |
| Includes Poles | Yes |
| Insert Color | Black |
| Insert Material | Polyamide |
| Insulation Resistance | 100000000 Ohms |
| IP Rating | IP20 |
| Item | Industrial Rectangular . |
| Kind of connector | female |
| Manufacturer | HARTING |
| Material Flammability R. | UL94 V-0 |
| Maximum Operating Tempe. | 90 Degrees C |
| Mfr | HARTING |
| Minimum Insulation Resi. | 1.00 x 10^8 ohm |
| Minimum Mating Cycles | 100 |
| Minimum Operating Tempe. | -30 Degrees C |
| Number of Contacts | 2 |
| Number of pins | 3 |
| Number of Poles | 2 |
| Number of Positions | 2+Ground, 2 ; 1 PE |
| Operating Temperature | -30?C ~ 90?C |
| Package | Bulk |
| Package Quantity | 1 |
| Pole Finish | Silver Plated |
| Pole Material | Copper Alloy |
| Product Status | Active |
| Series | Han? 1A, Han 1A Series,. |
| Size | 1A |
| Specification | EN 45545-2 R22: HL1,HL2. |
| Standards | China RoHS, DNV GL, ELV. |
| Temperature Range | -30 Degrees C to 90 D. |
| Termination | Screw |
| Termination Style | Screw |
| Type | Single Locking Lever |
| Type of connector | HDC |
| Voltage Rating | 250 V, 400V, 230V (Eart. |
| Weight | 13.300 g |
| Wire Size | 0.75 to 1.5 sq mm, 16-1. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Newark | 39AJ5757 | 1.83 | 1 | 49 | | HARTING | | 1.83 @ 1 |
 | TME | 09100022706 | 6.96 | 1 | In Stock | | HARTING | | 6.96 @ 1 |
 | Zoro | G205285988 | 7.75 | 1 | In Stock | | Harting | 0.5 | 7.75 @ 1 |
| Digi-Key | 13532258 | 9.66 | 1 | 180 | | HARTING | | 9.66 @ 1 |
| us.rs-online.com | 71818388 | 9.69 | 1 | 28 | | HARTING | 0.02926 | 9.69 @ 1 |
| RS Delivers | 188-1466 | 11.1 | 1 | 10 | | HARTING | | 11.1 @ 1 |
