Unknown NMR7S

B01N54HB08

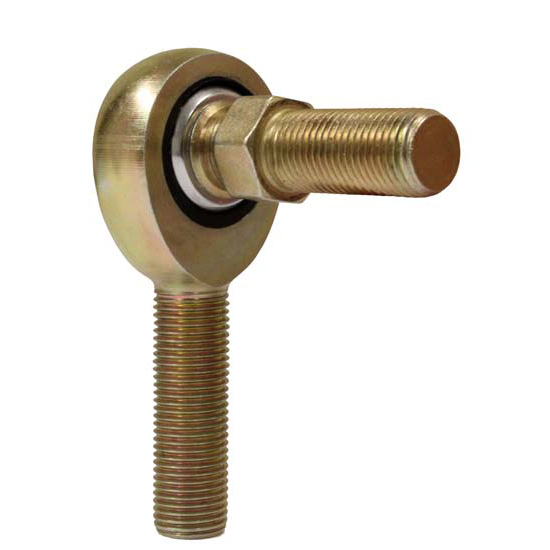

QA1 Precision Products NMR7S ROD END (N) ECON CARBONM-R 7/16-7/16 STUD

QA1 Precision Products NMR7S ROD END (N) ECON CARBONM-R 7/16-7/16 STUDzoom

Attributes

Key Value
ApplicationLow Load, Moderate Osci.
Ball52100 Steel Spherical
Ball Diameter0.812 in
Ball MaterialAlloy Steel
Ball Material Grade52100
Ball Stud Center Length1 3/4 in
Ball Stud MaterialCarbon Steel
Ball Stud Thread Direct.Right Hand
Ball Stud Thread Length7/8 in
Ball Stud Thread Size7/16"-20
Bore Diameter7/16 in
Bore Diameter Tolerance+0.0025/-0.0005 in
BrandQa1
Current Stock3
Dimension A7/16"-20
Dimension B0.688 in
Dimension C1.062 in
Dimension E1.125 in
Dimension G2.125 in
Dimension H1.375 in
Dimension J2.688 in
FinishZinc Plated
GTIN Code806990024343
Head Outside Diameter1 1/8 in
Head Width0.437 in
Hole Diameter0.438"
Housing MaterialCarbon Steel
Housing Material FinishChrome Plated
Inner Ring Width0.562 in
International ShippingNo
ItemSpherical Rod End
Lead TimeExpected to ship in 1-2.
Load Capacity5350 lbs.
Material TypeSteel
Maximum Ball Swivel14 Degrees
MFG. Part #NMR7S
MpnNMR7S
Overall Length2 11/16 in
Race MaterialNylon/PTFE
Resistance PropertiesCorrosion Resistant, Hi.
Rod End AttachmentMale Threads/Stud
Rod End Construction3-piece
Rod End Head Width0.562"
Rod End Misalign Angle14 degrees
Rod End TypeSpherical Rod End
Self Lubricating BearingYes
Shank Thread DirectionRight Hand
Shank Thread GenderMale
Shank Thread Length1 3/8 in
Shank Thread Size7/16"-20
SKUZO-G4426396
StandardsISO Certified 9001
Static Radial Load Capa.5,350 lbf
Stud Length1.062 in
SubCategoryPower Transmission
System of MeasurementInch
ThreadRight Hand
Thread Length1.375"
Thread Pitch7/16"-20
Thread Size7/16"-20
Thread TypeRH Male
TypeMale Studded
UPC806990024343

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Summit RacingQA1-NMR7S6.991In StockQA16.99 @ 1
thumbzoomspeedwaymotors.com721NMR7S6.991In StockQA16.99 @ 1
thumbzoomZoroG44263967.0917Qa10.257.09 @ 1
us.rs-online.com722118798.321In StockQA18.32 @ 1
Jegs122-NMR7S10.991In StockQA110.99 @ 1
motionindustries.com0646442713.211In StockQA1 Precision Products13.21 @ 1
thumbzoomsimsupply.comZO-G442639614.3613Qa114.36 @ 1
grainger.caGGF20F95114.929829421In StockQA10.2514.92982942 @ 1
thumbzoomsustainablesupply.comC166498915.181In StockQA10.2515.18 @ 1
AmazonSCB0095K9GYM15.321In StockQA115.32 @ 1
thumbzoomRaptor SuppliesAB4UYC22.58164351In StockQA122.5816435 @ 1
