Ruland MOSC41-10-A

mpnMOSC41-10-A
brandname: Ruland
manufacturername: Ruland

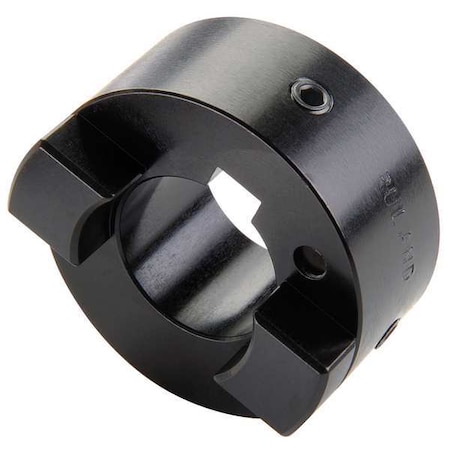

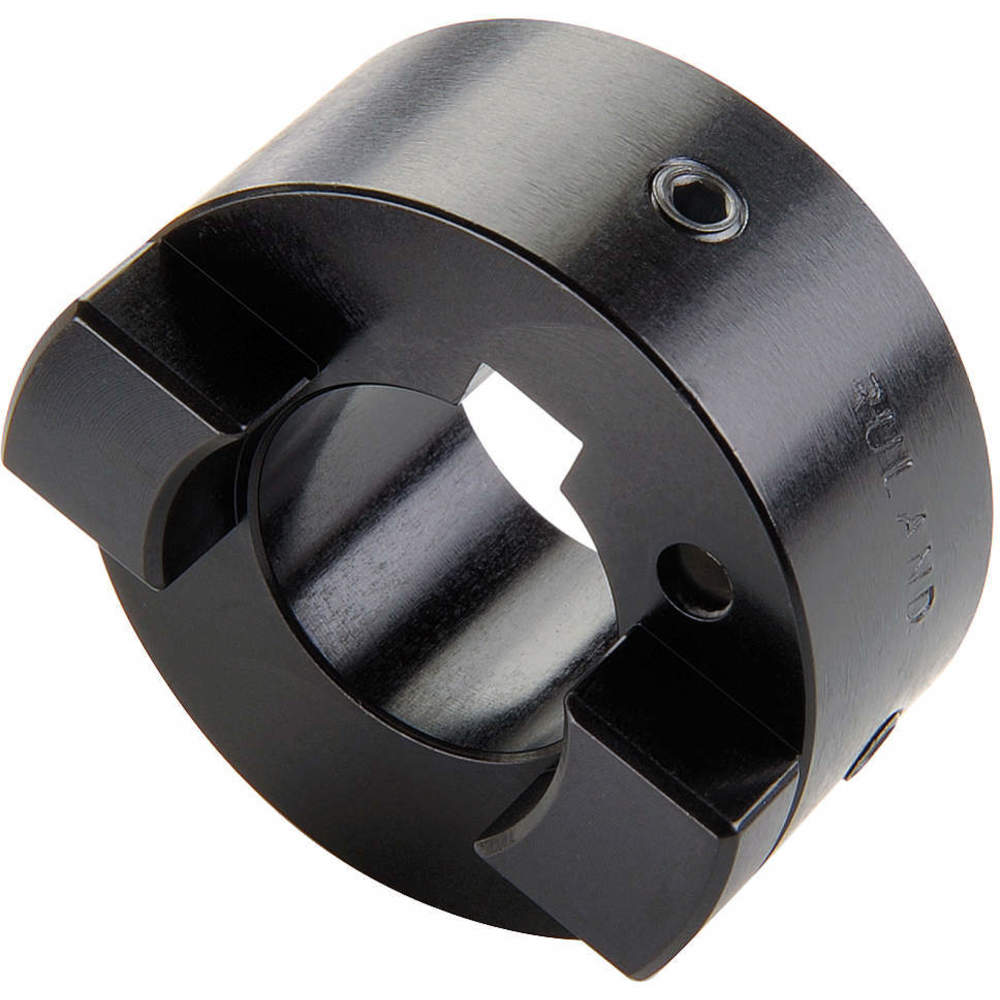

Ruland MOSC41-10-A Oldham Coupling Hub with Keyway, Set Screw Style, Black Anodized Aluminum, 10mm Bore, 41.3mm OD, 50.8mm Length, 3mm Keyway

Ruland MOSC41-10-A Oldham Coupling Hub with Keyway, Set Screw Style, Black Anodized Aluminum, 10mm Bore, 41.3mm OD, 50.8mm Length, 3mm Keyway

zoom

Brand: Ruland
PartNumber: MOSC41-10-A
Model: MOSC41-10-A
PackageQuantity: 1
Binding: Misc.
Manufacturer: Ruland
Label: Ruland

Attributes

Key	Value
Assembled Coupling Leng.	50.8 mm
Bore (B1)	10 mm
Bore Dia.	10 mm
Clearance Dia. (In.)	1.625 in
Clearance Dia. (mm)	41.3
Country of Origin (subj.	United States
Finish	Black Anodized
Hub Dia.	41.3mm
Item	Motion Control Coupling.
Item - Oldham Coupling .	Oldham Coupling Hub
Keyway (K1)	3 mm
Keyway (K2)	3 mm
Keyway (mm)	3 mm
Length (L)	50.8 mm
Length through Bore (In.	0.71 in
Length through Bore (mm)	18 mm
Material	Aluminum
Material - Hubs	Aluminum
Max. RPM	4,500 RPM
Max. Temp. Range (F)	Acetal Disk 150 Degrees.
Outer Diameter (OD)	1.625 in (41.3 mm)
Outside Dia.	41.3 mm
Outside Dia. (In.)	1.625
Outside Dia. (mm)	41.3
Overall Length (In.)	0.71 in
Overall Length (mm)	18 mm
Screw Size (mm)	M5
Screw Type	Set Screw
Setscrew Location	2 (90 Degrees )
Shaft Locking Type - Co.	1 Piece Set Screw
Size	MOSC41
Small Bore (B2)	10 mm
Style	Oldham Set with Keyway
With Keyway / Without K.	With Keyway

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G7905886	33.0	1	In Stock	15	Ruland	0.19	33.0 @ 1
	Ruland	MOSC41-10-A	44.51	1	In Stock		Ruland		44.51 @ 1
	motionindustries.com	04805766	60.87	1	In Stock		Ruland Manufacturing Co Inc		60.87 @ 1
	Raptor Supplies	AF9WRQ	77.5552635	1	In Stock		RULAND MANUFACTURING		77.5552635 @ 1
