CAI - SQUARE D QOB2801021

B07J665236

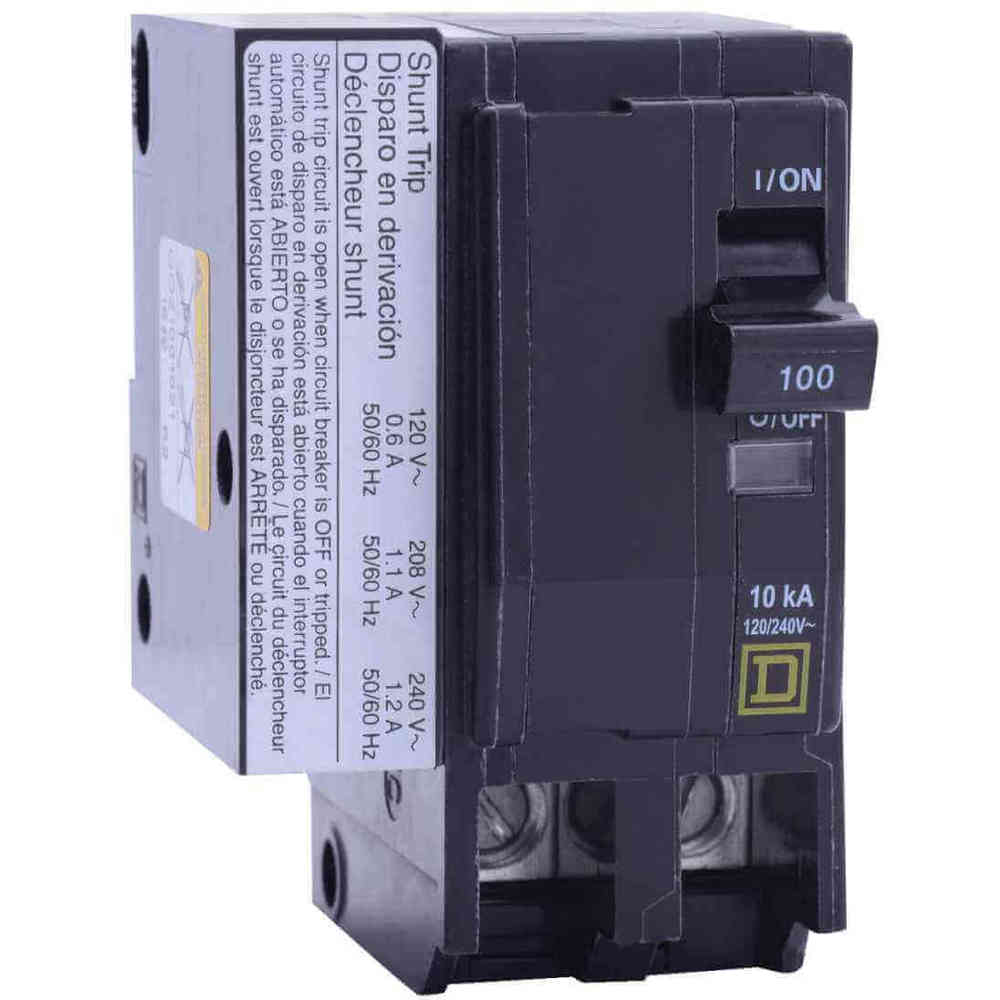

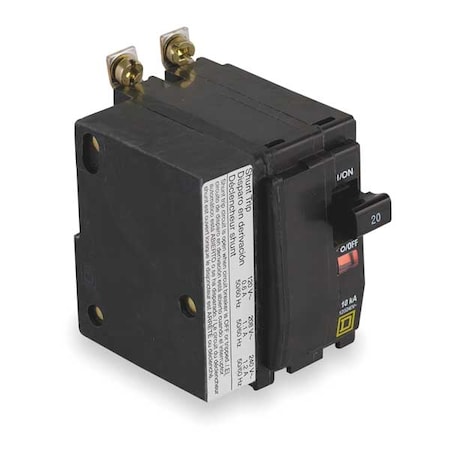

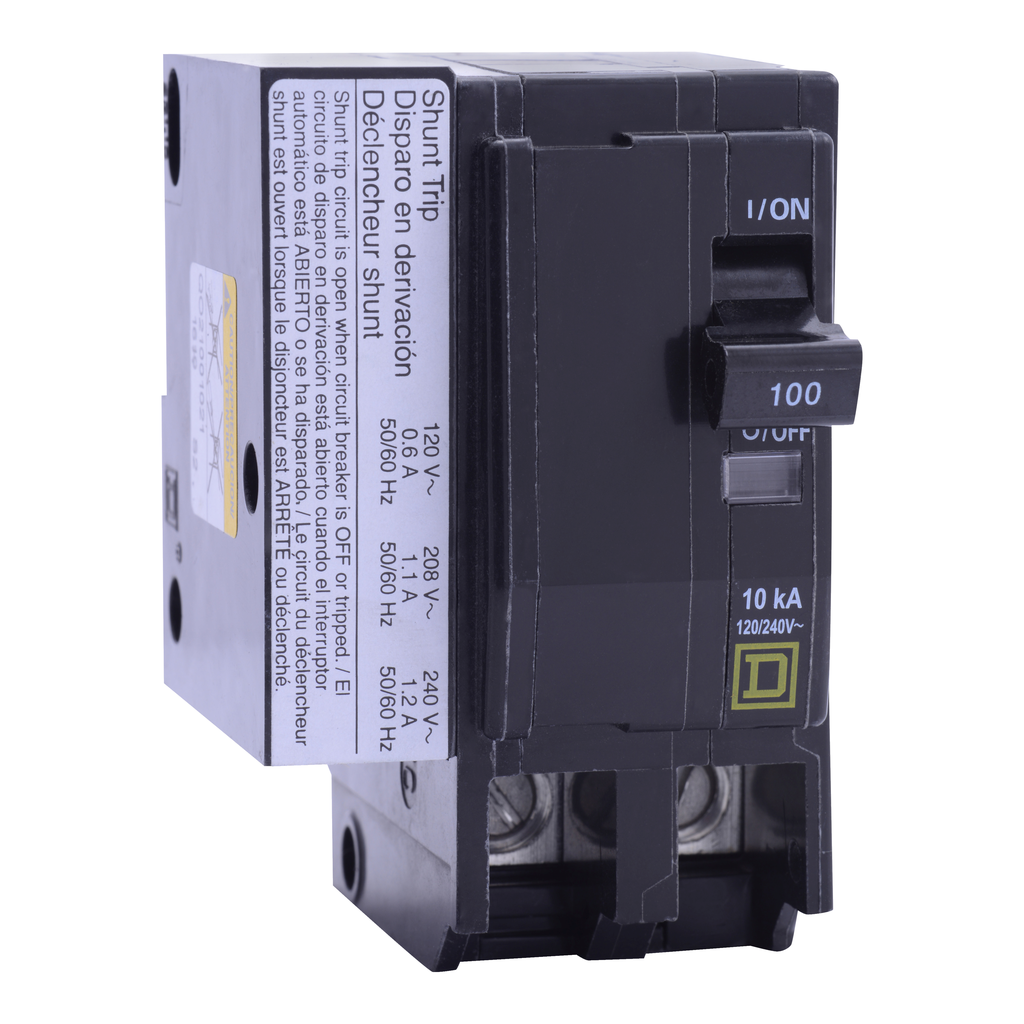

Square D Bolt On Circuit Breaker, 80 Amps, Number of Poles: 2, 240VAC AC Voltage Rating

Square D Bolt On Circuit Breaker, 80 Amps, Number of Poles: 2, 240VAC AC Voltage Ratingzoom

Attributes

Key Value
[Ue] Rated Operational .120/240 V AC || 120 V AC
AC Voltage Rating120/240V AC
Accessory / Separate Pa.shunt trip 120/208/240 .
Ambient Air Temperature.40 ?C
Amperage Rating80
Amps80 A
ApplicationHACR rated
Awg GaugeAWG 4...AWG 2/0 copper .
BrandSquare D by Schneider E.
Breaking Capacity10 kA 120/240 V AC 50/6.
California Proposition .Cadmium and cadmium com.
Catalog NumberQOB2801021
China Rohs RegulationProduct out of China Ro.
Circuit Breaker ActuatorPaddle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.Bolt On
Circuit Breaker TypeShunt Trip, standard
Compatible Panelboard/L.QO
ConnectionBox lugs;AWG 4...AWG 2/.
Country of OriginMexico
Country of Origin (subj.Mexico
DC Voltage Rating48V DC
Depth2.91 in, 74 mm
Electrical Connectionbox lugs
Eu Rohs DirectiveCompliant
For Use WithSquare D NQOD Panelboar.
Frame Size100A/QO
Halogen Content Perform.Halogen free product
Height89 mm
Interrupt Rating10?kA 120/240 V AC 50/6.
ItemMiniature Circuit Break.
Item TypeShunt trip 120/208/240 .
Length3.5 in, 2.91
Length (Straight Wirewa.3.5 in
Length UOMInch
Line Rated Current80 A
Made in USANo
ManufacturerSchneider Electric
MaterialFIBERGLASS FILLED THERM.
Max. AIR Rating10kA at 120/240V AC
Max. Operating Temp.104 Degrees F
Max. Wire Size2 AWG
Mercury FreeYes
Min. Operating Temp.104 Degrees F
Min. Wire Size4 AWG
MountingBolt On
Mounting Modebolt-on
Net Weight0.463 kg
Number of Poles2
Number Of Spaces Requir.3
Operating TemperatureCALIBRATED FOR USE AT 4.
Phase1, Single
Poles Description2P
Product CertificationsUL Listed || CSA
Product Or Component Ty.miniature circuit-break.
Range Of ProductQO
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesQOB
Special FeaturesSTANDARD BOLT-ON
StandardUL LISTED - CSA CERTIFI.
StandardsCSA, UL Listed
Sub BrandQO
Sustainable Offer StatusGreen Premium product
Terminal ConnectionLug
Tightening Torque5-5 N.m 10-25 mm? (AWG .
UPC785901157458
Voltage Rating120/240 V AC;120 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width2.25 in, 57 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB00CONM04U259.991In StockSchneider Electric259.99 @ 1
thumbzoomgordonelectricsupply.comQOB2801021378.01In Stock10SQUARE D378.0 @ 1
us.rs-online.com74707116390.951In StockSquare D390.95 @ 1
thumbzoomRadwellQOB2801021410.01In StockSCHNEIDER ELECTRIC SQUARE D410.0 @ 1
thumbzoommayerelectric.comSQDQOB2801021410.631In StockSQUARE D1.0186410.63 @ 1
thumbzoomZoroG2690484432.01In Stock77Square D1.0432.0 @ 1
thumbzoomsustainablesupply.comC1179841495.551In StockSquare D1.0495.55 @ 1
thumbzoomcrescentelectric.com450167503.321In StockSquare D by Schneider Electric503.32 @ 1
thumbzoomRaptor SuppliesAF9HBK580.34041651In StockSQUARE D580.3404165 @ 1
simplybreakers.comQOB2801021628.991In StockSchneider Electric628.99 @ 1
