- mpnWD7P2D
- brandname: U.S. Motors
- manufacturername: U.S. Motors

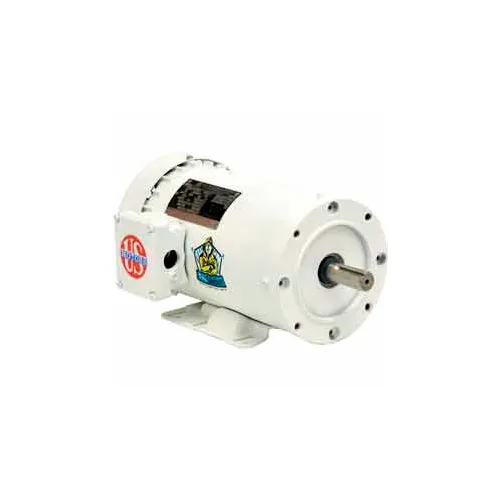

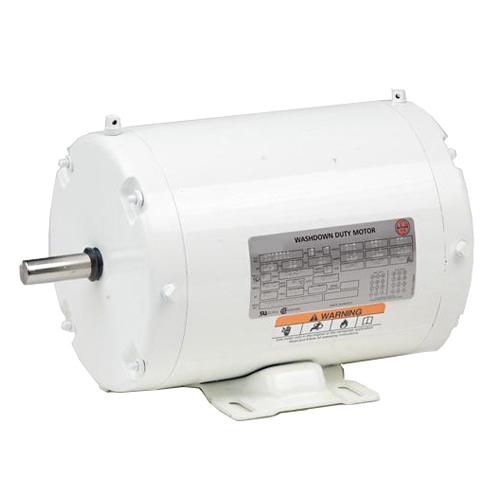

US Motors (Nidec) WD7P2D General Purpose Washdown Duty Motor (Painted) - General Purpose Motor (Painted), 7-1/2 hp, 3 ph, 1800 rpm, 208-230/460 V
- Brand: US Motors (Nidec)
- PartNumber: WD7P2D
- Manufacturer: US Motors (Nidec)
- Label: US Motors (Nidec)
Attributes
| Key | Value |
|---|
| Amps | 20-18.2/9.1 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Efficiency | 91.7% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 128.70 |
| Family Series | US Motors Motors |
| FL Amps | 20-18.2/9.1 |
| FL Efficiency | 91.7 |
| Frame | 213T |
| Frequency | 60 Hz |
| Gross Weight | 117 lbs |
| Hertz | 50, 60 |
| Horsepower | 7-1/2 hp, 7-1/2 |
| HP | 7-1/2, 7.5 |
| Hz | 50/60 |
| Insulation Class | F |
| Item | Motor,3PH,7.5HP,1800,20. |
| Item Number | WD7P2D |
| Kilowatts | 5.6 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | DD56 |
| Manufacturer Part Number | WD7P2D |
| Maximum Ambient Tempera. | 40? C |
| Model Number | DD56 |
| Motor Type | Three Phase Premium Eff. |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| Name Plate RPMs | 1765 |
| NEMA Frame | 213T |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Part Number | WD7P2D |
| Phase | 3 |
| Product Type | Washdown Duty, Three Ph. |
| Rotation | Reversible |
| RPM | 1,765 RPM, 1765 |
| Service Factor | 1.15 |
| Ship Weight | 117 lbs. |
| Speed (RPM) | 1765 |
| Thermal Protection Rati. | None |
| Type of Enclosure | TEFC |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0406960 | 1285.0 | 1 | In Stock | | U.S. Motors | 117.0 | 1285.0 @ 1 |
 | Global Industrial | WBB466094 | 1430.0 | 1 | In Stock | 15 | US Motors | | 1430.0 @ 1 |
 | emotorpro.com | WD7P2D | 1553.53 | 1 | In Stock | | U.S. Motors | 117.0 | 1553.53 @ 1 |
 | National Supply Network | B466094 | 1580.79 | 1 | In Stock | | US MOTORS | | 1580.79 @ 1 |
 | motorsandcontrol.com | WD7P2D | 1634.21 | 1 | In Stock | | US Motors (Nidec) | 128.7 | 1634.21 @ 1 |
 | Galco | WD7P2D-USM | 1634.22 | 1 | In Stock | | US Motors | 117.0 | 1634.22 @ 1 |
 | bscsource.com | WD7P2D | 2312.09 | 1 | In Stock | | US Motors | | 2312.09 @ 1 |
 | Guardian | 86090032 | 2575.79 | 1 | In Stock | | US Motors | | 2575.79 @ 1 |
| motionindustries.com | 04487532 | 3045.37 | 1 | In Stock | | US Motors (Nidec) | | 3045.37 @ 1 |
