ANALOG DEVICES AD7841ASZ

B00AZVLY9U

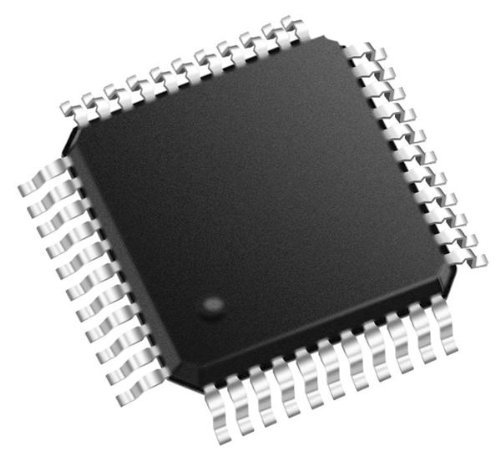

AD7841ASZ, DAC 8-CH R-2R 14-bit 44-Pin MQFP Tray

AD7841ASZ, DAC 8-CH R-2R 14-bit 44-Pin MQFP Trayzoom

Attributes

Key Value
Alternate Part No.584-AD7841ASZ
ArchitectureR-2R
Base Product NumberAD7841
BrandAnalog Devices
CategoryIntegrated Circuits (IC.
Data InterfaceParallel
DescriptionIC DAC 14BIT V-OUT 44MQ.
Detailed Description14 Bit Digital to Analo.
Development KitEVAL-AD7841EBZ
Differential OutputNo
Digi-Key Part NumberAD7841ASZ-ND
DigiKey ProgrammableNot Verified
INL/DNL (LSB)?4 (Max), -0.9/+2 (Max)
Integral Non-linearity4 LSB
Interface TypeParallel
ManufacturerAnalog Devices Inc.
Manufacturer Part No.AD7841ASZ
Manufacturer Product Nu.AD7841ASZ
Manufacturer Standard L.13 Weeks
Maximum Operating Tempe.+ 85 C
Maximum Power Dissipati.303 mW
MfrAnalog Devices Inc.
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Bits14
Number of Converters8
Number of D/A Converters8
Operating Temperature-40?C ~ 85?C
Output TypeVoltage - Buffered, Vol.
PackageTray
Package / Case44-QFP
Package/CaseQFP-44
PackagingTray
Part StatusActive
Product CategoryDigital to Analog Conve.
Product StatusActive
Reference TypeExternal
Resolution14 bit
Sampling Rate32 kSPs
Series-, AD7841
Settling Time31?s (Typ), 31 us
Supplier Device Package44-MQFP (10x10)
Supply Voltage - Max16.5 V
Supply Voltage - Min13.5 V
Voltage - Supply, Analog?13.5V ~ 16.5V
Voltage - Supply, Digit.5V
Voltage ReferenceExternal

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance ElectronicsAD7841ASZ19.351In StockAnalog Devices19.35 @ 1
HotendaH239146051.781In StockAnalog Devices, Inc.51.78 @ 1
AmazonTPB00AZVLY9U73.031In Stock2Analog Devices73.03 @ 1
thumbzoomswatee.comAD7841ASZ77.961103Analog Devices Inc.77.96 @ 1
thumbzoomDigi-Key75110086.7961In StockAnalog Devices Inc.86.796 @ 1
thumbzoomNewark49AK952094.18131ANALOG DEVICES94.18 @ 1
