- mpnYAD4CM5E10
- brandname: Burndy
- manufacturername: Burndy

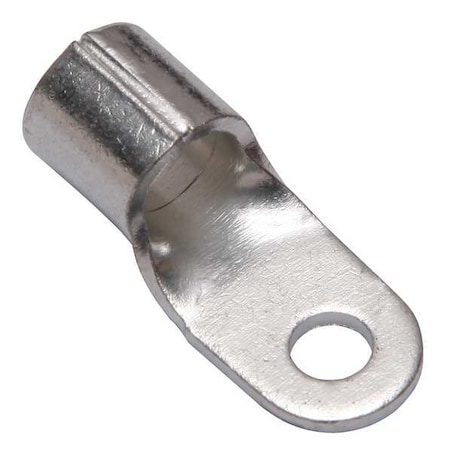

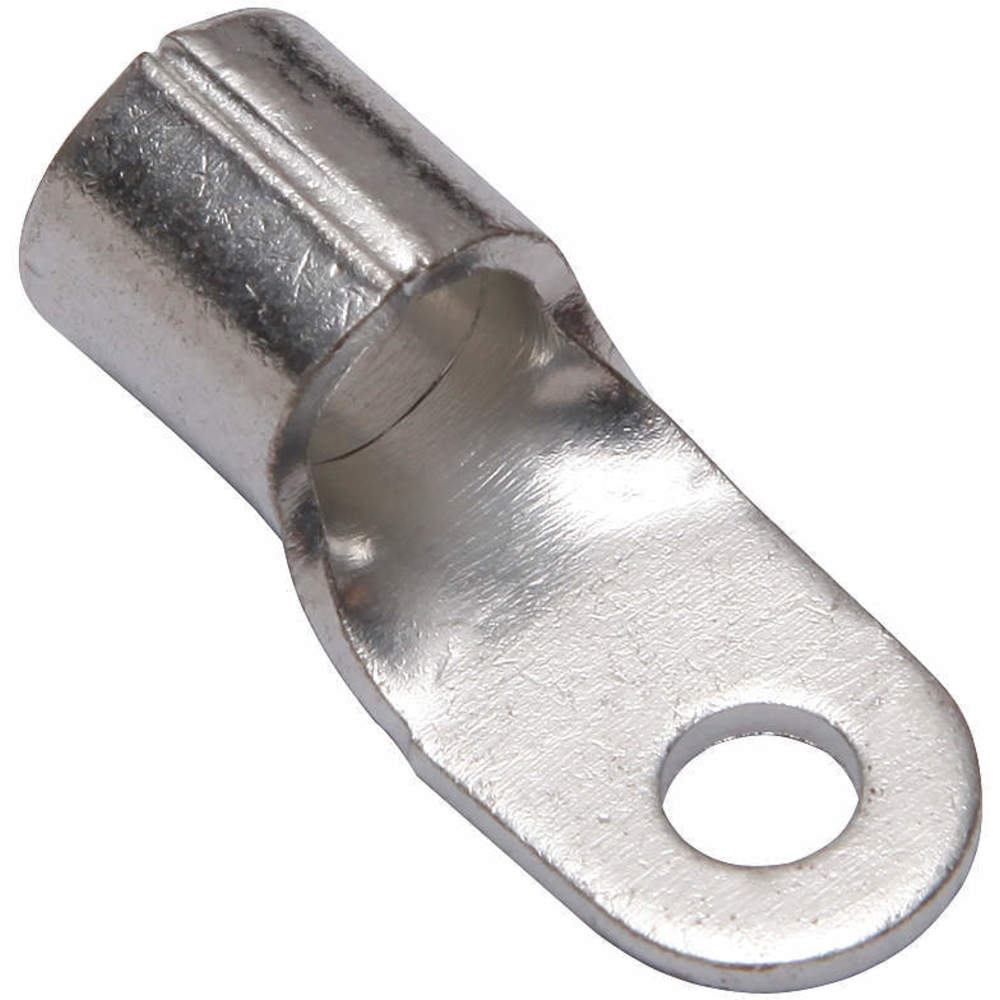

One Hole Lug Compress Conct, 4 AWG, PK5
- Brand: Burndy
- PartNumber: YAD4CM5E10
- Model: YAD4CM5E10
- PackageQuantity: 1
- Manufacturer: BURNDY
- Label: BURNDY
Attributes
| Key | Value |
|---|
| Application | The YAD uninsulated OEM. |
| Barrel Length | 0.43 in |
| Barrel Outside Diameter | 0.41 in |
| Barrel Size | Long |
| Barrel Style | Brazed |
| Brand | Burndy |
| Cable Size | 4 AWG |
| Certification - CSA App. | No |
| Certification - cULus | No |
| Certification - UL Reco. | No |
| Color | Silver |
| Color Code | None |
| Compatible Grainger Par. | 22P219, 22P221 |
| Compatible with Product. | Code, Flex Cable |
| Compatible with Series | PAT4PC834, PAT750, PAT8. |
| Conductor - Copper Str . | 4 AWG |
| Conductor Size | 4 AWG |
| Connection Material | Tin Plater Copper |
| Connector Type | Terminal, YAD |
| Contact Finish | Tin |
| Contact Material | Copper |
| Current Stock | 97 |
| Die Code | 1017 |
| Dimension - B Length in. | 0.43 in |
| Dimension - Bolt Size f. | #10 |
| Dimension - Hole Size i. | 0.21 in, 0.21 in 0.26 in |
| Dimension - L Length Ov. | 31 mm |
| Dimension - Length Over. | 1.22 in |
| Dimension - Outside Dia. | 0.41 in |
| Dimension - Pad Width i. | 0.47 in |
| Dimension - Strip Lengt. | 1 to 2, 1/2 |
| Dimension - Stud Size i. | #10, 1/4 #10 |
| Family Series | Burndy Terminals |
| Feature - Barrel Type | Long |
| For Wire Size | 4 AWG |
| For Wire Sizes | 4 AWG to 4 AWG |
| Gross Weight | 0.001 lbs |
| Hole Center to End | 0.980" |
| Hole Diameter | 0.21 in |
| Hole Spacing | 0.45 in |
| Industry Standard(s) | UL467 |
| Insulation | None |
| Insulation Color | Bare |
| Insulation Colour | Bare |
| Insulation Coverage | None |
| Insulation Material | None |
| Insulation Type | Non-Insulated |
| International Shipping | No |
| Item | Uninsulated Compression. |
| Item Number | YAD4CM5E10 |
| Item Type | 3B |
| Lead Time | Expected to ship in 1-2. |
| Length | 1.22" |
| Manufacturer | Burndy |
| Manufacturer Part Number | YAD4CM5E10 |
| Material | Copper, Electrolytic Co. |
| Material/Composition | Copper |
| Max Conductor Range | 4 AWG |
| Max. Temp. | 302 Degrees F |
| Max. Voltage | 600 V |
| Maximum Operating Tempe. | 302 Degrees F |
| Maximum Voltage | 600V, 600 V |
| Maximum Wire Size | 4 AWG |
| Min Conductor Range | 4 AWG |
| Minimum Operating Tempe. | 302 Degrees F, 302 Deg. |
| Minimum Wire Size | 4 AWG |
| Mpn | YAD4CM5E10 |
| Net Weight | 0 lbs |
| Number of Holes | 1 |
| Overall Length | 1.22 in |
| Peep Hole | No |
| Physical Attribute - To. | Ring |
| Plate Material | Tin |
| Plated | Y |
| Plating Type | Tin |
| Ring Width Ranges | 0.26 - 0.50 inches |
| RoHS Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| SKU | ZO-G6218107 |
| Special Features | Durable Long Lasting Co. |
| Standards | UL 467 |
| Standards - Industry St. | UL467 |
| Standards - RoHS Compli. | NC |
| Strip Length | 1/2 in |
| Stud Size | #10 |
| SubCategory | Electrical |
| Terminal Shape | Ring Tongue |
| Termination | Crimp Termination Only |
| Termination Style | Crimp |
| Tongue Length | 0.79 in |
| Tongue Style | Ring |
| Tongue Thickness | 0.06 in |
| Tongue Width | 0.47 in |
| Tongue Width - Wire Con. | 0.47 in |
| Trade Name | HYLUG? |
| Type | Ring Tongue |
| UL Listed | No |
| UPC | 781810668634 |
| Voltage - Maximum | 600 V |
| Width | 0.47" |
| Wire Range | 4 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| steinerelectric.com | 954964 | 1.99 | 1 | 5 | | BURNDY | | 1.99 @ 5 |
 | Megadepot | YAD4CM5E10 | 2.06 | 1 | 5 | | Burndy | | 2.06 @ 5 |
 | usmegastore.com | YAD4CM5E10 | 2.06 | 1 | 5 | | Burndy | | 2.06 @ 5 |
| us.rs-online.com | 71730982 | 2.64 | 100 | 5 | | BURNDY | | 2.64 @ 100 |
 | Galco | YAD4CM5E10-BURN | 2.83 | 100 | 5 | | Burndy | 0.001 | 2.83 @ 100 |
 | Zoro | G6218107 | 10.29 | 1 | 212 | | Burndy | 0.09 | 10.29 @ 5 |
| grainger.ca | WWG30XT29 | 13.26047562 | 1 | 5 | | BURNDY | 0.09 | 13.26047562 @ 5 |
 | simsupply.com | ZO-G6218107 | 18.27 | 1 | 97 | | Burndy | | 18.27 @ 5 |
 | Raptor Supplies | AF9ZTK | 19.486584 | 1 | 5 | | BURNDY | | 19.486584 @ 5 |
