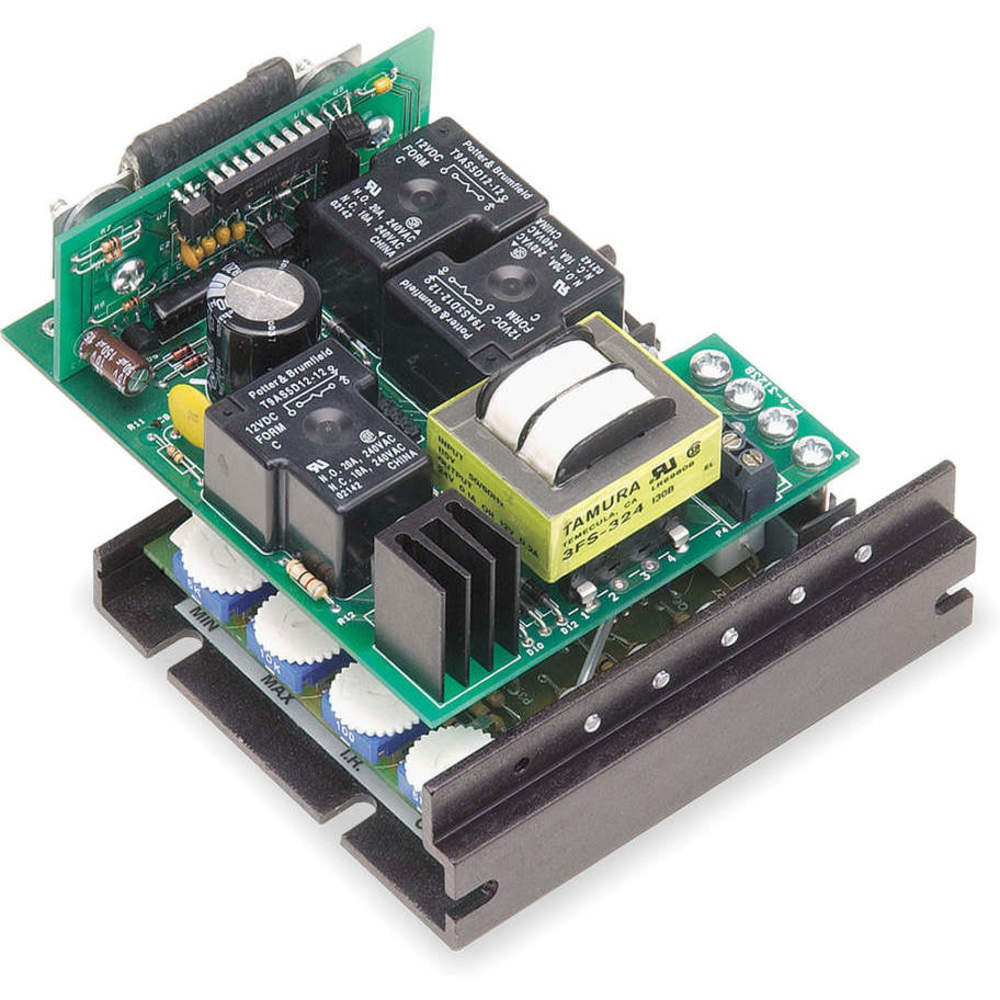

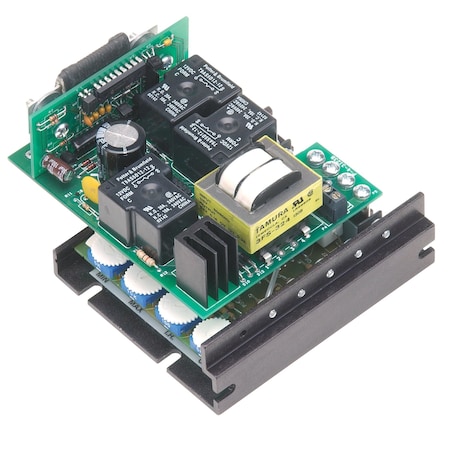

Dart Controls 130LC12

mpn130LC12
brandname: Dart Controls
manufacturername: Dart Controls

DC Speed Control, 90VDC, 1.2A

DC Speed Control, 90VDC, 1.2A

zoom

Brand: Dart Controls
PartNumber: 130LC12
PackageQuantity: 1
Binding: Misc.
Manufacturer: DART CONTROLS
Label: DART CONTROLS

Attributes

Key	Value
AC Input Voltage	120 VAC, 120V AC
Accepts Tach Feedback	No
Approvals	cUL, UL
Brand	Dart Controls
Current Stock	3
Current/Torque Limit	Adjustable
DC Speed Control	SCR
Depth	2.65 in
Dynamic Braking	Yes
Enclosure	Chassis
Enclosure Type	Open
External Switches	None
Family Series	Dart Controls Drives, 1.
Feedback Types	Armature
Follower Circuit	No
For Use With	PM and Shunt Wound DC M.
Gross Weight	1.46 lbs
Height	6.25 in
Higher Voltage Motor Ou.	90 V DC
Input Current (AC)	1.2-2 A
Input Phase	1
Input Voltage (AC)	108-132 VAC
International Shipping	No
IR Compensation	Adjustable
Item	DC Speed Control, DC Va.
Item Number	130LC12
Lead Time	Expected to ship in 1-2.
Linear Acceleration	Fixed 0.5 sec
Lower Voltage Motor Out.	90 V DC
Manufacturer	Dart Controls
Manufacturer Part Number	130LC12
Max Armature Current (D.	0.8-1.2 A
Max HP @ 90 VDC Armature	0.125 hp
Max. Amps	1.2 A
Maximum Current	1.2 A
Maximum Linear Accelera.	0.5 sec
Mount Type	Chassis
Mpn	130LC12
Net Weight	1.46 lbs
Nominal Armature VDC	90 VDC
Operating Temperature	-10 Degrees to 45 Degr.
Operator Controls	Not Available
Output Armature Voltage.	90 VDC
Output Field Current (D.	1 A
Output Field VDC	100 VDC
Overall Depth	4.06 in
Overall Height	7 in
Overall Width	6.25 in
Package	Chassis
Product Series	130
Regen	No
Rotation	Reversible, Reversable
Series	Series 130
Shunt Wound Voltage	100V DC
Shunt Wound Volts	100V DC
SKU	ZO-G1598895
Speed Range	50:1
Speed Regulation	+/-1%, +/-1% with Armat.
Standards	cULus Listed
SubCategory	Motors
Temperature Range (F)	14-113 ?F
Voltage Output	0 to 90VDC, 90V DC
Width	3.75 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1598895	279.2	1	13		Dart Controls	1.65	279.2 @ 1
	sustainablesupply.com	C1563767	283.86	1	In Stock		Dart Controls	1.65	283.86 @ 1
	Walker Industrial	130LC12	299.14	1	In Stock		Dart Controls		299.14 @ 1
	Galco	130LC12-DART	299.14	1	In Stock		Dart Controls	1.46	299.14 @ 1
	simsupply.com	ZO-G1598895	330.51	1	3		Dart Controls		330.51 @ 1
	grainger.ca	WWG5HA32	368.7915814	1	In Stock		DART CONTROLS	1.65	368.7915814 @ 1
	Raptor Supplies	AE4ACF	505.0980675	1	In Stock		DART CONTROLS		505.0980675 @ 1
