Dayton 2ZXJ2

mpn2ZXJ2
brandname: Dayton
manufacturername: Dayton

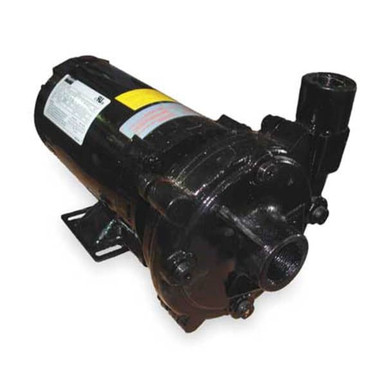

Dayton 2ZXJ2 Centrifugal Pump, 1/2 HP, 3Ph, 230/460V

Brand: Dayton
PartNumber: 2ZXJ2
Model: 2ZXJ2
PackageQuantity: 1
Manufacturer: DAYTON
Label: DAYTON

Attributes

Key	Value
Best Efficiency Flow	29 gpm
Best Efficiency Head	47 ft
Brand	Dayton
Compatible Discharge Pi.	1 in
Compatible Intake Pipe .	1 1/4 in
Compatible with Media T.	Non-Flammable Liquids
Current Stock	4
Discharge Rotation	90 Degrees Increments
Discharge Type	NPT
Duty Cycle	Continuous
Features	Continuous High Pressur.
Feet of Head (Minimum)	10 ft
Flow Rate @ 10 ft of He.	42 gpm
Flow Rate @ 20 ft of He.	39 gpm
Flow Rate @ 30 ft of He.	36 gpm
Flow Rate @ 40 ft of He.	32 gpm
Flow Rate @ 50 ft of He.	28 gpm
Flow Rate @ 60 ft of He.	21 gpm
Flow Rate @ 70 ft of He.	15 gpm
Frequency	60 Hz
Height	8 1/2 in
Horsepower	1/2 hp
Housing Material - Pumps	Cast Iron
HP - Pumps	1/2 hp
Impeller Design	Closed
Impeller Material	Cast Iron
Includes	Manual
Inlet Size - Pumps	1-1/4 in NPT
Intake and Discharge Si.	1 1/4 in , 1 in
Intake Type	NPT
International Shipping	No
Item	Centrifugal Pump
Length	14 3/4 in
Length (Straight Wirewa.	14 3/4 in
Manufacturer Warranty L.	1 yr
Manufacturers Warranty .	1 yr
Max. Dia. Solids	5/16 in
Max. Head	82 ft
Max. Pressure - Pumps	35 psi
Maximum Feet of Head	70 ft
Maximum Media Temperatu.	200 Degrees F
Maximum RPM	3,450 RPM
Motor Enclosure	Open Dripproof
Motor Enclosure - Pumps	Open Dripproof
Motor Frame Designation	56J
Motor Type	ODP
Mpn	2ZXJ2
Nameplate Voltage	208-230/460V AC
Outlet Size - Pumps	1 in NPT
Overall Height	8.5 in
Overall Length	14.7 in
Overall Width	7.9 in
Phase	Three
Phase - Pumps	3
Prop 65	WARNING: Cancer and Rep.
Pump Housing Material	Cast Iron
Pumping Application	Aggressive Liquid Appli.
Seal Material	Viton
Seal Type	Mechanical
Shaft Material	Stainless Steel
Shut Off Pressure (Maxi.	35 psi
SKU	ZO-G1245343
Solid Diameter (Maximum)	0.31 in
Specific Gravity (Maxim.	1
Standards	UL Approval in Motor
SubCategory	Pumps
UPC	190735242476
Voltage - Pumps	208 to 240/480V AC
Wetted Material	Carbon, Cast Iron, Cera.
Width	8 in
