- mpn2ZXK2
- brandname: Dayton
- manufacturername: Dayton

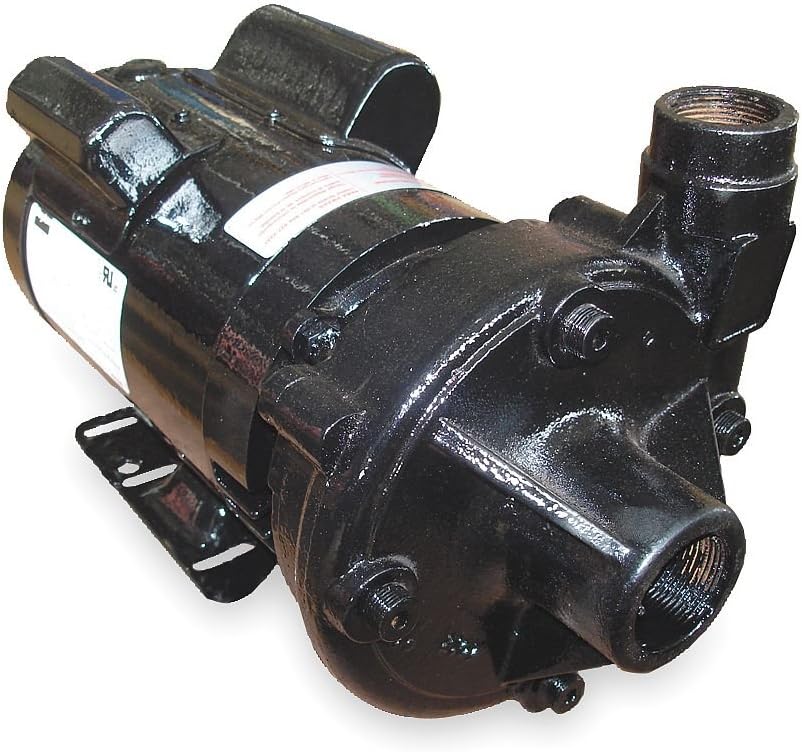

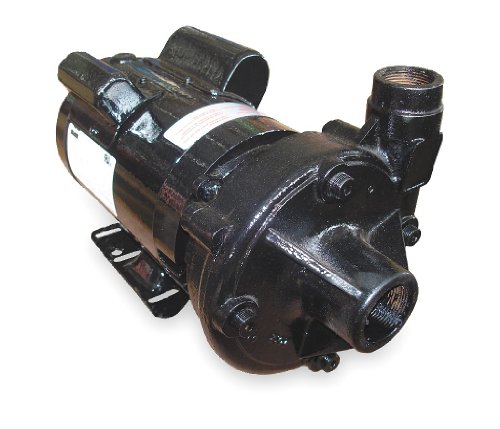

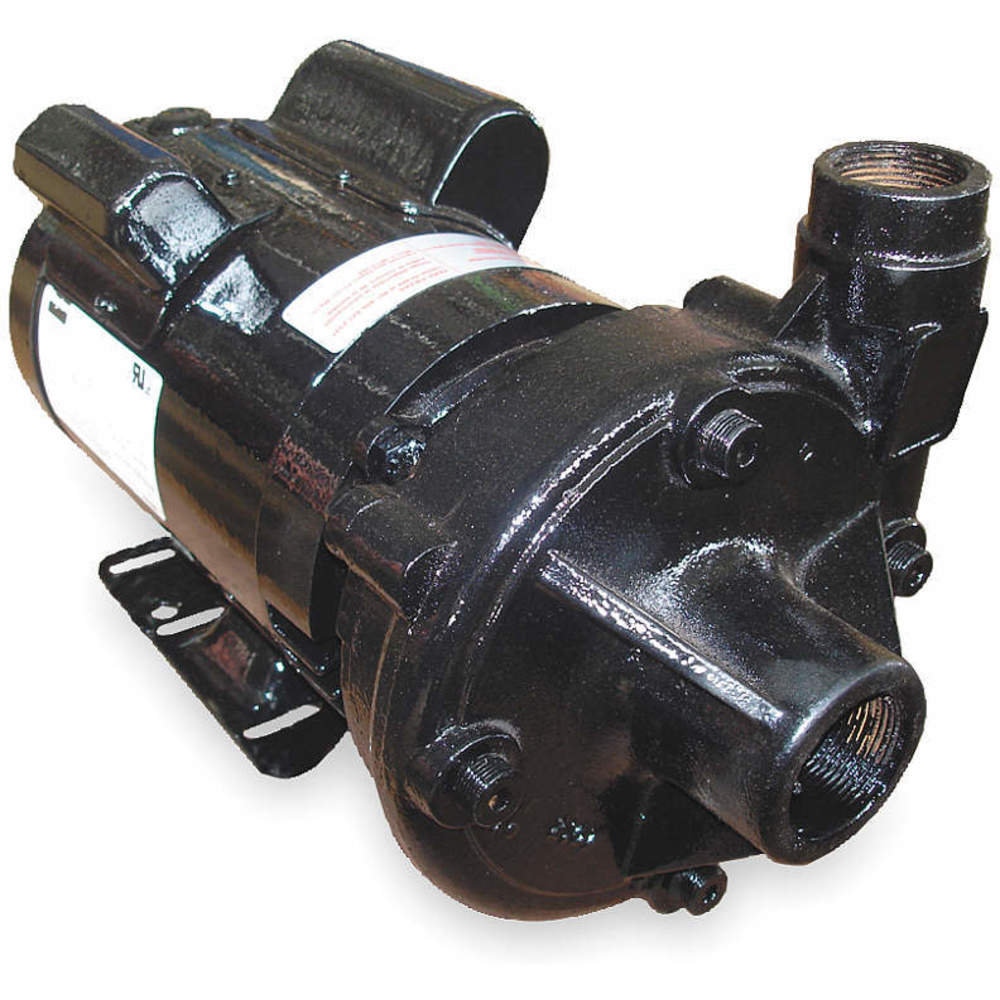

Pump,3 HP,1 Ph,240VAC
- Brand: Dayton
- PartNumber: 2ZXK2
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: DAYTON
- Label: DAYTON
Attributes
| Key | Value |
|---|
| Agency Compliance | UL Approval in Motor |
| Amps | -/12.5 |
| ASIN | B071X36NJK |
| Batteries Required? | No |
| Bearing Type | Ball |
| Best Efficiency Flow | 95 gpm |
| Best Efficiency GPM @ H. | 95 @ 57 ft |
| Best Efficiency Head | 57 ft |
| Brand | Dayton |
| Compatible Discharge Pi. | 1 1/4 in |
| Compatible Intake Pipe . | 1 1/2 in |
| Compatible with Media T. | Non-Flammable Liquids |
| Current Stock | 2 |
| Discharge Rotation | 90 Degrees Increments |
| Discharge Type | NPT |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Features | Continuous High Pressur. |
| Feet of Head (Minimum) | 10 ft |
| Flow Rate @ 10 ft of He. | 107 gpm |
| Flow Rate @ 100 ft of H. | 43 gpm |
| Flow Rate @ 120 ft of H. | 17 gpm |
| Flow Rate @ 20 ft of He. | 103 gpm |
| Flow Rate @ 30 ft of He. | 98 gpm |
| Flow Rate @ 40 ft of He. | 92 gpm |
| Flow Rate @ 50 ft of He. | 87 gpm |
| Flow Rate @ 60 ft of He. | 79 gpm |
| Flow Rate @ 70 ft of He. | 72 gpm |
| Flow Rate @ 80 ft of He. | 63 gpm |
| Flow Rate @ 90 ft of He. | 55 gpm |
| Frame | 56J |
| Frequency | 60 Hz |
| GPM of Water @ 10 Ft. o. | 107 |
| GPM of Water @ 100 Ft. . | 43 |
| GPM of Water @ 110 Ft. . | 32 |
| GPM of Water @ 120 Ft. . | 17 |
| GPM of Water @ 130 Ft. . | 2 |
| GPM of Water @ 15 Ft. o. | 105 |
| GPM of Water @ 20 Ft. o. | 103 |
| GPM of Water @ 25 Ft. o. | 100 |
| GPM of Water @ 30 Ft. o. | 98 |
| GPM of Water @ 40 Ft. o. | 92 |
| GPM of Water @ 50 Ft. o. | 87 |
| GPM of Water @ 60 Ft. o. | 79 |
| GPM of Water @ 70 Ft. o. | 72 |
| GPM of Water @ 80 Ft. o. | 63 |
| GPM of Water @ 90 Ft. o. | 55 |
| Height | 9 in |
| Horsepower | 3 hp |
| Housing Material | Cast Iron |
| Housing Material - Pumps | Cast Iron |
| HP | 3 |
| HP - Pumps | 3 hp |
| Hz | 60 |
| Impeller Design | Closed |
| Impeller Material | Cast Iron, Cast-iron |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet | 1-1/2" |
| Inlet Pressure | 200 psi |
| Inlet Size - Pumps | 1-1/2 in NPT |
| Intake Type | NPT |
| International Shipping | No |
| Item | Centrifugal Pump |
| Item - Straight Centrif. | Straight Centrifugal Hi. |
| Item Package Quantity | 1 |
| Length | 18 in |
| Length (Straight Wirewa. | 18 in |
| Manufacturer | Dayton |
| Manufacturer Warranty L. | 1 yr |
| Manufacturers Warranty . | 1 yr |
| Max. Case Pressure | 200 psi |
| Max. Dia. Solids | 5/16 in |
| Max. Head | 131 ft |
| Max. Liquid Temp. | 200 Degrees F |
| Max. Pressure | 56 psi |
| Max. Pressure - Pumps | 56 psi |
| Max. Specific Gravity | 1.0 |
| Maximum Feet of Head | 130 ft |
| Maximum Media Temperatu. | 200 Degrees F |
| Maximum RPM | 3,450 RPM |
| Motor Enclosure | TEFC, Totally Enclosed . |
| Motor Enclosure - Pumps | Totally Enclosed Fan-Co. |
| Motor Enclosure Broad | TEFC |
| Motor Enclosure Type | TEFC |
| Motor Frame Designation | 56J |
| Motor RPM | 3,450 RPM |
| Motor Type | TEFC |
| Mpn | 2ZXK2 |
| Nameplate Voltage | 230V AC |
| Outlet | 1-1/4" |
| Outlet Size - Pumps | 1-1/4 in NPT |
| Overall Height | 8.9 in |
| Overall Length | 18 in |
| Overall Width | 8.8 in |
| Part Number | 2ZXK2 |
| Phase | 1, Single |
| Phase - Pumps | 1 |
| Phase Broad | 1 |
| Port Rotation | 4 Position Increments |
| Prop 65 | WARNING: Cancer and Rep. |
| Pump Housing Material | Cast Iron |
| Pump Housing Material B. | CI |
| Pumping Application | Aggressive Liquid Appli. |
| Seal Material | Viton |
| Seal Type | Mechanical |
| Shaft Material | Stainless Steel |
| Shut Off Pressure (Maxi. | 56 psi |
| SKU | ZO-G3031147 |
| Solid Diameter (Maximum) | 0.31 in |
| Specific Gravity (Maxim. | 1 |
| Standards | UL Approval in Motor, U. |
| SubCategory | Pumps |
| UNSPSC Code | 30180000 |
| UPC | 190735242568 |
| Voltage | 230VAC |
| Voltage - Pumps | 240V AC |
| Wetted Material | Carbon, Cast Iron, Cera. |
| Wetted Materials | Carbon, Cast Iron, Cera. |
| Width | 8 3/4 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | GGM2ZXK2 | 697.28908226 | 1 | In Stock | | DAYTON | 78.4 | 697.28908226 @ 1 |
 | Zoro | G3031147 | 808.1 | 1 | In Stock | | Dayton | 77.18 | 808.1 @ 1 |
 | simsupply.com | ZO-G3031147 | 853.07 | 1 | 2 | | Dayton | | 853.07 @ 1 |
 | Amazon | B071X36NJK | 1270.39 | 1 | In Stock | | Dayton | | 1270.39 @ 1 |
 | sustainablesupply.com | C1740555 | 1272.9 | 1 | In Stock | | Dayton | 77.18 | 1272.9 @ 1 |
 | Raptor Supplies | AC4HQN | 1327.836393 | 1 | In Stock | | DAYTON | | 1327.836393 @ 1 |
