Dayton 2ZXK3

B007IB8C0O

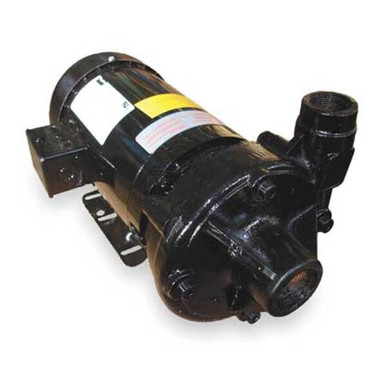

Cast Iron 3 HP Centrifugal Pump 208-230/460V

Cast Iron 3 HP Centrifugal Pump 208-230/460Vzoom

Attributes

Key Value
Agency ComplianceUL Approval in Motor
Amps8.3-7.6/3.8
Bearing TypeBall
Best Efficiency Flow95 gpm
Best Efficiency GPM @ H.95 @ 57 ft
Best Efficiency Head57 ft
BrandDayton
Compatible Discharge Pi.1 1/4 in
Compatible Intake Pipe .1 1/2 in
Compatible with Media T.Non-Flammable Liquids
Current Stock15
Discharge Rotation90 Degrees Increments
Discharge TypeNPT
DutyContinuous
Duty CycleContinuous
FeaturesContinuous High Pressur.
Feet of Head (Minimum)10 ft
Flow Rate @ 10 ft of He.107 gpm
Flow Rate @ 100 ft of H.43 gpm
Flow Rate @ 120 ft of H.17 gpm
Flow Rate @ 20 ft of He.103 gpm
Flow Rate @ 30 ft of He.98 gpm
Flow Rate @ 40 ft of He.92 gpm
Flow Rate @ 50 ft of He.87 gpm
Flow Rate @ 60 ft of He.79 gpm
Flow Rate @ 70 ft of He.72 gpm
Flow Rate @ 80 ft of He.63 gpm
Flow Rate @ 90 ft of He.55 gpm
Frame56J
Frequency60 Hz
GPM of Water @ 10 Ft. o.107
GPM of Water @ 100 Ft. .43
GPM of Water @ 110 Ft. .32
GPM of Water @ 120 Ft. .17
GPM of Water @ 130 Ft. .2
GPM of Water @ 15 Ft. o.105
GPM of Water @ 20 Ft. o.103
GPM of Water @ 25 Ft. o.100
GPM of Water @ 30 Ft. o.98
GPM of Water @ 40 Ft. o.92
GPM of Water @ 50 Ft. o.87
GPM of Water @ 60 Ft. o.79
GPM of Water @ 70 Ft. o.72
GPM of Water @ 80 Ft. o.63
GPM of Water @ 90 Ft. o.55
Height9 in
Horsepower3 hp
Housing MaterialCast Iron
Housing Material - PumpsCast Iron
HP3
HP - Pumps3 hp
Hz60
Impeller DesignClosed
Impeller MaterialCast Iron, Cast-iron
Impeller TypeClosed
IncludesManual
Inlet1-1/2"
Inlet Pressure200 psi
Inlet Size - Pumps1-1/2 in NPT
Intake and Discharge Si.1 1/2 in , 1 1/4 in
Intake TypeNPT
International ShippingNo
ItemCentrifugal Pump
Item - Straight Centrif.Straight Centrifugal Hi.
Length17 1/4 in
Length (Straight Wirewa.17 1/4 in
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max. Case Pressure200 psi
Max. Dia. Solids5/16 in
Max. Head131 ft
Max. Liquid Temp.200 Degrees F
Max. Pressure56 psi
Max. Pressure - Pumps56 psi
Max. Specific Gravity1.0
Maximum Feet of Head130 ft
Maximum Media Temperatu.200 Degrees F
Maximum RPM3,450 RPM
Motor EnclosureTEFC, Totally Enclosed .
Motor Enclosure - PumpsTotally Enclosed Fan-Co.
Motor Enclosure BroadTEFC
Motor Enclosure TypeTEFC
Motor Frame Designation56J
Motor RPM3,450 RPM
Motor TypeTEFC
Mpn2ZXK3
Nameplate Voltage208-230/460V AC
Nominal Voltage208-230/460V AC
Outlet1-1/4"
Outlet Size - Pumps1-1/4 in NPT
Overall Height8.9 in
Overall Length17.2 in
Overall Width8.8 in
Phase3, Three
Phase - Pumps3
Port Rotation4 Position Increments
Prop 65WARNING: Cancer and Rep.
Pump Housing MaterialCast Iron
Pump Housing Material B.CI
Pumping ApplicationAggressive Liquid Appli.
Seal MaterialViton
Seal TypeMechanical
Shaft MaterialStainless Steel
Shut Off Pressure (Maxi.56 psi
SKUZO-G3026597
Solid Diameter (Maximum)0.31 in
Specific Gravity (Maxim.1
StandardsUL Approval in Motor, U.
SubCategoryPumps
UPC190735242575
Voltage208-230/460VAC
Voltage - Pumps208 to 240/480V AC
Wetted MaterialCarbon, Cast Iron, Cera.
Wetted MaterialsCarbon, Cast Iron, Cera.
Width8 3/4 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caGGM2ZXK3641.50363311In StockDAYTON68.7641.5036331 @ 1
thumbzoomZoroG30265971080.341In StockDayton71.391080.34 @ 1
thumbzoomsimsupply.comZO-G30265971624.74115Dayton1624.74 @ 1
AmazonTPB007IB8C0O1761.031In Stock3Dayton1761.03 @ 1
thumbzoomsustainablesupply.comC17405561815.911In StockDayton71.391815.91 @ 1
thumbzoomRaptor SuppliesAC4HQP2410.04573551In StockDAYTON2410.0457355 @ 1
