Hubbell Wiring Device-Kellems BR20GRYWRTR

mpnBR20GRYWRTR
brandname: Hubbell
manufacturername: Hubbell

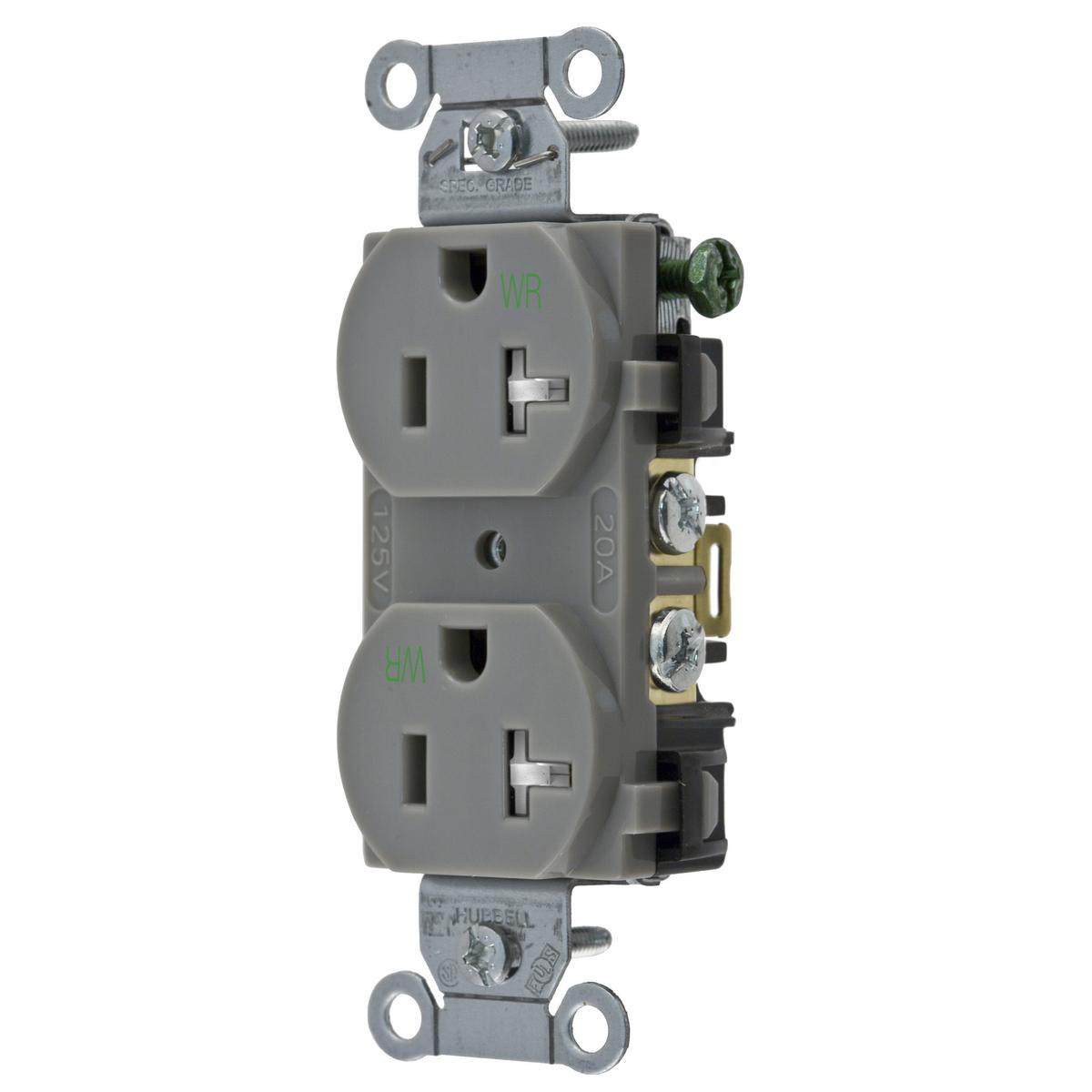

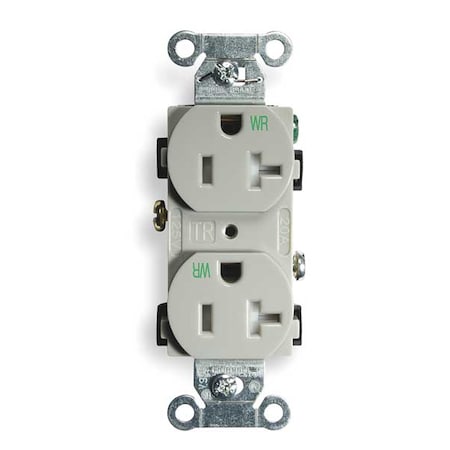

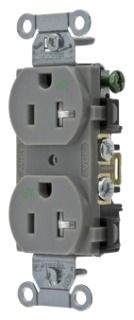

20A Duplex Receptacle 125VAC 5-20R GY

Brand: Hubbell Wiring Device-Kellems
PartNumber: BR20GRYWRTR
Color: Gray
PackageQuantity: 1
Manufacturer: HUBBELL WIRING DEVICE-KELLEMS
Label: HUBBELL WIRING DEVICE-KELLEMS

Attributes

Key	Value
Accessory Group	-
Additional Electrical P.	Standard Protection
Additional Electrical P.	Standard Protection
AFCI	No
Amperage	20 A
Amperage Rating	20A, 20
Amps	20
Amps - Plugs and Recep.	20
Amps - Plugs and Recept.	20 A
Application	Commercial Specificatio.
Application Environment	Commercial
Approvals	CSA, UL
AWG Range	#12 AWG to #10 AWG
Boot Code	-
Color	Gray
Color - Plugs and Recep.	Gray
Color Family	Gray
Comments	Commercial Specificatio.
Connection Orientation	Straight
Connectivity	Back and Side Wired
Contact Material	Brass
Corrosion Resistant	No
Country of Origin	CN - China
Country of Origin (subj.	China
Cover Type	No Cover
Current / amperage rati.	20 A
Current Rating	20 A
Current rating	20 A
Description	Grounding, Smooth
Dielectric strength	Withstands 2,000V minim.
Dimensions	1.32 in W x 0.83 in D x.
Display Type	Standard Sized Product
ECCN	EAR99
Environmental conditions	Weather Resistant
Face Plate Height	2.73 in
Face Plate Width	1.32 in
Family Series	Hubbell Plugs & Recepta.
Flange Type	Non-Flanged
GFCI	No
Grade	Federal Specification
Gross Weight	0.2 lbs
Ground	Grounded
Grounding	Grounded
Horsepower	1
Horsepower Rating	1 hp
Housing Color	Gray
Housing Colour	Gray
Housing Material	Nylon
HP	1, 1 hp
Illuminated	No
Includes	Grounding Staple, Mount.
Includes Mounting Hardw.	Yes
Isolated Ground	No
Item	Receptacle
Item - Plugs and Recept.	Receptacle
Item Number	BR20GRYWRTR
Key Resistance Properti.	Tamper & Weather Resist.
Manufacturer	Hubbell
Manufacturer Part Number	BR20GRYWRTR
Market	Commercial, Industrial
Material	Nylon
Material - mounting har.	Screw Mounting
Max HP	1
Maximum Operating Tempe.	75 Degrees C, 75 Degre.
Maximum Wire Size	10 AWG
Minimum Operating Tempe.	-40 Degrees C, -40 Deg.
Minimum Wire Size	12 AWG
Mount Hole Center-to-Ce.	3.28 in
Mount Type	Flush
Mounting Type	Flush
Mounting Type - Plugs a.	Flush
Multimedia Outlet	No
NEMA Configuration	5-20, 5-15R
NEMA Enclosure Rating	1
Nema Rating	5-20R
NEMA Rating	5-20R, NEMA 5-20R
NEMA Receptacle Configu.	5-20R
NEMA Receptacle Configu.	5-20R
Net Weight	0 lbs
No. of Poles	2
No. of Wires	3
Number of Gangs	1
Number of poles	2-Pole
Number of Poles	2
Number of Poles & Wires	2 Pole / 3 Wire
Number of Wires	3
Number of wires	3-Wire
Operating temperature	Maximum continuous 75C .
Outlet Type	Duplex
Outlet Type - Plugs and.	Standard Duplex
Phase	1, Single, Single phase
Polarized	Yes
Power Indicator	No
Primary Resistance Prop.	Tamper Resistant - Tamp.
Product Type	Receptacle
Rated Voltage	125V
Receptacle Type	Duplex
Resistance Properties	Tamper Resistant, Weath.
Shrouded	No
Standard	Certified to CSA C22.2,.
Standards	Certified to CSA C22.2,.
Style	Smooth Face
Sub-Category	Duplex Receptacles
Surge Protection	No
Surge Suppression	No
Tamper Resistant	Yes
Temperature Rating (Deg.	-40 to 75
Terminal Type	Back and Side Wired, Ba.
Type	Duplex, 1-Phase Duplex .
UL 94 Flammability Rati.	V-2
UNSPSC	39121406
USB	No
Voltage	125VAC, 125 V, 125 VAC
Voltage - Plugs and Rec.	125V AC
Voltage Rating	125V AC, 125
Voltage rating descript.	125 V
Wattage	2500 W
Weather Resistant	Yes
Weather Resistant - Plu.	Yes
Wire Connection Type	Screw Terminals
Wire Connection Types	Screw Terminals
Wire size	#12 AWG to #10 AWG
Wiring Method	Back, Side
Wiring Method - Plugs a.	Back and Side

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
gordonelectricsupply.com	BR20GRYWRTR	8.76	1	In Stock	HUBBELL		8.76 @ 1
Zoro	G1779181	10.0	1	In Stock	Hubbell	1.9	10.0 @ 1
Onlinecomponents.com	BR20GRYWRTR	10.71	1	In Stock	Hubbell		10.71 @ 1
standardelectricsupply.com	2314692	11.43	1	In Stock	Hubbell		11.43 @ 1
MRO Supply	1015330	11.57	4	In Stock	Hubbell Wiring		11.57 @ 4
Galco	BR20GRYWRTR-HBBL	11.91	1	In Stock	Hubbell	0.2	11.91 @ 1
sustainablesupply.com	C1180278	14.15	1	In Stock	Hubbell	0.15	14.15 @ 1
Graybar	25172161	14.3696	1	In Stock	Hubbell Wiring Device - Kellems		14.3696 @ 1
Newark	84M8981	19.2	1	In Stock	HUBBELL WIRING DEVICES		19.2 @ 1
Raptor Supplies	AC2AKX	20.670975	1	In Stock	HUBBELL WIRING DEVICE-KELLEMS		20.670975 @ 1
grainger.ca	HBLBR20GRYWRTR	25.0040167	1	In Stock	HUBBELL WIRING DEVICE-KELLEMS	0.15	25.0040167 @ 1
