Johnson Controls T-4002-9012

mpnT-4002-9012
brandname: Johnson Controls
manufacturername: Johnson Controls

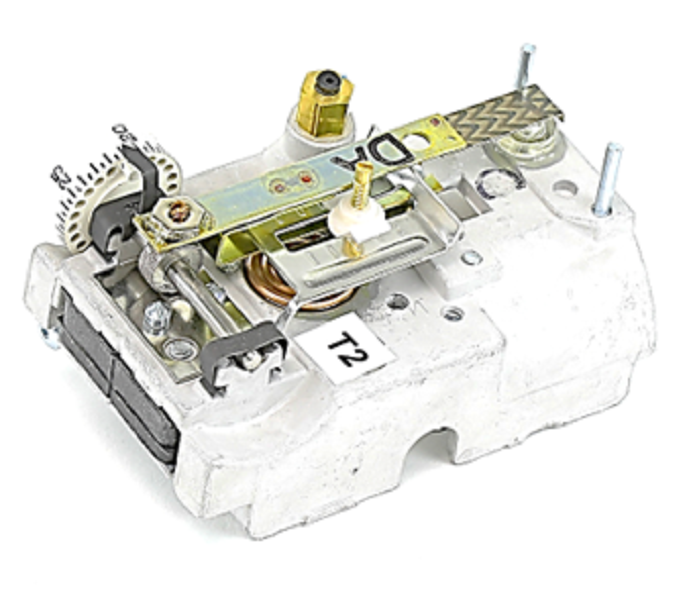

Johnson Controls T-4002-9012 Pneumatic Thermostat, DA, 55 to 85 Degree F

Brand: Johnson Controls
PartNumber: T-4002-9012
Model: T-4002-9012
PackageQuantity: 1
Binding: Misc.
Manufacturer: Johnson Controls Inc
Label: Johnson Controls Inc

Attributes

Key	Value
1 Pipe / 2 Pipe	2 Pipe
Action	Direct
Action Type - Pneumatic.	Direct Acting
Air Connection Outside .	1/8 in
Air Connections	5/32 in Barb
Air Consumption	20 scim
Air Flow Capacity	400 scim
Air Flow Output	High Volume
Application	Heat or Cool
Brand	Johnson Controls
Compatible System Type	Pneumatic Valves and Da.
Control Air Pressure	3 to 15 psi
Control Air Pressure Se.	0.75 psig (Day)/ 4 psig.
Control Type	Exposed Dial
Current Stock	19
Date First Available	August 15, 2013
Depth	1 3/4 in
Differential Type	Adjustable
Element Type	Bi-Metal
Family Series	Johnson Controls Miscel.
Fitting Connection	Barbed 5/32 in
Gross Weight	0 lbs
Heating / Cooling	Heating and Cooling
Height	2 3/32 in
Includes Cover	No
International Shipping	No
Item	Pneumatic Thermostat
Item model number	T-4002-9012
Item Number	T-4002-9012
Manual Indexing Switch	No
Manufacturer	Johnson Controls, Johns.
Manufacturer Part Number	T-4002-9012
Max. Air Pressure	25 psi
Max. Ambient Temp.	135 Degrees F
Maximum Air Pressure	25 psig
Maximum Control Tempera.	85 Degrees F
Minimum Control Tempera.	55 Degrees F
Mounting Direction	Vertical
Mounting Location	Wall
Mounting Style	Vertical
Mpn	T-4002-9012
Net Weight	0 lbs
No. of Pipes	2 Pipe
Number of Dials	Single
Number of Pipes	2
Overall Depth	1 3/4 in
Overall Height	2 1/8 in
Overall Width	3 1/8 in
Package Dimensions	4 x 4 x 3 inches; 6.08 .
Product with faster shi.	true
Reverse Acting / Direct.	Direct Acting
Sensor Type	Bi-Metallic Spring
Shipping	undefined (Fixed Shippi.
Single Temp. / Dual Tem.	Single Temperature
SKU	ZO-G5298483
Temp. Control Range	55 Degrees to 85 Degre.
Temperature Output Sett.	Single Temperature
Temperature Scale	Celsius/Fahrenheit
Temperature Sensitivity	0.75 to 4 psi/ Degrees F
Temperature Settings	Single Temperature
Thermostat Action	Direct
Thermostat Application	Heating and Cooling
UPC	78502836752
Width	3 1/8 in
