Marathon Electric X038

B007ZQPUKC

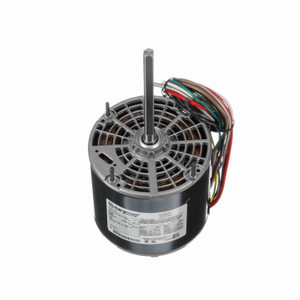

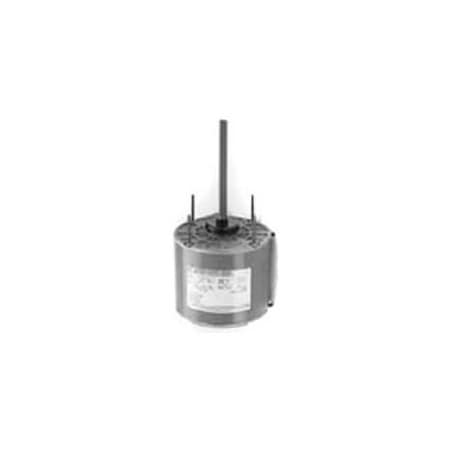

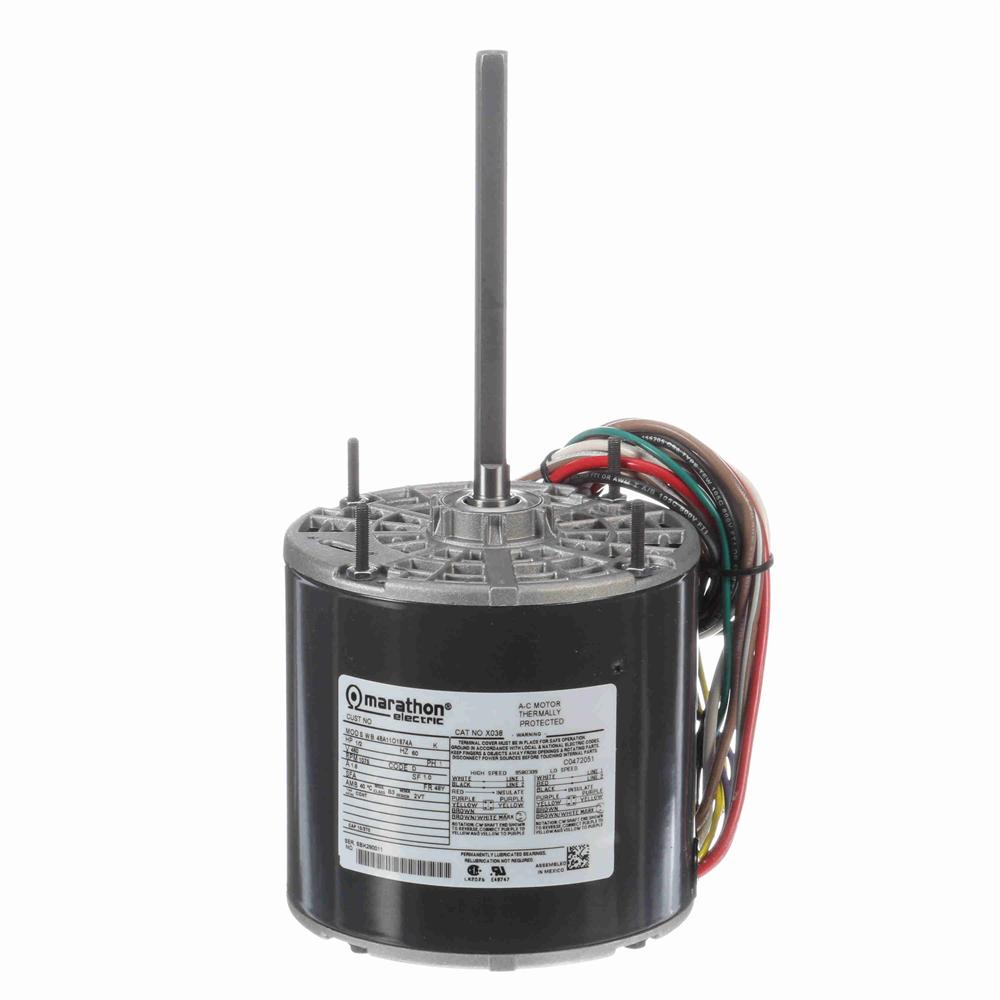

Marathon X038 48Y Frame Direct Drive Blower Motor, Single Phase PSC, Thru-Bolt Mount, Open Air Over, Shaft Dimension 1/2" x 6", 1.6 amp, 1/2 hp, 1075/2 RPM, 460V

Marathon X038 48Y Frame Direct Drive Blower Motor, Single Phase PSC, Thru-Bolt Mount, Open Air Over, Shaft Dimension 1/2" x 6", 1.6 amp, 1/2 hp, 1075/2 RPM, 460Vzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11O1874
Amps1.6
BearingsBall
BrandMarathon
C-Dimension12.19 (in.) (in.)
Capacitor10MFD/370VAC Required
Catalog NumberX038
CEN
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.626
Electrical TypePermanent Split Capacit.
EnclosureOPEN
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
Frame48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60
Gross Weight0 lbs
HP1/2
Hz60
Insulation ClassB
IP Code01
KVA CodeD
Manufacturer Model #048A11O1874
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length4.75"
MountingStud
Mounting OrientationHorizontal
Mounting TypeRound
Number of Speeds2
ODE Bearing TypeBall
Overall Length12.19"
Package Quantity1
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1075
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension6.06 (in.) (in.)
Shaft Length6.06"
Shaft TypeSingle Special Extension
Ship Weight17 lbs.
Speeds2
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage460
Volts460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX038242.011MARATHON242.0 @ 1
thumbzoomktool.netX038245.311In StockMarathon Motors245.31 @ 1
thumbzoomapexindustrialautomation.comX038258.62141Marathon258.62 @ 1
thumbzoomGalcoX038-MARA265.421In StockMarathon Electric265.42 @ 1
thumbzoomemotorpro.comX038284.831In StockMarathon17.0284.83 @ 1
us.rs-online.com72650111298.961In StockMarathon Motors298.96 @ 1
thumbzoommidwestapplianceparts.comX038-MT-P307.2312Marathon307.23 @ 1
thumbzoomDreisilkerMA-RBC-X038325.861In StockMarathon325.86 @ 1
thumbzoomVoomi SupplyX038333.711In StockMARATHON MOTORS333.71 @ 1
thumbzoomNational Supply NetworkB871768335.541In StockMARATHON MOTORS335.54 @ 1
thumbzoomMRO Supply2269575355.751In StockMarathon Electric355.75 @ 1
kirbyrisk.com2000676385.821In StockMarathon385.82 @ 1
thumbzoomGuardianMARSX038394.111In StockMarathon394.11 @ 1
industrialmotors.comX038471.015MARATHON ELECTRIC471.0 @ 1
thumbzoomZoroG204937154495.991In Stock10Marathon Motors495.99 @ 1
uri.comX038796.561In StockMarathon16.2796.56 @ 1
