Marathon Electric X067

B007ZQQ7V8

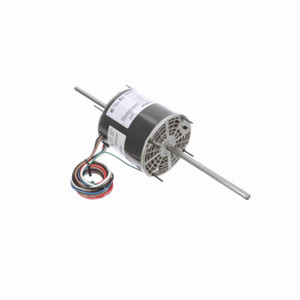

X067 48A11O2014 1/2 Hp 208-230 48Y FR 1075/3 Rpm OAO

X067 48A11O2014 1/2 Hp 208-230 48Y FR 1075/3 Rpm OAOzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11O2014
Amps4.7
BearingsBall
BrandMarathon
C-Dimension20.00 (in.) (in.)
Capacitor5MFD/370VAC Required
Catalog NumberX067
CEN
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinous
Duty CycleContinuous
Efficiency0.662
Electrical TypePermanent Split Capacit.
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
Frame48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60
Gross Weight0 lbs
HP1/2
Hz60
Insulation ClassA
IP Code10
KVA CodeD
Manufacturer Model #048A11O2014
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length5"
MountingStud
Mounting OrientationHorizontal
Mounting TypeRound - Extended Studs
Number of Speeds3
ODE Bearing TypeBall
Overall Length20"
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypePSC (Permanent Split Ca.
RotationDouble Shafted, Fixed C.
RPM1075
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension7.81/6.69 (in.) (in.)
Shaft Length7.81" x 6.69"
Shaft TypeSpecial Extension Both .
Ship Weight19 lbs.
Speeds3
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Volts208, 230, 208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoX067-MARA69.8924In StockMarathon Electric69.89 @ 24
us.rs-online.com7265010381.721In StockMarathon Motors81.72 @ 1
thumbzoomGlobal IndustrialWBB872077154.951In StockMarathon Motors154.95 @ 1
thumbzoomemotorpro.comX067202.91In StockMarathon19.0202.9 @ 1
thumbzoomDreisilkerMA-RBC-X067261.531In StockMarathon261.53 @ 1
thumbzoomGuardianMARSX067285.541In StockMarathon285.54 @ 1
