Marathon Electric X039

B007ZQPW5U

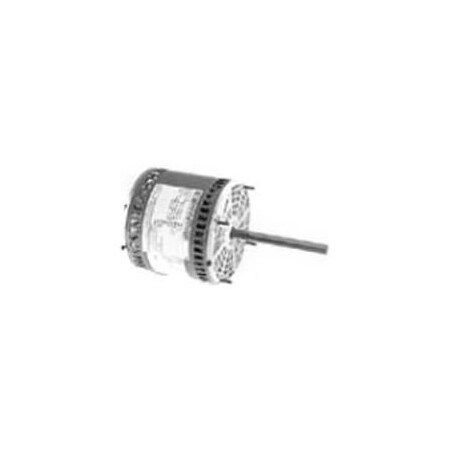

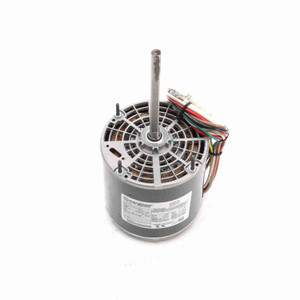

Marathon X039 48Y Frame Open Air Over 48A11O1875 Direct Drive Motor 3/4 hp, 1075 RPM, 460 VAC, 1 Phase, 2 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Bolt

Marathon X039 48Y Frame Open Air Over 48A11O1875 Direct Drive Motor 3/4 hp, 1075 RPM, 460 VAC, 1 Phase, 2 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Boltzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11O1875
Amps2.1, 2.1 A
applications:Blowers, Fans
ApprovalsCSA, UR
base rpm:1075 rpm
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension12.44 (in.) (in.)
Capacitor15MFD @ 370VAC Required
Catalog NumberX039
CEN
CompositionRolled Steel
CSAY
Current Rating2.1 A
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinous
duty / condition type:Continuous Duty
Duty CycleContinuous
Efficiency64, 64%
Efficiency %64 %
Electrical TypePermanent Split Capacit.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
enclosure type:OAO (Open Air-Over)
Family SeriesMarathon Electric Motors
Frame48Z
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:48Y
Frame Type48Z
Frequency60, 60 Hz
frequency rating:60 Hz
full load current:2.10 A
full load efficiency:64.00 %
Gross Weight0 lbs
Horsepower3/4 hp
Horsepower Rating0.75 HP
HP3/4
Hz60
Insulation ClassB
insulation class:B
Insulation TypeClass B
IP Code10
ip rating:10
Item NumberX039
Kilowatts0.56 kW
KVA CodeB
ManufacturerMarathon Electric
Manufacturer Model #048A11O1875
Manufacturer Part Number048A11O1875
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor category:Blower/Fan Motor
Motor Diameter5-5/8"
motor horsepower:0.75 hp, 3/4 hp
Motor OrientationHorizontal
motor phase:1 ph
Motor Shell Length5"
motor supply voltage:460 V
Mounting OrientationHorizontal
Mounting TypeRound - Extended Studs,.
mounting type:Round/Extended Studs
Net Weight19 lbs
Number of Poles6
Number of Speeds2
ODE Bearing TypeBall
Overall Length12.44 ", 12.44"
Phase1, 1 Phase
Product CategoryHVAC/R Motors > Fan an.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1075 rpm, 1075, 1,075 R.
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
service factor:1.00
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
shaft diameter:0.50 in
Shaft Extension6.06 (in.) (in.)
Shaft Length6.06"
Shaft TypeSingle Special Extension
Ship Weight19 lbs.
Special FeaturesService Factor - 1
Speeds2
StandardsUL Recognized
standards met:UL, CSA
Supply Voltage460 VAC
synchronous rpm:1200 rpm
Thermal ProtectionAutomatic
thermal protection:Automatic
TypePermanent Split Capacit.
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
UPC Code722856038814
Voltage460
Voltage (AC)460 VAC
Volts460
weight:19 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX039246.01In StockMARATHON246.0 @ 1
thumbzoommotionindustries.com04740855256.171In StockMarathon Electric256.17 @ 1
thumbzoomapexindustrialautomation.comX039264.35188Marathon264.35 @ 1
thumbzoomGalcoX039-MARA271.31In StockMarathon Electric19.0271.3 @ 1
thumbzoomemotorpro.comX039291.141In StockMarathon19.0291.14 @ 1
thumbzoommidwestapplianceparts.comX039-MT-P314.0214Marathon314.02 @ 1
us.rs-online.com72238159321.611In StockMarathon Motors321.61 @ 1
thumbzoomNational Supply NetworkB871769330.561In StockMARATHON MOTORS330.56 @ 1
thumbzoomDreisilkerMA-RBC-X039333.081In StockMarathon333.08 @ 1
thumbzoomVoomi SupplyX039341.091In StockMARATHON MOTORS341.09 @ 1
thumbzoomMRO Supply2269530362.31In StockMarathon Electric362.3 @ 1
kirbyrisk.com1822994394.371In StockMarathon394.37 @ 1
thumbzoomZoroG104937209472.991In StockMarathon Motors472.99 @ 1
uri.comX039801.461In StockMarathon17.65801.46 @ 1
