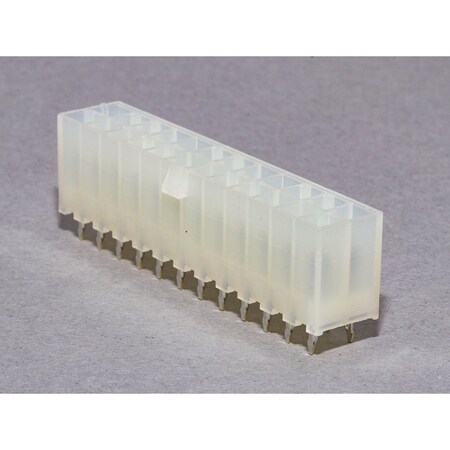

Headers & Wire Housings 24 CKT VERT HEADER (100 pieces)

Headers & Wire Housings 24 CKT VERT HEADER (100 pieces)zoom

Attributes

Key Value
Alternate Mfr Part Numb.5566-24A
Alternate Part No.538-39-28-1243
ApplicationsGeneral Purpose, Indust.
ASINB005T805Z8
Base Product Number003928
BrandMolex
CategoryConnectors, Interconnec.
CertificationRoHS
Circuits (Loaded)24
Circuits (maximum)24
ColorNatural
Color - ResinNatural
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.35.4?in (0.90?m)
Contact Finish Thicknes.35.0?in (0.90?m)
Contact GenderPin (Male)
Contact Length - Mating-
Contact Length - Post0.138" (3.50mm)
Contact MaterialBrass
Contact PlatingTin
Contact ShapeSquare
Contact TypeMale Pin
CSALR19980
Current - Maximum per C.9.0A
Current Rating9 A
Current Rating (Amps)-
DescriptionCONN HEADER VERT 24POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM3811-ND
Durability (mating cycl.30
Duration at Max. Proces.5
Family NameMini-Fit Jr.
Fastening TypeLocking Ramp
Features-
Flammability94V-2
Housing MaterialNylon
Ingress Protection-
Insulation ColorNatural
Insulation Height0.504" (12.80mm)
Insulation MaterialPolyamide (PA66), Nylon.
Item model number39-28-1243
Item Package Quantity1
Lock to Mating PartYes
ManufacturerMolex
Manufacturer Part No.39-28-1243
Manufacturer Product Nu.0039281243
Manufacturer Standard L.12 Weeks
Mated Stacking Heights-
Material - MetalBrass
Material - Plating Mati.Tin
Material - Plating Term.Tin
Material Flammability R.UL94 V-2
Max. Cycles at Max. Pro.1
MfrMolex
Mounting AngleVertical
Mounting TypeThrough Hole
Number of Circuits24
Number of Contacts24
Number of Positions24
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
OrientationVertical
Overall Contact Length-
PackageBulk
PackagingBulk
Part # Aliases0039281243 5566-24A
Part Number39-28-1243
PC Tail Length3.50mm
PCB LocatorYes
PCB Thickness - Recomme.1.60mm
Pitch4.2 mm, 4.20 mm (0.165")
Pitch - Mating0.165" (4.20mm)
Pitch - Mating Interface4.20mm
Plating MaterialTin
Plating min - Terminati.0.889?m
Primary TypeSoft Shell
Process Temperature max.240
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeader Assemblies
Row Spacing5.5 mm
Row Spacing - Mating0.165" (4.20mm)
Series5566, Mini-Fit Jr 5566,.
ShroudedFully
ShroudingShrouded - 4 Wall
Special FeaturesLow-Halogen
StyleBoard to Cable/Wire
TerminationSolder
Termination Interface: .Through Hole
Termination StyleThrough Hole
TradenameMini-Fit Jr.
TypeVertical Header, Pin He.
ULE29179
UPC Code800753581661
Voltage - Maximum600V
Voltage Rating-, 600 V
