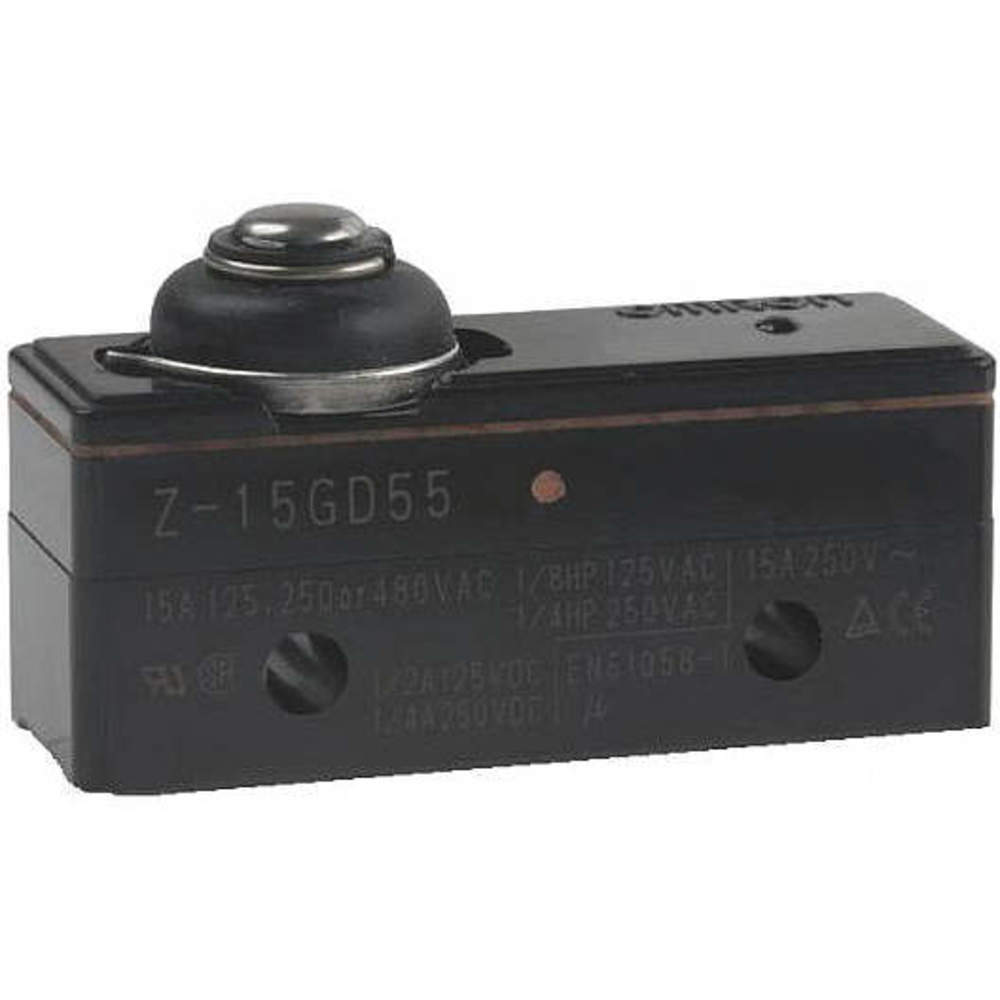

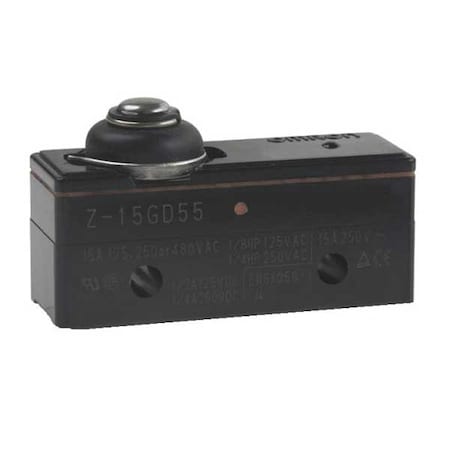

Omron Z-15GD55

B00BR2SFLQ

Snap Swch, 15A, SPDT, Short Spring Plunger

Snap Swch, 15A, SPDT, Short Spring Plungerzoom

Attributes

Key Value
AC Contact Rating - Sna.15 A @ 480 V, 15 A @ 48.
Actuator Length0.27"
Actuator TypeShort Spring Plunger, C.
Actuator Type - Snap Ac.Plunger, Short
Alternate Mfr Part Numb.Z15GD55
Basic Actuator Type - S.Plunger
BrandOmron
CategorySwitches
CircuitOn-Mom
Contact FormSPDT
Contact Form- SwitchesSPDT
Current Rating15 A
Current Rating (Amps)Round (Pin Plunger)
Current Stock3
DC Contact Rating - Sna.15 A @ 14 V, 15 A @ 14V
Depth0.69"
Depth - Snap Action Swi.0.69 in
Differential Travel0.002 in, 0.062" (1.6mm)
Electrical Connection -.Solder Lug
Electrical Life500000, 20,000,000 Cycl.
Features25.4 mm mounting hole p.
Height0.84"
Height - Snap Action Sw.0.84 in
Housing MaterialPhenolic
Ingress Protection-
International ShippingNo
IP RatingIP62
ItemIndustrial Snap Action .
Lead TimeExpected to ship in 1-2.
Length1.94"
Lever Actuator Length -.Not Applicable
Max. Pretravel0.071 in
Mechanical Life240 operations/minute m.
MfrOmron Automation and Sa.
Mounting Dimension1.00" Centers
Mounting Dimension - Sn.1.00 in Centers
Mounting TypeSolder Lug, Chassis Mou.
MpnZ-15GD55
Number of Circuits - Sn.1
Operating Force114gf, 5.30 N, 19.10 oz.
Operating Position500,000 Cycles
Operating Temp. Range5 Degrees to 176 Degre.
Operating Temperature-25 to 80 C (-13 to 176.
Over Travel0.063 in
Overtravel-15?C ~ 80?C
PackageActive
Part StatusSPDT
Power Rating1/4 HP
Pretravel0.002" (0.05mm)
Release Force4.02 oz, 1.12 N, 0.071".
SeriesZ Series, Z, Tray
SKUZO-G2236622
Snap Action Switch TypeIndustrial Snap Action .
StandardsUL/CSA/EN 61058-1, UL; .
SubCategoryElectrical
Switch Function15A (AC), 6A (DC)
TerminationSolder
Termination StyleIP62
Voltage Rating250 V, 125/250VAC
Voltage Rating - AC30 V
Watertight - Snap Actio.No
Width - Snap Action Swi.1.94 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG22366229.9914Omron0.059.99 @ 1
Onlinecomponents.comZ15GD5510.732In StockOmron10.73 @ 2
grainger.caWWG2KRL612.59273411In StockOMRON0.0512.5927341 @ 1
thumbzoomsustainablesupply.comC118123214.411In StockOmron0.0514.41 @ 1
thumbzoomsimsupply.comZO-G223662217.813Omron17.8 @ 1
Airline HydraulicsOMRON Z-15GD5519.251In StockOmron19.25 @ 1
thumbzoomkempstoncontrols.co.ukZ-15GD5519.76592151In StockOmron19.7659215 @ 1
AmazonTPB008L5S2I821.441In Stock3Omron21.44 @ 1
Digi-KeyZ10577-ND22.271In StockOmron Automation and Safety22.27 @ 1
Mouser653-Z-15GD5522.2711Omron22.27 @ 1
Newark89C884522.73117OMRON INDUSTRIAL AUTOMATION22.73 @ 1
thumbzoomRaptor SuppliesAC2JTD26.81641In StockOMRON26.8164 @ 1
us.rs-online.com7115287728.531In StockOmron Automation28.53 @ 1
