Omron ZVNA22S

B00FV1XMSU

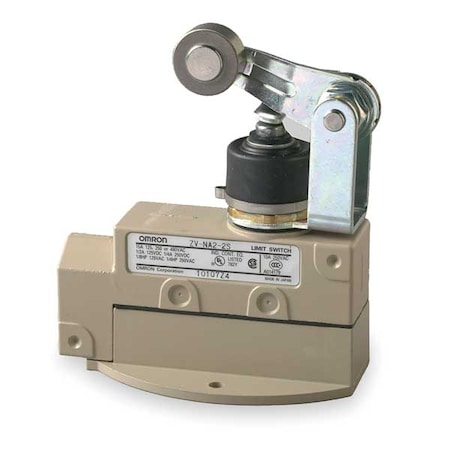

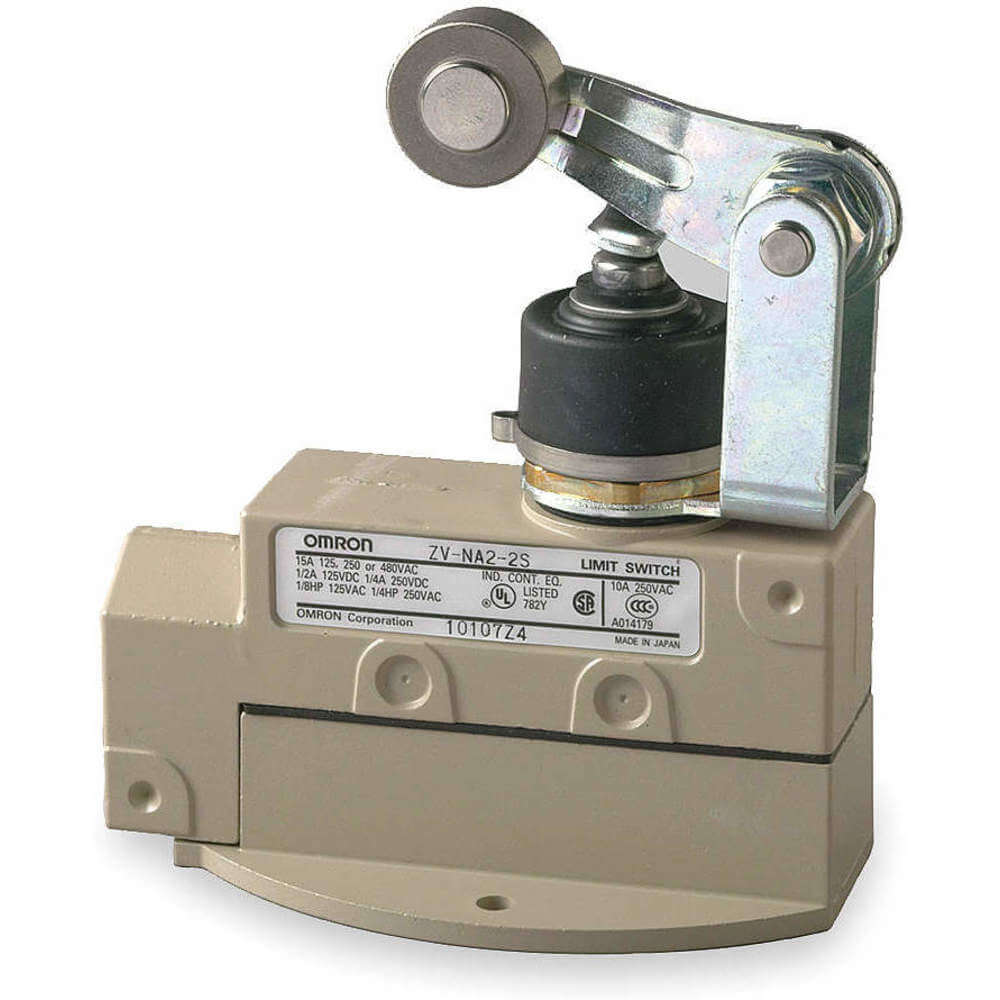

Enclosed Limit Switch

Enclosed Limit Switchzoom

Attributes

Key Value
AC Contact Rating - Lim.10A @ 480V, 10 A @ 480V
Acquired StandardsUL / GB(CCC) / CSA
Actuator Length1.56"
Actuator Length - Limit.1.56 in
Actuator Location - Lim.Top
Actuator Style - Limit .Plunger, Roller Lever
Actuator TypeLever, Roller
Alternate Mfr Part Numb.ZVNA22S
Arm MaterialSteel
Arm Width0.63 in
Base Product NumberZV-N
Basic Actuator Style - .Plunger
Body Depth - Limit Swit.1.0 in, 1.00 in
Body Height - Limit Swi.1.30 in, 1.3 in
Body MaterialAluminum
Body Style - Limit Swit.Micro
Body Width - Limit Swit.3.39 in
Boot Sealed Actuator - .Yes
BrandOmron
CategorySwitches
CircuitSPDT
Contact Form- SwitchesSPDT
Current Rating (Amps)15A (AC), 500mA (DC)
Current Stock9
DC Contact RatingNot Rated
DC Contact Rating - Lim.Not Rated
Depth3.39"
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT Chassis Mou.
Differential Travel0.016" (0.4mm)
Digi-Key Part NumberZ10674-ND
Electrical ConnectionScrew Terminals
Electrical Life500,000 Cycles
Features-
Height4.02"
Ingress ProtectionIP65 - Dust Tight, Wate.
International ShippingNo
IP Rating65
ItemLimit Switch
Lead TimeExpected to ship in 1-2.
Limit Switch StyleGeneral Purpose Limit S.
Main Body External Dime.44.5
Main Body SizeStandard
ManufacturerOmron Automation and Sa.
Manufacturer Product Nu.ZV-NA2-2S
Manufacturer Standard L.10 Weeks
Mechanical Life10,000,000 Cycles
Mechanical Operation Fr.120
MfrOmron Automation and Sa.
Mounting - Limit SwitchBottom Flange
Mounting Hole - Limit S.(2) 0.17 in dia
Mounting Hole Pattern -.2 Hole Horizontal
Mounting Hole Spacing -.1.63 in
Mounting TypeChassis Mount
MovementTop
MpnZVNA22S
NEMA Rating1, 2, 3, 4, 5
Operating Force640gf, 6.28 N
Operating Position-
Operating Temp. Range14 Degrees to 176 Degr.
Operating Temperature-10?C ~ 80?C
Overtravel0.235" (6.0mm)
PackageBulk
Pretravel0.197" (5.0mm)
Product StatusActive
Release Force230gf
Roller Dia.0.75 in
Roller MaterialStainless Steel
Roller Width0.31 in
SeriesZV
SKUZO-G2404595
StandardsUL, CSA
Stem Thread - Limit Swi.No Stem
SubCategoryElectrical
Switch FunctionOn-Mom
Termination StyleScrew Terminal
TravelMaximum Pre-Travel 5 mm.
Voltage Rating - AC125 V
Voltage Rating - DC125 V
Width2.13"
Wiring EntryG1/2

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMisumi USAZV-NA2-2S45.541In Stock18OMRON45.54 @ 1
Onlinecomponents.comZVNA22S68.2912OMRON INDUSTRIAL68.29 @ 1
thumbzoomZoroG240459576.59119Omron0.776.59 @ 1
Airline HydraulicsOMRON ZV-NA2-2S92.017Omron92.0 @ 1
thumbzoomsimsupply.comZO-G240459595.3219Omron95.32 @ 1
thumbzoomDigi-Key184340697.3715Omron Automation and Safety97.37 @ 1
WaldomOMRON ELECTRONICS ZV-NA2-2S101.351In StockOmron Electronics101.35 @ 1
thumbzoomsustainablesupply.comC1177481107.641In StockOmron0.7107.64 @ 1
grainger.caWWG2CMC4110.170092741In StockOMRON0.7110.17009274 @ 1
us.rs-online.com71152387114.9612Omron Automation114.96 @ 1
Master ElectronicsZVNA22S133.5212Omron Automation133.52 @ 1
thumbzoomRaptor SuppliesAB9EUD149.19974551In StockOMRON149.1997455 @ 1
