Panduit LCC4/0-14AW-X

B00B5NVWQM

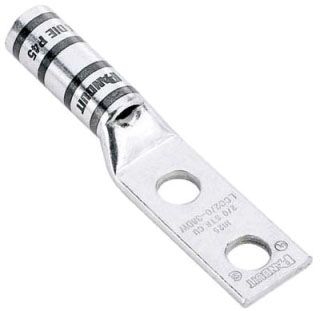

Panduit LCC4/0-14AW-X Code Conductor Lug, Two Hole, Long Barrel With Window, 4/0 AWG Copper Conductor Size, 1/4" Stud Size, Purple Color Code, 0.63" Stud Hole Spacing, 1-5/8" Wire Strip Length, 0.14" Tongue Thickness, 1.06" Tongue Width, 1.56" Neck Length, 3.35" Overall Length

Panduit LCC4/0-14AW-X Code Conductor Lug, Two Hole, Long Barrel With Window, 4/0 AWG Copper Conductor Size, 1/4" Stud Size, Purple Color Code, 0.63" Stud Hole Spacing, 1-5/8" Wire Strip Length, 0.14" Tongue Thickness, 1.06" Tongue Width, 1.56" Neck Length, 3.35" Overall Lengthzoom

Attributes

Key Value
Allowable Gauge Range4/0
ApprovalsCSA, UL
Barrel Length1.56
Base Product NumberLCC4
BrandPanduit, Pan-Lug?
Catalog NumberLCC4/0-14AW-X
CategoryConnectors, Interconnec.
ColorPurple
Color CodePurple
Color FamilyPurple
Contact FinishElectro-Tin
Contact MaterialCopper
Country of OriginMX - Mexico, Mexico
Country of Origin (subj.Mexico
Diameter - Barrel ID0.570" (14.48mm)
Diameter - Barrel OD0.710" (18.03mm)
Diameter - Ring ID0.270" (6.86mm)
Die ColorPurple
ECCNEAR99
Family SeriesPanduit Terminals, Pan-.
Features-
FinishTin-Plated
Gross Weight1.6 lbs
GTIN00074983824397
Hole Center to Center44565
InsulationNon-Insulated
Item NumberLCC4/0-14AW-X
Item TypeCopper Compression Conn.
Length - Overall3.350" (85.00mm)
Lug Wire Size4/0 AWG
Made in USANo
ManufacturerPanduit
Manufacturer Part NumberLCC4/0-14AW-X
MaterialCopper, Tin-Plated Copp.
Material/CompositionCopper
Max Conductor Range4/0 AWG
MfrPanduit Corp
Min Conductor Range4/0 AWG
Mounting2-Hole, 1.63
Mounting TypeFree Hanging (In-Line)
Net Weight0 lbs
Number of Conductors1
Number of Holes2
Overall Length3.35 in
PackageBulk
Product SeriesPan-Lug Compression
Product StatusActive
RoHS CompliantYes
SeriesPan-Lug?
Size4/0 AWG Code
Special FeaturesConsult cable manufactu.
Stud Hole Spacing0.63 in.
Stud Size1/4 in, 44565
Stud/Tab Size1/4 Stud
Sub BrandPan-Lug
Tab Thickness0.140" (3.56mm)
Terminal StyleTwo Stud Holes
Terminal TypeRectangular Tongue
TerminationCrimp, Barrel
Tongue StyleStandard
Tongue Width - Wire Con.1.06
Tool TypeTin-Plated Copper Compr.
UNSPSC39121405
UPC074983824397
Width - Outer Edges1.060" (26.92mm)
Wire Gauge4/0 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcbtcompany.comLCC4/0-14AW-X9.031In StockPANDUIT9.03 @ 1
thumbzoomalldataresource.comLCC4/0-14AW-X11.891In StockPanduit11.89 @ 1
RadwellLCC4014AWX15.32100In StockPANDUIT15.32 @ 100
Digi-Key456554416.28115Panduit Corp16.28 @ 1
Onlinecomponents.comLCC4/0-14AW-X16.541In StockPanduit16.54 @ 1
thumbzoomGalcoLCC4/0-14AW-X-PNDT20.0710In StockPanduit1.620.07 @ 10
thumbzoomZoroG30485898420.941In Stock15Panduit20.94 @ 1
thumbzoomPlatt.com069116821.361In StockPanduit21.36 @ 1
thumbzoomcrescentelectric.com131573322.851In StockPanduit22.85 @ 1
us.rs-online.com7214485024.1210In StockPanduit24.12 @ 10
Airline HydraulicsPANDUIT LCC4/0-14AW-X24.191In StockPanduit Corp24.19 @ 1
Newark66H1362171.621In StockPANDUIT171.62 @ 1
thumbzoomgordonelectricsupply.comLCC4/0-14AW-X211.01In Stock12PANDUIT211.0 @ 1
Graybar250721982645.11521In StockPanduit2645.1152 @ 1
