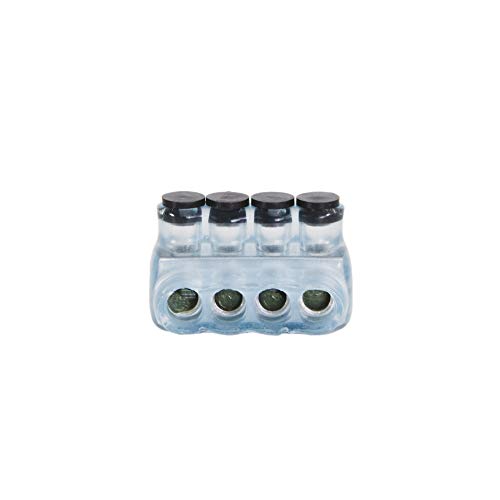

Polaris Vision Tap IPL4-4CB Insulated Connector-4 Port Single-Sided Entry-4-14 AWG-1 Pack-Clear

Polaris Vision Tap IPL4-4CB Insulated Connector-4 Port Single-Sided Entry-4-14 AWG-1 Pack-Clearzoom

Attributes

Key Value
Body MaterialAluminum
Compatible with Product.Copper and Aluminum Con.
Connector TypeSingle-Sided Entry, L
Country of Origin (subj.United States
Direct Burial RatedNo
For Conductor MaterialAluminum, Copper
For Stranded Copper Wir.4 AWG
For Stranded Copper Wir.14 AWG
For Wire Size10 AWG, 12 AWG, 14 AWG,.
Head StyleHex
Hex Size1/8 in
Insulation MaterialPlastisol
ItemInsulated Multitap Conn.
Length1.97 in
Length (Straight Wirewa.1.97 in
Max. Conductor Size4 AWG
Max. Voltage600V AC/DC
Maximum Operating Tempe.194 Degrees F
Maximum Voltage600 V
Min. Conductor Size14 AWG
Minimum Operating Tempe.-49 Degrees F
No. of Ports4
Overall Width1.18 in
RoHS CompliantYes
Screw MaterialSteel
Special FeaturesClear Design Allows for.
StandardsCalifornia Title 24 Com.
Strip Length11/16 in
Stud Size1/8 in
Tap ShapeL
Torque45 in-lb
Width1.18 in
Wire Size Range14 AWG - 4 AWG
