Schneider Electric ATS48C32Y

B00CONNSBO

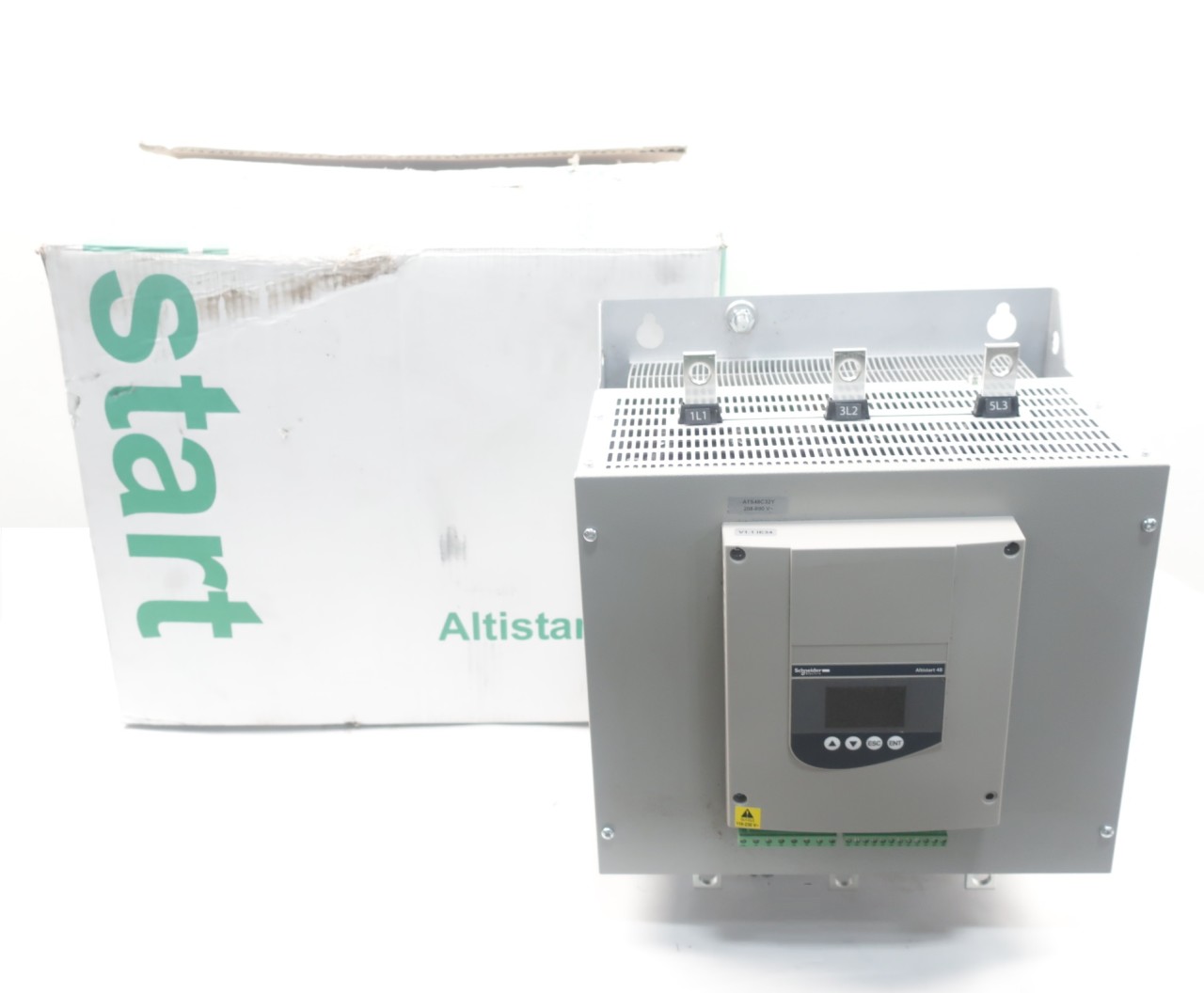

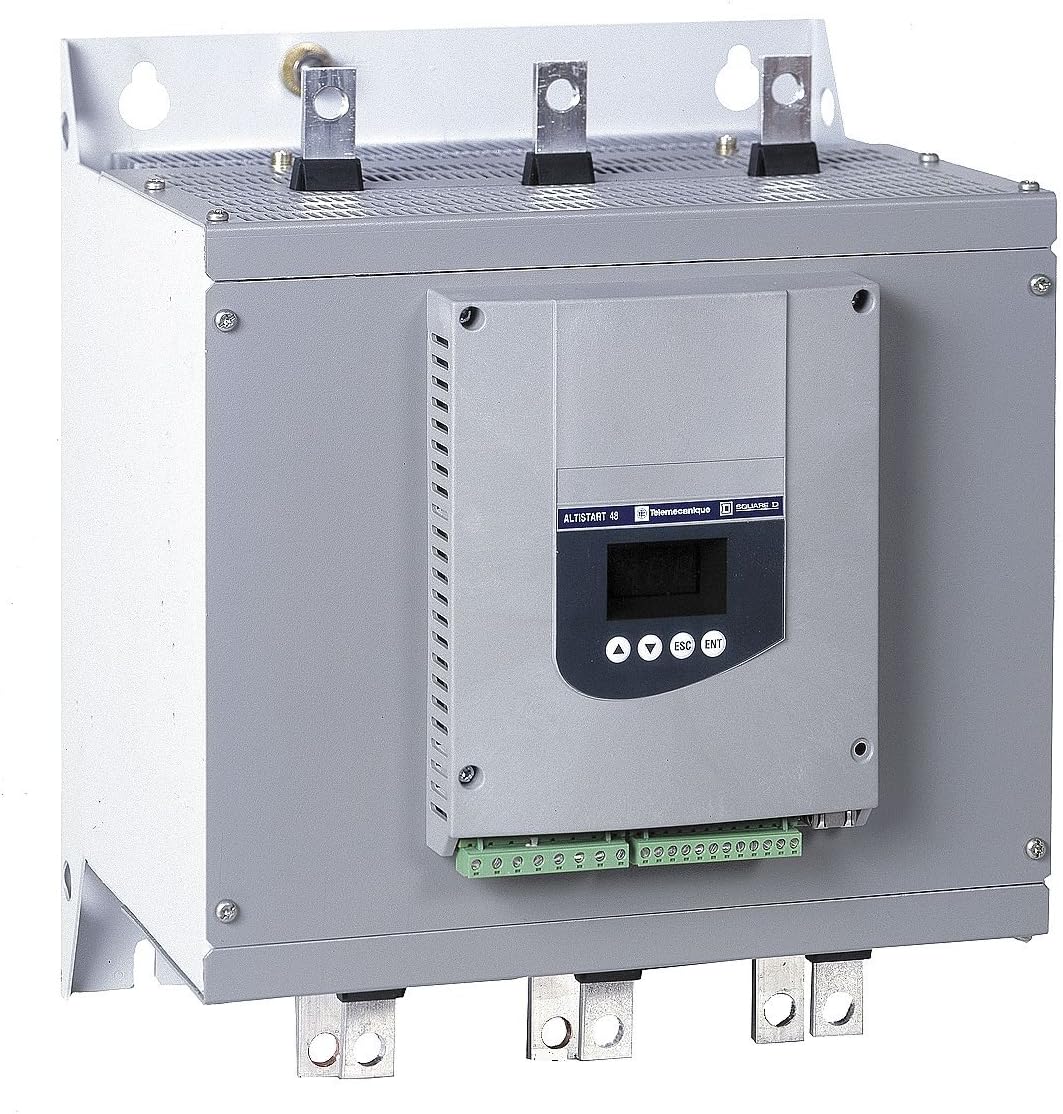

SCHNEIDER ELECTRIC ATS48C32Y Soft Start 208-690V AC320amp Ats48

SCHNEIDER ELECTRIC ATS48C32Y Soft Start 208-690V AC320amp Ats48zoom

Attributes

Key Value
ApplicationHeavy Duty Industry, Pu.
ApprovalsCCC, CSA, IEC 60947-4-2.
ASINB00CONNSBO
Batteries Required?No
BypassYes
Communication PortModbus
Control Voltage110 to 230
Country of OriginID - Indonesia
Current Rating320 A
Depth10.43 in
Display3 Seven -Segment Display
ECCNEAR99
Enclosure RatingIP20, NEMA 1
Enclosure TypeIP00
Family SeriesSquare D Soft Starters
Frequency50/60 Hz
Function TypeStart or Stop
Gross Weight0 lbs
Height14.96 in
Horsepower Rating75 HP
HP @ 3 Phase - 208V100 hp
HP @ 3 Phase - 230V125 hp
HP @ 3 Phase - 240V125 hp
HP @ 3 Phase - 460V250 hp
HP @ 3 Phase - 480V250, 250 hp
HP @ 3 Phase - 575V300 hp
IncludesExclusive motor Torque .
Input Voltage208 to 690V AC
Inputs/Outputs4 Logic Inputs, 1 PTC P.
IP Rating20
ItemSoft Start
Item model numberATS48C32Y
Item NumberATS48C32Y
Item Package Quantity1
ManufacturerSquare D
Manufacturer Part Number116722
Max Current302 A
Maximum Operating Tempe.40 ?C
Minimum Operating Tempe.-10 ?C
Mounting TypePanel Mount
Net Weight40.1238 lbs
Nominal Load Voltage208 V, 240 V, 380 V, 41.
Output Current320 A
Output Power100 hp @ 3 Phase, 208V .
Output Voltage208 to 690V AC
Overall Depth265 mm, 10.43 in
Overall Dimensions380 x 320 x 265 mm
Overall Height14.96 in
Overall Length380 mm
Overall Width12.60 in, 12.6 in, 320 .
Part NumberATS48C32Y
PhaseThree, 3 Phase
Power Rating315 kW
Primary TypeSoft Start
Ramp Time1 to 60 sec.
SeriesAltistart ATS 48 Series.
Size380 H x 320 W x 265 Dia.
Special FeaturesExternal Bypass
StandardsC-Tick, CCC, CSA Certif.
Start TypeTorque Control Start
Starting Torque0% to 400%
Stop Time1 to 60 sec
Supply Voltage208 to 690 V
Temperature (F)14-104 ?F
Temperature Operating R.-10 to +40 ?C
TypeSoft Start
UNSPSC39121521
UPC Code785901982449
Use WithAsynchronous Motors
Voltage Rating208 to 690 V
Width12.6 in
With Bypass / No BypassNo Bypass

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
industrialrefrigerationparts.comATS48C32Y285.391In StockSchneider Electric285.39 @ 1
thumbzoomNRI IndustrialD6581922530.071In StockSCHNEIDER2530.07 @ 1
thumbzoomAmazonB00CONNSBO4170.41In StockSchneider Electric4170.4 @ 1
thumbzoomNex InstrumentATS48C32Y4506.01In StockSchneiderElectric4506.0 @ 1
thumbzoomcappusa.com16816644577.071In StockSquare D4577.07 @ 1
thumbzoomblackhawksupply.comATS48C32Y4888.351In StockSquare-D4888.35 @ 1
thumbzoomZoroG35357865039.531In StockSchneider Electric48.995039.53 @ 1
thumbzoomRadwellATS48C32Y5100.011SCHNEIDER ELECTRIC TELEMECANIQUE5100.0 @ 1
thumbzoommostelectric.comATS48C32Y5407.251In StockSQUARE D/TELEMECANIQUE5407.25 @ 1
thumbzoomGalcoATS48C32Y-SQD5444.341In StockSquare D40.12385444.34 @ 1
AmazonUNKB00CONNSBO5511.851In StockSCHNEIDER ELECTRIC5511.85 @ 1
AmazonTPB007ID1D2Q6004.621In Stock15SCHNEIDER ELECTRIC6004.62 @ 1
thumbzoomsustainablesupply.comC14950846182.861In StockSchneider Electric48.996182.86 @ 1
thumbzoomgordonelectricsupply.comATS48C32Y6295.01In Stock10SQUARE D6295.0 @ 1
us.rs-online.com700077296540.641In StockSchneider Electric6540.64 @ 1
Graybar220538156830.2081In StockSquare D (Schneider Electric)6830.208 @ 1
thumbzoomRaptor SuppliesAG7GFE8240.8361491In StockSCHNEIDER ELECTRIC8240.836149 @ 1
grainger.caSQDATS48C32Y8515.061637221In StockSCHNEIDER ELECTRIC48.998515.06163722 @ 1
