- mpnB230H00S01
- brandname: Siemens
- manufacturername: Siemens

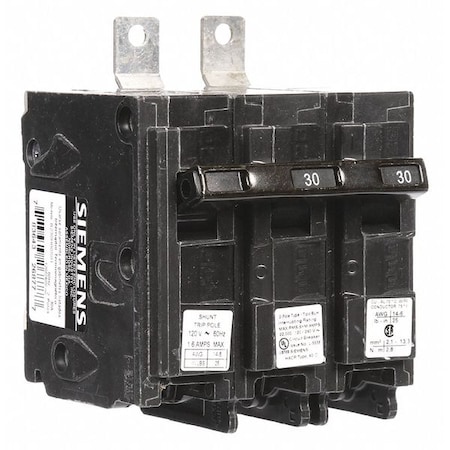

2P Shunt Trip Bolt On Circuit Breaker 30A 120/240VAC
- Brand: SIEMENS
- PartNumber: B230H00S01
- PackageQuantity: 1
- Manufacturer: Siemens
- Label: Siemens
Attributes
| Key | Value |
|---|
| AC Voltage Rating | 120/240V AC |
| Amperage | 30 |
| Amps | 30 A |
| Approval | UL, CSA, NOM |
| ASIN | B007ICTOZK |
| Brand | Siemens |
| Catalog Number | B230H00S01 |
| Category | Circuit Breakers |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mountin. | Bolt On |
| Circuit Breaker Type | Shunt Trip |
| Compatible Panelboard/L. | P1 |
| Connection Type | Bolt-On |
| Continuous current / ra. | 30 A |
| Country of Origin | MX |
| Country of Origin (subj. | Mexico |
| DC Voltage Rating | Not Rated |
| Depth | 6.0 in |
| Design of the overload . | THERMAL-MAGNETIC |
| Design of the product: | BLH |
| Display | B230H00S01 BREAKER 30A . |
| Electrical accessories: | 120VSHUNTTRIP |
| Estimated Weight | 1.25 |
| For Use With | Siemens P1 Panelboards |
| Frame Size | 125A/BLH |
| Functions | LI - Long-Time and Inst. |
| Gtin | 783643268777 |
| Height (in) | 3.56 |
| Height [in]: | 3.5625 in |
| Interrupting Rating | 22kAIC@240V |
| Item | Miniature Circuit Break. |
| Item Package Quantity | 1 |
| Length | 4.0 in |
| Length (in) | 3 |
| Length (Straight Wirewa. | 4.0 in |
| Manufacturer | Siemens Industry, Inc.,. |
| Max. AIR Rating | 22kA at 120/240V AC |
| Max. Wire Size | 6 AWG |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Mounting | Bolt On |
| Mounting Type | Bolt-On |
| Mpn | B230H00S01 |
| Number of Poles | 2 |
| Number Of Poles: | 2 |
| Part Number | B230H00S01 |
| Phase | 1, Single |
| Poles | 2 |
| Product Type | Miniature Circuit Break. |
| Promotion Restriction | Not eligible for promot. |
| Protection | Thermal Magnetic |
| Series | BL, B |
| Size of the circuit-bre. | BL(125A) |
| Standard: | ULLISTED/CSA/NOMCERTIFI. |
| Standards | CSA, HACR, UL |
| Suitability for operati. | ELECTRICALDISTRIBUTION |
| Supply voltage frequenc. | TRUE |
| Terminal Connection | Lug |
| UNSPSC | 39121601 |
| UPC | 783643268777 |
| Upc | 783643268777 |
| Voltage | 240 |
| Voltage / between phase. | 120 V |
| Voltage / between phase. | 240 V |
| Width | 4.0 in |
| Width (in) | 2 |
| Wire Gauge | 14 AWG (Cu), 12 AWG (Al. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | AmazonSC | B007ICTOZK | 99.99 | 1 | In Stock | | Siemens | | 99.99 @ 1 |
| steinerelectric.com | 881036 | 133.08 | 1 | In Stock | | Siemens | | 133.08 @ 1 |
| simplybreakers.com | B230H00S01 | 170.49 | 1 | In Stock | | Siemens\/ITE | | 170.49 @ 1 |
 | Allfuses | B230H00S01 | 193.94 | 1 | 9 | | Siemens | | 193.94 @ 1 |
 | superbreakers.com | B230H00S01 | 194.6 | 1 | 4 | | Siemens | | 194.6 @ 1 |
| Dale-Electric | B230H00S01 | 252.0 | 1 | In Stock | | Siemens Industry, Inc. | | 252.0 @ 1 |
 | industrialzone.com | B230H00S01 | 363.25 | 1 | In Stock | | Siemens | 1.26 | 363.25 @ 1 |
 | Zoro | G2055496 | 408.04 | 1 | In Stock | 30 | Siemens | 1.15 | 408.04 @ 1 |
 | motorsandcontrol.com | B230H00S01 | 511.2 | 1 | In Stock | | Siemens | 1.25 | 511.2 @ 1 |
 | sustainablesupply.com | C2812487 | 578.14 | 1 | In Stock | | Siemens | 1.15 | 578.14 @ 1 |
| Grainger | 6EVJ4 | 583.5 | 1 | In Stock | 30 | SIEMENS | | 583.5 @ 1 |
| kirbyrisk.com | 2365839 | 709.79 | 1 | In Stock | | Siemens | | 709.79 @ 1 |
 | crescentelectric.com | 146262 | 714.82 | 1 | In Stock | | Siemens | | 714.82 @ 1 |
 | turtle.com | ITE B230H00S01 | 765.16 | 1 | In Stock | | Siemens | | 765.16 @ 1 |
