Cle-line C20470

mpnC20470
brandname: Cle-Line
manufacturername: Cle-Line

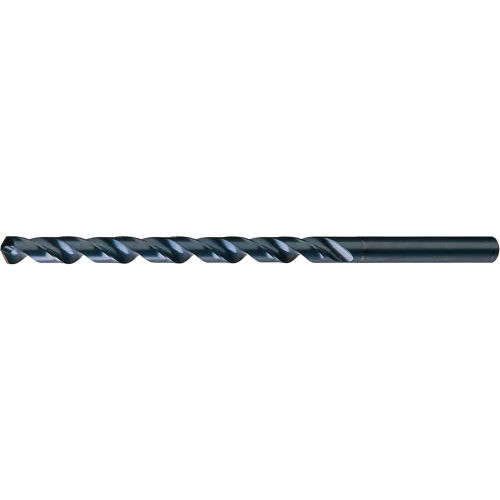

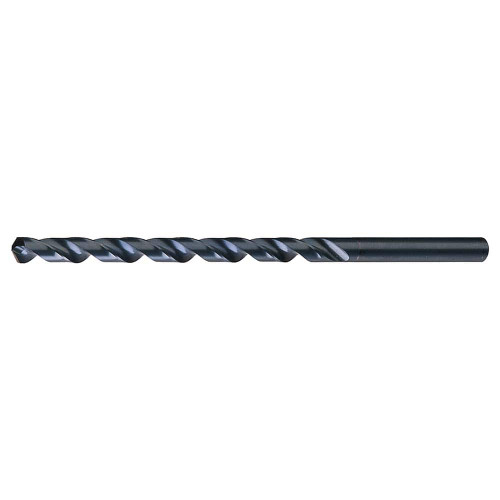

Cle-Line C20470 Extra Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 21/32" Drill Diameter

Cle-Line C20470 Extra Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 21/32" Drill Diameter

zoom

Brand: Cle-line
PartNumber: C20470
Model: C20470
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Low Carbon, Stainless S.
Coolant Fed	Non-Coolant Through
Cutting Depth	9 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.6562
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.6562"
Diameter (Fraction)	21/32"
Drill Bit Point Angle	118 Degrees
Drill Bit Size	21/32 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0012 in
Drill Length Class	Extra Long
Drill Point Length	0.1972 in
Drill Size - Decimal In.	0.6562 in
Drill Size - Fraction	21/32 in
Drill Size System	Fractional
Drill Style	Extra Length Drill
Finish	Black Oxide/Steam Oxide
Finish - Machining	Black Oxide
Flute Length	9 in, 9.0000"
Flute Length (Metric)	228.60mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Extra Long Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	2 5/8 in
Number of Flutes	2
Overall Length	12 in, 12.0000"
Overall Length (Metric)	304.80mm
Point Angle	118 deg, 118?
Point Style	Notched
Point Type	Notched
Primary Material Applic.	Cast Iron, Steel
Primary Material Applic.	K, P
Series	1806
Shank Configuration	Straight
Shank Dia.	21/32 in
Shank Length	3.0000", 3 in
Shank Length (Metric)	76.20mm
Shank Size	0.6563", 21/32 in
Shank Size (Metric)	16.67mm
Shank Type	Straight
Shank Type - Machining	Straight
SKU	C20470
Standards	ASME B94.11M
Style	1806
Surface Condition	Steam Oxide
Through Coolant (Yes/No)	No
Tool Size	21/32"
Type	General Purpose Heavy D.
UPC	6.97E+11

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	heavydutydepot.com	C20470	58.39	2	In Stock		Cle-Line		58.39 @ 2
	Megadepot	C20470	58.95	1	In Stock		Cle-Line		58.95 @ 1
	Global Industrial	WBB2543865	59.95	1	In Stock		Cle-Line		59.95 @ 1
	usmegastore.com	C20470	61.95	1	In Stock		Cle-Line		61.95 @ 1
	Zoro	G4958801	65.11	1	In Stock	26	Cle-Line	0.79	65.11 @ 1
	MRO Supply	6123828	65.11	1	In Stock		Cle-Line		65.11 @ 1
	imsbolt.com	C20470	116.27	1	In Stock		CLE-LINE		116.27 @ 1
