Cle-line C20526

mpnC20526
brandname: Cle-Line
manufacturername: Cle-Line

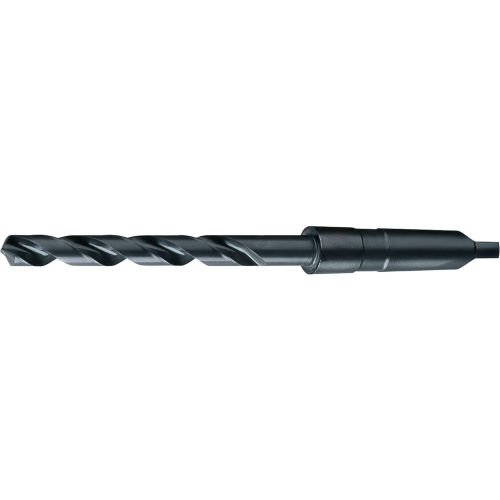

Cle-Line C20526 General Purpose Taper Shank Drill, High Speed Steel, Steam Oxide Finish, No.1 Morse Taper Shank, 118-Degree Radial Point, 13/32" Drill Diameter

Cle-Line C20526 General Purpose Taper Shank Drill, High Speed Steel, Steam Oxide Finish, No.1 Morse Taper Shank, 118-Degree Radial Point, 13/32" Drill Diameter

zoom

Brand: Cle-line
PartNumber: C20526
Model: C20526
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Alloy Steel, Carbon Ste.
Application	General Purpose Drilling
Coolant Fed	Non-Coolant Through
Cutting Depth	3-5/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.4062
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.4062"
Diameter (Fraction)	13/32"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black Oxide
Drill Bit Point Angle	118 Degrees
Drill Bit Size	13/32 in
Drill Construction	General Purpose
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Size - Decimal In.	0.4062 in
Drill Size - Fraction	13/32 in
Drill Size System	Fractional
Drill Style	Taper Shank Drill
Finish	Black Oxide
Finish - Machining	Black Oxide
Flute Length	13/32", 3 5/8 in, 3-5/8.
Flute Length (Metric)	92.07mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Taper Shank Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	3 5/8 in
Measurement System	Fractional Inch
Number of Flutes	2
Overall Length	7 in, 7.0000"
Overall Length (Metric)	177.80mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Series	1894
Shank Configuration	#1 Morse Taper
Shank Length	3.3750"
Shank Length (Metric)	85.72mm
Shank Taper Designation	#1 Morse Taper
Shank Type - Machining	Taper
Standards	ASME B94.11M
Style	1894
Surface Condition	Steam Oxide
Taper Shank Size	MT1
Through Coolant (Yes/No)	No
Tool Size	13/32"
Type	General Purpose Regular.
