- mpnC20579
- brandname: Cle-Line
- manufacturername: Cle-Line

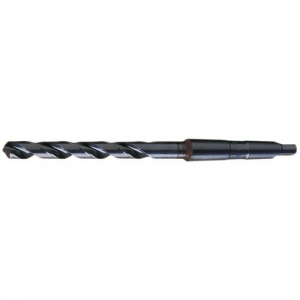

Cle-Line C20579 General Purpose Taper Shank Drill, High Speed Steel, Steam Oxide Finish, No.4 Morse Taper Shank, 118-Degree Radial Point, 1 15/64" Drill Diameter
- Brand: Cle-Line
- PartNumber: C20579
- Model: C20579
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | General Purpose Drilling |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Cutting Depth | 7-7/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 1.2344 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 1.2344" |
| Diameter (Fraction) | 1-15/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Point Angle | 118 ?, 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 1 15/64 in, 1-15/64 in |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0015 in |
| Drill Size - Decimal In. | 1.2344 in |
| Drill Size - Fraction | 1-15/64 in |
| Drill Size System | Fractional |
| Drill Style | Taper Shank Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 7 7/8 in, 7-7/8 in, 7.8. |
| Flute Length (Metric) | 200.02mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Taper Shank Drill Bit |
| Item? | 50AY80 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 7 7/8 in, 7-7/8 in |
| Measurement System | Fractional Inch |
| Mfr. Model? | C20579 |
| Number of Flutes | 2 |
| Overall Length | 13 1/2 in, 13-1/2 in, 1. |
| Overall Length (Metric) | 342.90mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Cast Iron; Steel |
| Primary Material Applic. | K, P, K; P |
| Series | 1894 |
| Shank Configuration | #4 Morse Taper |
| Shank Length | 5.6250" |
| Shank Length (Metric) | 142.88mm |
| Shank Taper Designation | #4 Morse Taper |
| Shank Type - Machining | Taper |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M |
| Style | 1894 |
| Surface Condition | Steam Oxide |
| Taper Shank Size | MT4 |
| Through Coolant (Yes/No) | No |
| Tool Size | 1-15/64" |
| Type | General Purpose Regular. |
| UNSPSC | 27112801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C20579 | 70.93 | 1 | In Stock | | Cle-Line | | 70.93 @ 1 |
 | heavydutydepot.com | C20579 | 70.93 | 2 | In Stock | | Cle-Line | | 70.93 @ 2 |
 | Zoro | G4953518 | 75.13 | 1 | In Stock | 10 | Cle-Line | 2.99 | 75.13 @ 1 |
 | MRO Supply | 6123893 | 77.39 | 1 | In Stock | | Cle-Line | | 77.39 @ 1 |
 | Global Industrial | WBB2544169 | 80.95 | 1 | In Stock | | Cle-Line | | 80.95 @ 1 |
 | usmegastore.com | C20579 | 81.67 | 1 | In Stock | | Cle-Line | | 81.67 @ 1 |
| Grainger | 50AY80 | 119.22 | 1 | In Stock | | CLE-LINE | | 119.22 @ 1 |
