Cle-Line C23027

mpnC23027
brandname: Cle-Line
manufacturername: Cle-Line

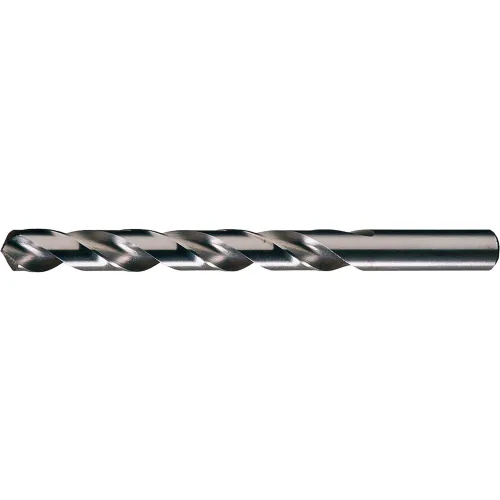

Cle-Line C23027 General Purpose Jobber Length Drill, High Speed Steel, Bright Finish, Straight Shank, 118-Degree Radial Point, Wire Size 57 (Pack of 12)

Cle-Line C23027 General Purpose Jobber Length Drill, High Speed Steel, Bright Finish, Straight Shank, 118-Degree Radial Point, Wire Size 57 (Pack of 12)

zoom

Brand: Cle-Line
PartNumber: C23027
Model: C23027
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Alloy Steel, Carbon Ste.
Coolant Fed	Non-Coolant Through
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.0430
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.0430"
Diameter (Wire/Let)	57
Drill Bit Dimension Type	Wire
Drill Bit Finish	Bright (Uncoated)
Drill Bit Grouping	Drill Bit
Drill Bit Point Angle	118 Degrees
Drill Bit Size	#57
Drill Construction	General Purpose
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in/-0.0005 in
Drill Length Class	Jobber Length
Drill Point Length	0.0129 in
Drill Size - Decimal In.	0.043 in
Drill Size - Wire	#57
Drill Size System	Wire
Drill Style	Jobber Drill
Finish	Bright
Flute Length	0.7500", 3/4 in
Flute Length (Metric)	19.05mm
Flute Type	Right Spiral, Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	21 Degrees to 34 Degre.
Item	Jobber Length Drill Bit
List Number	1898
Material	HSS
Maximum Drilling Depth	9/16 in
Number of Flutes	2
Overall Length	1.7500", 1 3/4 in, 1-3/.
Overall Length (Metric)	44.45mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Series	1898
Shank Configuration	Straight
Shank Dia.	1/32 in
Shank Length	1 in, 1.0000"
Shank Length (Metric)	25.40mm
Shank Size	0.0430", 0.043 in Dia x.
Shank Size (Metric)	1.09mm
Shank Type	Straight
Standards	ASME B94.11M
Style	1898
Surface Condition	Bright
Through Coolant (Yes/No)	No
Tool Size	#57

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Global Industrial	WBB2544808	0.8387	12	12		Cle-Line		0.8387 @ 12
	Megadepot	C23027	0.95	1	12		Cle-Line		0.95 @ 12
	heavydutydepot.com	C23027	0.95	106	12		Cle-Line		0.95 @ 106
	usmegastore.com	C23027	0.99	1	12		Cle-Line		0.99 @ 12
	MRO Supply	6124566	1.02	50	12		Cle-Line		1.02 @ 50
	Zoro	G4945748	13.08	1	12		Cle-Line	0.07	13.08 @ 12
