Dayton 2ZXJ1

mpn2ZXJ1
brandname: DAYTON
manufacturername: DAYTON

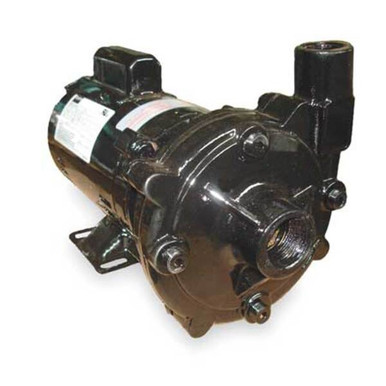

Dayton 2ZXJ1 Centrifugal Pump, 1/2 HP, 1Ph, 115/230V

Brand: Dayton
PartNumber: 2ZXJ1
Model: 2ZXJ1
PackageQuantity: 1
Manufacturer: DAYTON
Label: DAYTON

Attributes

Key	Value
Best Efficiency Flow	29 gpm
Best Efficiency Head	47 ft
Brand	Dayton
Compatible Discharge Pi.	1 in
Compatible Intake Pipe .	1 1/4 in
Compatible with Media T.	Non-Flammable Liquids
Current Stock	3
Discharge Rotation	90 Degrees Increments
Discharge Type	NPT
Duty Cycle	Continuous
Features	Continuous High Pressur.
Feet of Head (Minimum)	10 ft
Flow Rate @ 10 ft of He.	42 gpm
Flow Rate @ 20 ft of He.	39 gpm
Flow Rate @ 30 ft of He.	36 gpm
Flow Rate @ 40 ft of He.	32 gpm
Flow Rate @ 50 ft of He.	28 gpm
Flow Rate @ 60 ft of He.	21 gpm
Flow Rate @ 70 ft of He.	15 gpm
Frequency	60 Hz
Height	8 1/2 in
Horsepower	1/2 hp
Housing Material - Pumps	Cast Iron
HP - Pumps	1/2 hp
Impeller Design	Closed
Impeller Material	Cast Iron
Includes	Manual
Inlet Size - Pumps	1-1/4 in NPT
Intake and Discharge Si.	1 1/4 in , 1 in
Intake Type	NPT
International Shipping	No
Item	Centrifugal Pump
Lead Time	Expected to ship in 1-2.
Length	14 3/4 in
Length (Straight Wirewa.	14 3/4 in
Manufacturer Warranty L.	1 yr
Manufacturers Warranty .	1 yr
Max. Dia. Solids	5/16 in
Max. Head	82 ft
Max. Pressure - Pumps	35 psi
Maximum Feet of Head	70 ft
Maximum Media Temperatu.	200 Degrees F
Maximum RPM	3,450 RPM
Motor Enclosure	Open Dripproof
Motor Enclosure - Pumps	Open Dripproof
Motor Frame Designation	56J
Motor Type	ODP
Mpn	2ZXJ1
Nameplate Voltage	115/230V AC
Outlet Size - Pumps	1 in NPT
Overall Height	8.5 in
Overall Length	14.7 in
Overall Width	7.9 in
Phase	Single
Phase - Pumps	1
Prop 65	WARNING: Cancer and Rep.
Pump Housing Material	Cast Iron
Pumping Application	Aggressive Liquid Appli.
Seal Material	Viton
Seal Type	Mechanical
Shaft Material	Stainless Steel
Shut Off Pressure (Maxi.	35 psi
SKU	ZO-G2998073
Solid Diameter (Maximum)	0.31 in
Specific Gravity (Maxim.	1
Standards	UL Listed (Motor Only)
SubCategory	Pumps
UPC	190735242469
Voltage - Pumps	120/240V AC
Wetted Material	Carbon, Cast Iron, Cera.
Width	8 in

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
grainger.ca	GGM2ZXJ1	374.29089614	1	In Stock		DAYTON	40.0	374.29089614 @ 1
Zoro	G2998073	399.08	1	1		Dayton	40.0	399.08 @ 1
simsupply.com	ZO-G2998073	445.04	1	3		Dayton		445.04 @ 1
sustainablesupply.com	C1740545	589.29	1	In Stock		Dayton	40.0	589.29 @ 1
AmazonTP	B001QROUMK	591.8	1	In Stock	2	Dayton		591.8 @ 1
AmazonSC	B001QROUMK	591.83	1	In Stock		Dayton		591.83 @ 1
Raptor Supplies	AC4HQC	720.6125355	1	In Stock		DAYTON		720.6125355 @ 1
