- mpnFG-201F
- brandname: FORTINET FORTIGATE
- manufacturername: FORTINET FORTIGATE

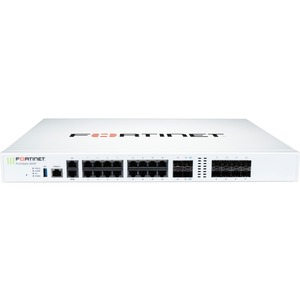

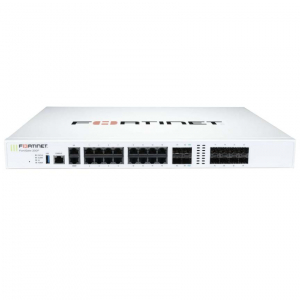

Fortinet FortiGate 201F | 27 Gbps Firewall Throughput | 3 Gbps Threat Protection
- Brand: FORTINET
- PartNumber: FG-201F
- Size: FG-201F
- PackageQuantity: 1
- Manufacturer: FORTINET
- Label: FORTINET
Attributes
| Key | Value |
|---|
| 10 GE SFP+ FortiLink Sl. | 2 |
| 10 GE SFP+ Slots | 2 |
| AC Power Supply | 100-240V AC, 50/60 Hz |
| Application Control Thr. | 13 Gbps |
| Bluetooth Low Energy (B. | Yes |
| Brand | Fortinet |
| Brand Name | Fortinet |
| CAPWAP Throughput (HTTP. | 20 Gbps |
| Certification | USGv6/IPv6 |
| Client-to-Gateway IPsec. | 16 000 |
| Compatible Rack Unit | 1U |
| Compliance | FCC Part 15B, Class A, . |
| Concurrent Sessions (TC. | 3 Million |
| Concurrent SSL-VPN User. | 500 |
| Connectivity Type | Wired |
| Console Port | 1 |
| Current (Maximum) | 100V / 2A, 240V / 1.2A |
| Depth | 13.5, 34.2 |
| Device Type | Security appliance |
| Encryption Algorithm | SSL, TLS 1.3 |
| Encryption Standard | AES (256-bit), SHA-256 |
| Ethernet Technology | 10 Gigabit Ethernet |
| Expansion Slot Type | SFP (mini-GBIC), SFP+ |
| Firewall Latency (64 by. | 4.78 ?s |
| Firewall Policies | 10 000 |
| Firewall Protection Sup. | Threat Protection, Malw. |
| Firewall Throughput (Pa. | 16.5 Mpps |
| Forced Airflow | Side to Back |
| Form Factor | Rack-mountable |
| Form Factor (supports E. | Ear Mount, 1 RU |
| Frequency | 50 Hz, 60 Hz |
| Gateway-to-Gateway IPse. | 2000 |
| GE RJ45 Management / HA | 1 / 1 |
| GE RJ45 Ports | 16 |
| GE SFP Slots | 8 |
| Heat Dissipation | 436.98 BTU/h |
| Height | 4.4, 1.7 |
| Height x Width x Length. | 1.73 x 17.01 x 13.47 |
| Height x Width x Length. | 44 x 432 x 342 |
| Humidity | 20%-90% non-condensing |
| Included Transceivers | 0 |
| Installation Type | Rack-mountable |
| Interfaces | Multiple GE RJ45, GE SF. |
| IPS | 5 Gbps |
| IPS Throughput | 5 Gbps |
| IPsec VPN Throughput (5. | 13 Gbps |
| IPv4 Firewall Throughpu. | 27 / 27 / 11 Gbps |
| Limited Warranty | 1 Year |
| Manageable | Yes |
| Manufacturer | Fortinet, Fortinet, Inc |
| Manufacturer Part Number | FG-201F |
| Manufacturer Website Ad. | http://www.fortinet.com |
| Maximum Number of Forti. | 256 / 128 |
| Maximum Number of Forti. | 64 |
| Maximum Number of Forti. | 5000 |
| Model | 201F |
| Network / Transport Pro. | UDP/IP, HTTP, TCP/IP, H. |
| Network Standard | 10/100/1000Base-T, 1000. |
| Networking / Data Link . | Ethernet, Fast Ethernet. |
| NGFW | 3.5 Gbps |
| NGFW Throughput | 3.5 Gbps |
| Noise Level | 49.9 dBA |
| Number of Network (RJ-4. | 17 |
| Number of SFP Slots | 8 |
| Number of SFP+ Slots | 4 |
| Number of Total Expansi. | 12 |
| Number of VPN Supported | 500 |
| Onboard Storage | 1x 480 GB SSD |
| Operating Altitude | Up to 7400 ft (2250 m) |
| Operating Temperature | 32?-104?F (0?-40?C) |
| Packaged Quantity | 1 |
| Power Consumption (Aver. | 104.52 W / 121.94 W |
| Power Supply Efficiency. | 80Plus Compliant |
| Product Color | White |
| Product Line | FortiGate, Fortinet For. |
| Product Model | FG-201F |
| Product Name | FortiGate FG-201F Netwo. |
| Product Series | 200F |
| Product Type | Network Security/Firewa. |
| Redundant Power Supplies | Yes (Default dual non-s. |
| Remote Management Proto. | HTTP, HTTPs |
| Sessions/Second (TCP) | 280 000 |
| SSL Inspection Concurre. | 300 000 |
| SSL Inspection CPS (IPS. | 3500 |
| SSL Inspection Throughp. | 4 Gbps |
| SSL-VPN Throughput | 2 Gbps |
| Storage Temperature | -31?-158?F (-35?-70?C) |
| Threat Protection | 3 Gbps |
| Threat Protection Throu. | 3 Gbps |
| Total Number of Ports | 18 |
| Trusted Platform Module. | Yes |
| USB | Yes |
| USB Port | 1 |
| Virtual Domains (Defaul. | 10 / 10 |
| Weight | 10.14 lbs (4.6 kg), 4.6 |
| Weight (Approximate) | 10.14 lb |
| Width | 17, 43.2 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | PCNation | 8NB229 | 3431.25 | 1 | In Stock | | FORTINET SME PRODUCTS | 1.0 | 3431.25 @ 1 |
 | ipcstore.com | 6_FG-201F_1 | 5950.0 | 1 | In Stock | | Fortinet | | 5950.0 @ 1 |
 | primebuy.com | FG-201F | 6294.0 | 1 | In Stock | | Fortinet | 10.14 | 6294.0 @ 1 |
