Hoffman 4RD30

mpn4RD30
brandname: HOFFMAN PUMP
manufacturername: HOFFMAN PUMP

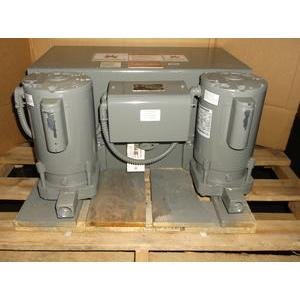

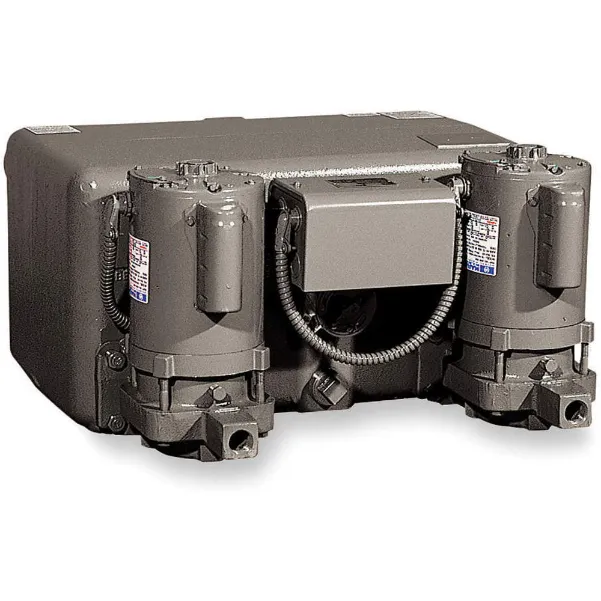

HOFFMAN 4RD30/W60013 1/3HP DUPLEX WATCHMAN CONDENSATE RETURN SYSTEM,18 GPM,WELDED STEEL, 115-230/60/1 RPM:3450/1SPEED

HOFFMAN 4RD30/W60013 1/3HP DUPLEX WATCHMAN CONDENSATE RETURN SYSTEM,18 GPM,WELDED STEEL, 115-230/60/1 RPM:3450/1SPEED

zoom

Brand: Hoffman
PartNumber: 4RD30
Color: SEE PICTURE
Manufacturer: HOFFMAN
Label: HOFFMAN

Attributes

Key	Value
Amps	4/7.2 A
Body Gasket Material	Carbon, Ceramic
Compatible Discharge Pi.	3/4 in
Compatible Intake Pipe .	2 in
Compatible Media Type	Water
Discharge Connection St.	NPT
Drain Port Size	1/2 in
Equivalence of Direct R.	12,000
For Use With Potable Sy.	No
Frequency	60 Hz
Horsepower	1/3 hp
Impeller Material	Bronze
Intake Connection Style	NPT
Item	Condensate Return System
Manufacturer Warranty L.	20 yr
Maximum Feet of Head	52 ft
Maximum Flow Rate @ 30 .	33 gpm
Maximum Flow Rate @ 35 .	30 gpm
Maximum Flow Rate @ 40 .	30 gpm
Maximum Flow Rate @ 45 .	21 gpm
Maximum Flow Rate @ 50 .	12 gpm
Maximum Media Temperatu.	200 Degrees F
Maximum RPM	3,500 RPM
Motor Enclosure Design	Open Drip-Proof
Nameplate Voltage	115/230V AC
Number of Intakes	1
Number of Pumps	2
Overall Height	12.94 in
Overall Length	22.5 in
Overall Width	22.88 in
Overflow Port Pipe Size	2 in
Phase	Single
Pump Activation Type	Float Switch
Pump Housing Material	Cast Iron
Pump Mounting Position	Vertical
Pump Type	Duplex
Series	WCSD12-20 B-MA
Series Family	WCS
Tank Capacity	14 gal
Tank Material	Welded Steel
Vent Line Port Pipe Size	1 1/4 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	sustainablesupply.com	C1740827	4131.58	1	In Stock		Hoffman Electrical	142.0	4131.58 @ 1
	grainger.ca	WWG4RD30	5297.34589742	1	In Stock		HOFFMAN PUMP	142.0	5297.34589742 @ 1
	Raptor Supplies	AD9EJG	6569.7833565	1	In Stock		HOFFMAN		6569.7833565 @ 1
