Johnson Controls T-3111-1

mpnT-3111-1
brandname: JOHNSON CONTROLS
manufacturername: JOHNSON CONTROLS

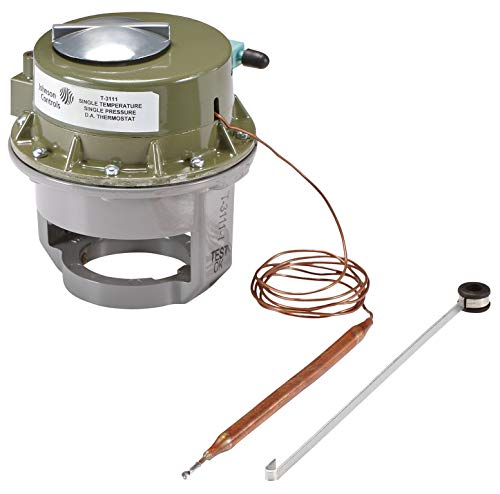

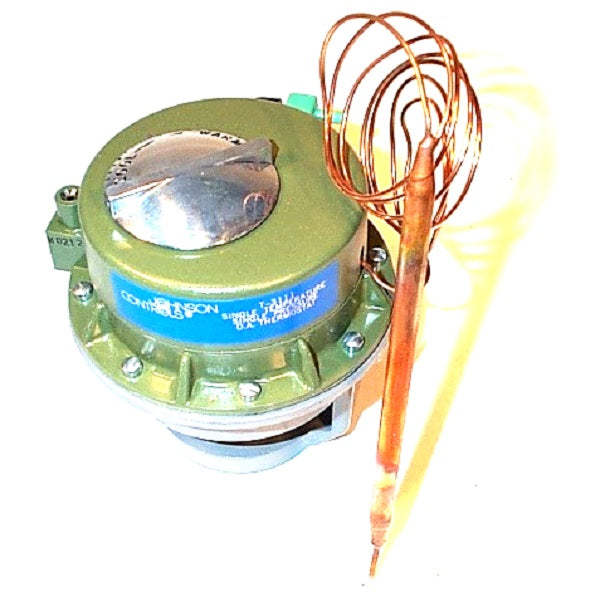

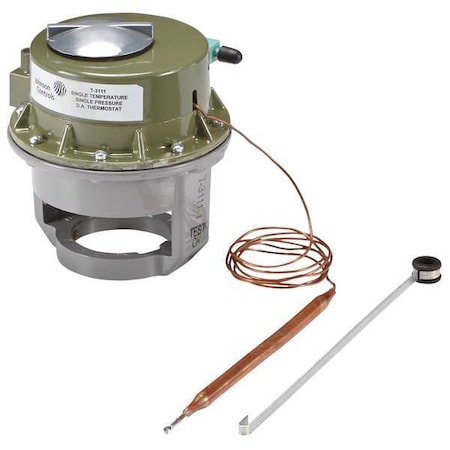

Johnson Controls T-3111-1 Pneumatic Thermostat, DA, 60 to 150 Degree F

Brand: Johnson Controls
PartNumber: T-3111-1
Model: T-3111-1
PackageQuantity: 1
Binding: Misc.
Manufacturer: Johnson Controls Inc
Label: Johnson Controls Inc

Attributes

Key	Value
Action Type	Direct Acting
Action Type - Pneumatic.	Direct Acting
Air Connection Outside .	1/4 in
Air Connections	1/4 in Barb
Air Consumption	1.5 scim, 1.5 scfm
Air Flow Output	High Volume
Air Restrictor Required	Yes
Application	Heat and Cool
Best Sellers Rank	See Top 100 in Industri.
Brand	Johnson Controls
Capillary Length	42 in
Control Air Pressure	0 to 25 psi
Control Air Pressure Se.	0 psig (Day)/ 25 psig (.
Country of Origin	Mexico
Date First Available	July 5, 2012
Depth	5 in
Dial Configuration	Warm/Cold
Differential Type	Adjustable
Element Type	Bulb
Family Series	Johnson Controls Miscel.
Fitting Connection	Barbed 1/4 in
Gross Weight	2.37 lbs
Heating / Cooling	Heating and Cooling
Height	5 in
Includes	Bracket and Cover, Moun.
Includes Cover	Yes
International Shipping	No
Item	Pneumatic Thermostat
Item Dimensions LxWxH	5.9 x 5.9 x 11.3 inches
Item model number	T-3111-1
Item Number	T-3111-1
Item Weight	2 Pounds
Key Features	Automatically Changes B.
Manual Indexing Switch	No
Manufacturer	Johnson Controls, Johns.
Manufacturer Part Number	T-3111-1
Material	HAWA
Max. Air Pressure	25 psi
Max. Ambient Temp.	150 Degrees F
Maximum Air Pressure	25 psig
Maximum Control Tempera.	150 Degrees F
Minimum Control Tempera.	60 Degrees F
Mounting Direction	Valve Top
Mounting Direction/Capi.	Valve Top, 42 in
Mounting Location	Valve Top
Mpn	T-3111-1
Net Weight	1.725 lbs
Number of Dials	Single
Number of Pipes	2
Pneumatic Thermostat Ty.	Piston Valve Actuator w.
Pneumatic Thermostat Ty.	Piston Valve Actuator &.
Product Dimensions	5.9 x 5.9 x 11.3 inches.
Product with faster shi.	true
Reverse Acting / Direct.	Direct Acting
Shape	Inline
Shipping	undefined (Fixed Shippi.
Single Temp. / Dual Tem.	Dual Temperature
SKU	ZO-G5063265
Temp. Control Range	60 Degrees to 150 Degr.
Temperature Output Sett.	Dual Temperature
Temperature Scale	Celsius/Fahrenheit
Temperature Settings	Single Temperature
Thermostat Action	Direct
Thermostat Application	Heating and Cooling
UPC	78502836523
Weight	2.00
Width	5 in

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
homeessentialsdirect.com	T-3111-1	275.79	1	In Stock		Johnson Controls Inc		275.79 @ 1
hvacdiscountstore.com	JOH--T-3111-1	336.0	1	In Stock		JOHNSON CONTROLS		336.0 @ 1
cappusa.com	649058	344.51	1	In Stock		Johnson Controls		344.51 @ 1
alliedcontrols.com	T-3111-1	349.12	1	In Stock		Johnson Controls		349.12 @ 1
blackhawksupply.com	T-3111-1	363.36	1	In Stock		Johnson Controls		363.36 @ 1
midwestapplianceparts.com	T-3111-1-JO-P	369.61	1	In Stock		Johnson Controls		369.61 @ 1
waterpumpsnow.com	T-3111-1	383.9	1	In Stock		Johnson	3.1	383.9 @ 1
Zoro	G5063265	386.26	1	In Stock		Johnson Controls	2.31	386.26 @ 1
Radwell	T-3111-1	390.0	1	In Stock		JOHNSON CONTROLS		390.0 @ 1
Voomi Supply	T-3111-1	409.21	1	In Stock		Johnson Controls		409.21 @ 1
gsistore.com	T-3111-1	417.82	1	In Stock		Johnson Controls		417.82 @ 1
industrialstores.com	T-3111-1	433.08	1	In Stock	19	Johnson Controls		433.08 @ 1
grainger.ca	JHCT31111	440.76746768	1	In Stock		JOHNSON CONTROLS	2.31	440.76746768 @ 1
simsupply.com	ZO-G5063265	452.71	1	In Stock		Johnson Controls		452.71 @ 1
Galco	T-3111-1-JHSN	461.2	1	3		Johnson Controls	2.37	461.2 @ 1
uri.com	T31111	916.12	1	In Stock		Johnson Controls	5.74	916.12 @ 1
