- mpn143TTDR16048
- brandname: Marathon Motors
- manufacturername: Marathon Motors

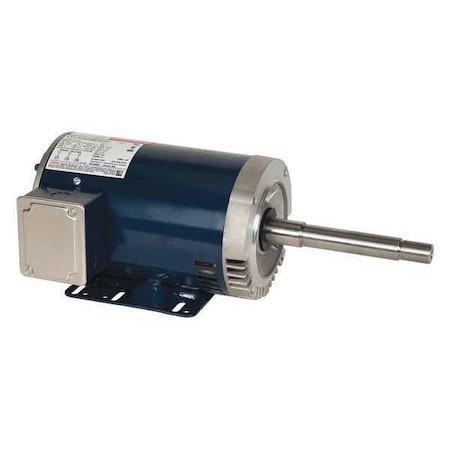

Marathon Motors 1 HP Close-Coupled Pump Motor,3-Phase,1760 Nameplate RPM,230/460 Voltage,143JP
- Brand: CAI - MARATHON MOTORS
- PartNumber: 143TTDR16048
- PackageQuantity: 1
- Manufacturer: CAI - MARATHON MOTORS
- Label: CAI - MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Application | Application |
| Approval | Approval |
| CC Number | CC003A |
| Classification | Globetrotter PREMIUM |
| Composition | Rolled steel |
| Constant Torque Speed R. | Constant Torque Speed R. |
| Country of Origin (subj. | United States |
| Duty | Continuous |
| Efficiency | Efficiency |
| Efficiency % | 85.5 % |
| Enclosure | ODP, Open |
| Family Series | Marathon Electric Motors |
| Frame | 143JP |
| Frame Material | Rolled steel, Frame Mat. |
| Frame Remarks | C-Face Rigid |
| Frequency Rating | Frequency Rating |
| Full Load Amps | 3.0/1.5 |
| Gross Weight | 0 lbs |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60/50 |
| Ins. Class | F |
| Insulation Class | Insulation Class |
| Inverter Rated | Yes |
| Item | Close-Coupled Pump Motor |
| Item Condition | Factory New |
| Item Number | 143TTDR16048 |
| Kilowatts | 0.75 kW |
| Length Less Shaft | 10-7/8" |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | GT2401 |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor FLA | Motor FLA |
| Motor Frame Material | Rolled steel |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | JP Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Close-Coupled Pump |
| Motor Thermal Protection | None |
| Mounting Type | Footed |
| Nameplate RPM | 1760 |
| NEMA Frame | 143JP |
| Net Weight | 46 lbs |
| Nominal Efficiency | 86.5% |
| Nominal Voltage | 240 VAC, 277 VAC, 347 V. |
| Number of Speeds | Number of Speeds |
| Overall Length | 18-3/16" |
| Phase | 3 |
| RPM | 1,760 RPM, 1800 |
| RPM Range | 1701-1800 |
| Service Factor | Service Factor, 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 7-5/16" |
| Speeds | Speeds |
| Standards | UL Recognized (E49747),. |
| Unspsc | Unspsc |
| Variable Torque Speed R. | Variable Torque Speed R. |
| Voltage | 230/460 |
| Voltage (AC) | 230 VAC, 460 VAC |
| Voltage Compatibility | 460, 230/460, 220-230/4. |
| Volts | 230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G8818747 | 341.71 | 1 | In Stock | | Marathon Motors | | 341.71 @ 1 |
 | Galco | 143TTDR16048-MARA | 533.5 | 1 | In Stock | | Marathon Electric | 46.0 | 533.5 @ 1 |
 | mecampbell.com | 143TTDR16048 | 550.17 | 1 | In Stock | 33 | Marathon Motors | | 550.17 @ 1 |
 | Dealers Electric | 143TTDR16048 | 569.98 | 1 | In Stock | | Marathon Electric | 46.0 | 569.98 @ 1 |
 | Raptor Supplies | AG3CEE | 939.3673185 | 1 | In Stock | | MARATHON MOTORS | | 939.3673185 @ 1 |
