Martin D35B84

B0045JJSRI

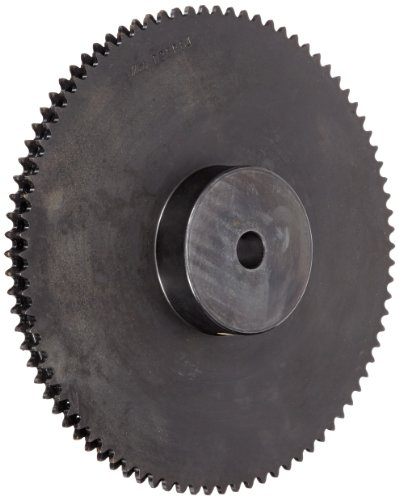

Martin Roller Chain Sprocket, Reboreable, Type B Hub, Double Strand, 35 Chain Size, 0.375" Pitch, 84 Teeth, 0.75" Bore Dia., 10.247" OD, 3.5" Hub Dia., 0.561" Width

Martin Roller Chain Sprocket, Reboreable, Type B Hub, Double Strand, 35 Chain Size, 0.375" Pitch, 84 Teeth, 0.75" Bore Dia., 10.247" OD, 3.5" Hub Dia., 0.561" Widthzoom

Attributes

Key Value
bore diameter:0.7500 in
bore range:0.7500 to 2.3750 in
Bore TypeReboreable
bore type:Bored to Size
Caliper Diameter9.8291
caliper diameter:9.8291 in
Chain Number35
chain number & pitch:35 / 3/8 in
Country of Origin (subj.United States
Hardened TeethNo
hardened teeth:Non-Hardened Teeth
hub style:B
Length through Bore (In.1.5
length through bore:1.5000 in
manufacturer upc number:697950003085
MaterialSteel
material:Steel
Max. Bore (In.)2.375
maximum bore diameter:2.3750 in
Min. Bore0.75
number of hubs:1
Number of Rows2
number of strands acros.2
Number of Teeth84
Number Of Teeth84
number of teeth:84
Outside Dia10.247"
Outside Dia. (In.)10.247
outside diameter:10.247 in
Pitch0.375 in.
Pitch Dia.10.0291
pitch diameter:10.0291 in
Sprocket Hub TypeB
storage dimension heigh.1.5 in
storage dimension lengt.10.247 in
storage dimension width:10.247 in
Storage Height1.5
Storage Length10.247
Storage Width10.247
Surface TreatmentProtective Coating
surface treatment:Protective Coating
tooth width:0.5610 in
TypeStandard Roller Chain
Weight14.37
weight:14.37 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.comD35B84148.082In StockMartin1.0148.08 @ 2
thumbzoomMRO Supply256507163.281In StockMartin Sprocket163.28 @ 1
thumbzoomcbtcompany.comD35B84176.441In StockMartin Sprocket & Gear176.44 @ 1
thumbzoomPurvisD35B84181.181In StockMartin181.18 @ 1
thumbzoommotionindustries.com00181371200.991In StockMartin200.99 @ 1
thumbzoomZoroG2449569217.391In StockMartin Sprocket & Gear14.37217.39 @ 1
