39-29-3106

mpn0039293106
brandname: Molex
manufacturername: Molex

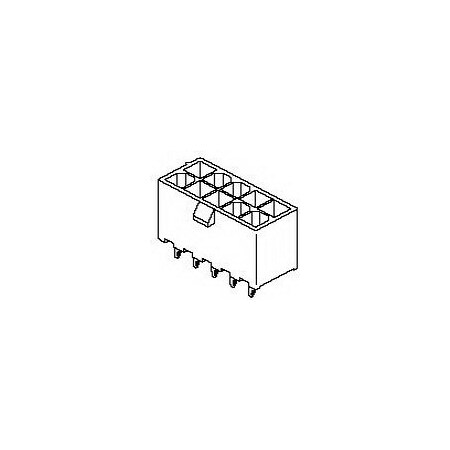

Headers & Wire Housings 10 CKT VERT HEADER (1 piece)

PartNumber: 39-29-3106
PackageQuantity: 1
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Alternate Part No.	538-39-29-3106
Applications	General Purpose, Indust.
Base Product Number	003929
Brand	Molex
Category	Connectors, Interconnec.
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	35.4?in (0.90?m)
Contact Finish Thicknes.	35.0?in (0.90?m)
Contact Gender	Pin (Male)
Contact Length - Mating	-
Contact Length - Post	0.138" (3.50mm)
Contact Material	Brass
Contact Plating	Gold
Contact Shape	Square
Contact Type	Male Pin
Current Rating	9 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 10POS .
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM3847-ND
Fastening Type	Locking Ramp
Features	-
Housing Material	Nylon
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.504" (12.80mm)
Insulation Material	Polyamide (PA66), Nylon.
Manufacturer	Molex
Manufacturer Part No.	39-29-3106
Manufacturer Product Nu.	0039293106
Manufacturer Standard L.	11 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-2
Mfr	Molex
Mounting Angle	Vertical
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Overall Contact Length	-
Package	Bulk
Package Quantity	1
Packaging	Bulk
Part # Aliases	0039293106 5566-10B
Pitch	4.2 mm
Pitch - Mating	0.165" (4.20mm)
Product Category	Headers & Wire Housings
Product Status	Active
Product Type	Header Assemblies
Row Spacing	5.5 mm
Row Spacing - Mating	0.165" (4.20mm)
Series	5566, Mini-Fit Jr 5566
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Termination Style	Through Hole
Tradename	Mini-Fit Jr.
Type	Pin Header
Voltage Rating	-, 600 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Waldom	MOLEX 39-29-3106	0.6	1	100	Molex	0.6 @ 100
Power and Signal Group	0039293106	0.7915	2000	100	Molex	0.7915 @ 2000
Newark	34R5720	0.908	1	394	MOLEX	0.908 @ 100
Digi-Key	2002654	1.2339	1	3108	Molex	1.2339 @ 100
RS Delivers	178-9747	1.488	1	100	Molex	1.488 @ 100
Radwell	39-29-3106	2.5	2000	100	MOLEX	2.5 @ 2000
swatee.com	39-29-3106	2.91	1	100	Molex	2.91 @ 100
Amazon	B07QN8KGTR	48.52	1	100	Molex / Waldom	48.52 @ 100
Zoro	G400415777	87.5	70	100	Molex	87.5 @ 100
