Molex 0537480208

B07QWB2Z1K

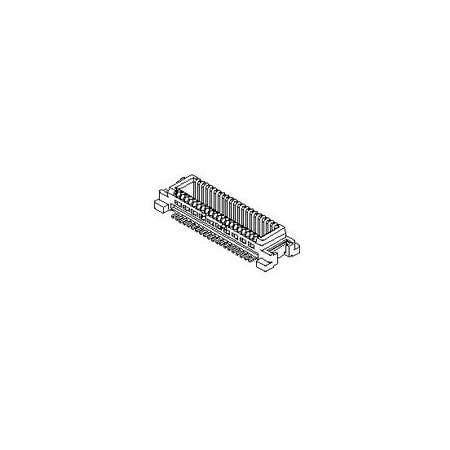

0537480208 Conn Board to Board PL 20 POS 0.5mm Solder ST SMD SlimStack T/R, (25 Items)

0537480208 Conn Board to Board PL 20 POS 0.5mm Solder ST SMD SlimStack T/R, (25 Items)zoom

Attributes

Key Value
Base Product Number053748
Body OrientationStraight
BrandMolex
CategoryConnectors, Interconnec.
Connector SystemBoard to Board
Connector TypePlug, Outer Shroud Cont.
Contact FinishGold
Contact Finish Thickness4.00?in (0.100?m)
Contact MaterialBrass
Contact PlatingGold
Contact platinggold-plated
Contacts pitch0.5mm
Current Rating500mA
DescriptionCONN PLUG 20POS SMD GOLD
Detailed Description20 Position Connector P.
Digi-Key Part NumberWM9209TR-ND - Tape & Re.
Electrical mountingSMT
Features-
Height3mm
Height Above Board0.094" (2.40mm)
Kind of connectorfemale
ManufacturerMolex
Manufacturer Product Nu.0537480208
Manufacturer Standard L.11 Weeks
Mated Stacking Heights3mm
MfrMolex
Mounting TypeSurface Mount
Number Of Contacts20
Number of pins20
Number of Positions20
Number Of Rows2
Number of Rows2
PackageTape & Reel (TR)
Package Quantity1
Pitch0.5mm, 0.020" (0.50mm)
Product StatusActive
SeriesSLIMSTACK, SlimStack 53.
Shrouded/UnshroudedShrouded
Termination MethodSolder
Type of connectorPCB to PCB

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 53748-02080.913000582000MOLEX0.91 @ 3000
Onlinecomponents.com53748-02080.95115000MOLEX / WALDOM0.95 @ 1
thumbzoomNewark57H57470.9724000103MOLEX0.97 @ 24000
HotendaH13984891.0659613000Molex1.06596 @ 1
Power and Signal Group05374802081.0967300091Molex1.0967 @ 3000
thumbzoomRS Delivers167-17621.12443000106Molex1.1244 @ 3000
thumbzoomjensentools.com101939641.231582000Molex1.23 @ 1
thumbzoomTMEMX-53748-02081.473000106MOLEX1.47 @ 3000
thumbzoomRadwell53748-02082.253000103MOLEX2.25 @ 3000
thumbzoomDigi-Key10598552.29174721Molex2.29 @ 1
thumbzoomZoroG20886217170.03000103Molex7170.0 @ 3000
