Schneider Electric DPE25G7

B09B2SRVTR

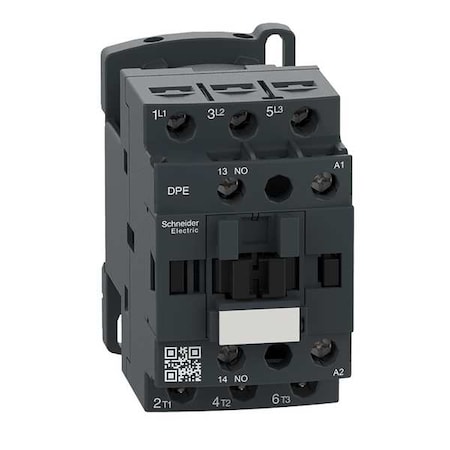

Schneider Electric - DPE25G7 Easy TeSys IEC Contactor, 10HP, 480V, 120VAC Coil, DIN-Rail Mount/Screw Fixing

Schneider Electric - DPE25G7 Easy TeSys IEC Contactor, 10HP, 480V, 120VAC Coil, DIN-Rail Mount/Screw Fixingzoom

Attributes

Key Value
ApplicationMotor Control, Resistiv.
Aux. Contact Configurat.1NO
Auxiliary Contact1 NO
BrandSchneider Electric
Catalog NumberDPE25G7
Coil Voltage120 V AC 50/60 Hz
Coil Volts120 V AC
ConnectionPower circuit screw cla.
Contact Configuration1 NO;3 NO;Mechanically .
Continuous Current32 A
Country of OriginIndonesia, 00 - Unknown
Depth3.39 in
ECCNEAR99
Enclosure NEMA Rating3R; 4
FeaturesWithout Built-In Suppre.
Frame / Series / Class .TeSys
Full Load Amps-Inductive25 A
Full Load Amps-Resistive25 A
Height92 mm, 3.03 in
Horsepower, Max, 1 Phas.3
Horsepower, Max, 3 Phas.5
Horsepower, Max, 3 Phas.5
Horsepower, Max, 3 Phas.10
Horsepower, Max, 3 Phas.15
HP @ 1 Phase - 120V1 hp
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 208V5 hp
HP @ 3 Phase - 240V5 hp
HP @ 3 Phase - 480V10 hp
HP @ 3 Phase - 575V15 hp
Hz50/60 Hz
ItemEasy TeSys
Item TypeContactor
Length85 mm
Made in USANo
ManufacturerSchneider Electric
MountingRail Plate
Number of Poles3
ReversingNo
Special FeaturesOvervoltage Category II.
StandardUL;CSA
StandardsCSA, CSA C22.2 No 14, E.
Sub BrandEasy TeSys DPE;DPE
UNSPSC39121529
Weight0.73 lbs
Width1.77 in, 0 mm
Working HeightUp to 6561.68 ft

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
standardelectricsupply.com239224840.851In StockSquare D (Schneider Electric)40.85 @ 1
us.rs-online.com7229938347.7314Schneider Electric0.7347.73 @ 1
Digi-Key1585852148.91In Stockschneider-electric48.9 @ 1
Graybar2652227849.851215Square D (Schneider Electric)49.8512 @ 1
thumbzoomZoroG60348109852.521In Stock10Schneider Electric0.952.52 @ 1
thumbzoomcrescentelectric.com129664657.591In StockSchneider Electric57.59 @ 1
thumbzoomNewark43AJ710775.9314SCHNEIDER ELECTRIC75.93 @ 1
