Square D XXS18P1PM12

B07MZQV91S

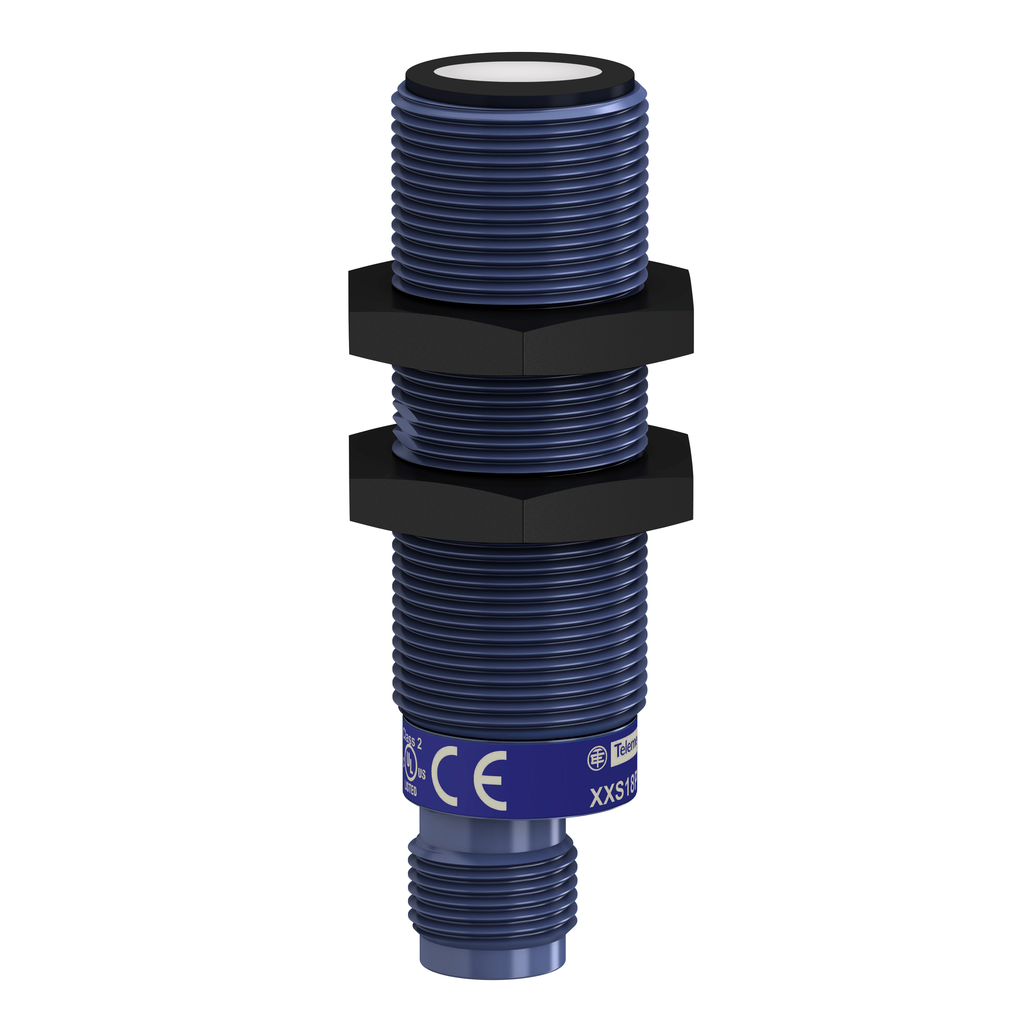

TELEMECANIQUE SENSORS XXS18P1PM12 Cylindrical Ultrasonic Sensor,PBT Case

TELEMECANIQUE SENSORS XXS18P1PM12 Cylindrical Ultrasonic Sensor,PBT Casezoom

Attributes

Key Value
[Sa] Assured Operating .0.105-1 m teach mode)
[Sd] Sensing Range0.105-1 m
[Sn] Nominal Sensing Di.1-1 m adjustable with r.
[Us] Rated Supply Volta.12...24 V DC reverse po.
Ambient Air Temperature.-25-70 ?C
Ambient Air Temperature.-40-80 ?C
Blind Zone105-105 mm
California Proposition .Diisononyl phthalate (D.
CategorySensors, Transducers
Current Consumption30 mA
Depth64 mm
Detection Systemdiffuse
Deviation Angle From 90.-10-10 ?
Discrete Output Function1 NO or 1 NC programmab.
Discrete Output TypePNP
Electrical Connectionmale connector M12 5 pi.
Enclosure MaterialPBT
Environmental DisclosureENVPEP1803029EN
Eu Rohs DirectivePro-active compliance (.
Front Materialepoxy || rubber || resin
Function Availablewith synchronisation mo.
Height18 mm
IndicatorLED
Ingress ProtectionIP65, IP67
Ip Degree Of ProtectionIP65 conforming to IEC .
MarkingCE
Materialplastic
Material - BodyPolybutylene Terephthal.
Maximum Delay First Up120 ms
Maximum Delay Recovery45 ms
Maximum Delay Response45 ms
Maximum Differential Tr.4 mm
Maximum Switching Curre.100 mA overload and sho.
Maximum Voltage Drop2 V
Mercury FreeYes
MfrSchneider Electric
Minimum Size Of Detecte.cylinder diameter 1 mm .
Net Weight0.033 kg
Operating Temperature-25?C ~ 70?C
Output TypePNP-NC/NO, 5-Wire
PackageBox
Package / CaseCylinder, Threaded - M18
Product CertificationscULus || EAC || RCM || .
Product StatusActive
Range Of ProductTelemecanique Ultrasoni.
Reach RegulationReference contains Subs.
Repeat Accuracy0.1 %
Resistance To Electroma.10 V/m level 3 IEC 6100.
Resistance To Electrost.8 kV level 4 IEC 61000-.
Resistance To Fast Tran.1 kV level 3 IEC 61000-.
Response Frequency-
Rohs Exemption Informat.Yes
Sensing Distance39.37" (1000mm)
Sensor Designcylindrical M18
Sensor NameXXS
Sensor Typeultrasonic sensor, Ultr.
Series-
Series Namegeneral purpose
Setting-Upteach mode || configura.
ShieldingUnshielded
Shock Resistance30 gn in all 3 axes 11 .
StandardsEN/IEC 60947-5-2 || CSA.
Status Ledoutput state 1 LED yell.
Supply Voltage Limits10-30 V DC
Sustainable Offer StatusGreen Premium product
Switching Frequency11 Hz
Termination StyleConnector
Threaded Length45 mm
Transmission Frequency200 kHz
Type Of Output Signaldiscrete
Vibration Resistance+/-1 mm 10-55 Hz)IEC 60.
Voltage - Supply12V ~ 24V
Width18 mm
Wiring Technique5-wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comXXS18P1PM12238.01In Stock10SQUARE D238.0 @ 1
Digi-Key16399431265.351In StockSchneider Electric265.35 @ 1
thumbzoommayerelectric.comSQDXXS18P1PM12283.671In StockSQUARE D0.0726283.67 @ 1
