- mpnA6589AMP-2
- brandname: WALTER TITEX
- manufacturername: WALTER TITEX

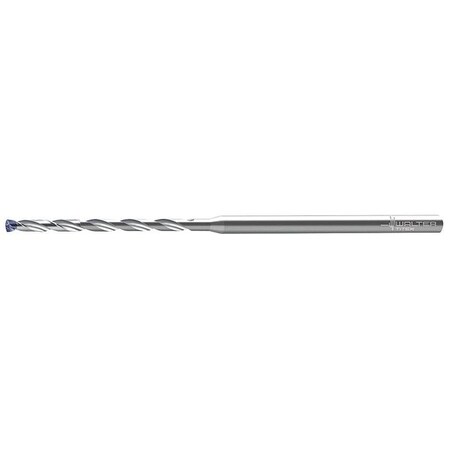

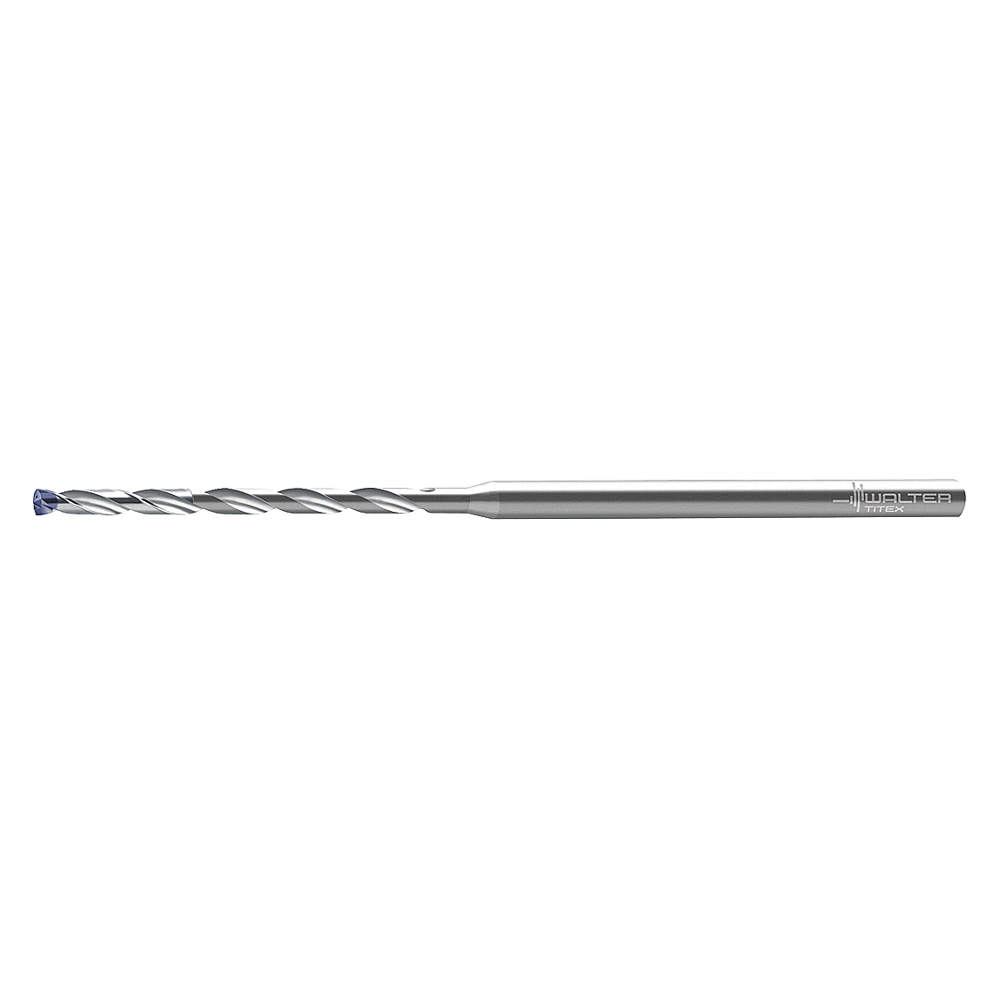

Walter Tools A6589AMP-2 X?treme DM12 2 mm Solid Carbide Micro Coolant Through Drill, 28 mm Length of Cut, 24 mm Maximum Cut Depth, 31 mm Extension Length, 72 mm Overall Length
- Brand: Walter Tools
- PartNumber: A6589AMP-2
- Model: 5928651
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Walter
- Label: Walter
Attributes
| Key | Value |
|---|
| Aircraft Drill | No |
| Application | Steel, Stainless Steel,. |
| Circuit Board Drill | No |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Country of Origin (subj. | Germany |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.0787 |
| Depth x Dia. Ratio | 12xD |
| Depth:Dia. Ratio | 12xD |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | AlTiN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Solid Carbide |
| Drill Bit Point Angle | 140 Degrees |
| Drill Bit Point Type | Self-Centering Point |
| Drill Bit Size | 2.00 mm |
| Drill Diameter Tolerance | H7 |
| Drill Length Class | Micro Length |
| Drilling Depth | 28.00mm |
| Finish - Machining | AlTiN |
| Flute Length | 31.00 mm |
| Flute Type | Spiral |
| Grade | K30F |
| Item | Micro Drill Bit |
| List Number | A6589 |
| Material - Machining | Carbide |
| Material Grade - Machin. | K30F |
| Maximum Drilling Depth | 31.00 mm |
| Measurement System | Metric |
| Number of Coolant Holes | 2 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 72.00 mm |
| Point Type | Self-centering |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, M, N, P, S |
| Secondary Material Appl. | Composite, Hardened Ste. |
| Secondary Material Appl. | H, O |
| Series | X.treme DM12 |
| Shank Dia. | 3.00 mm |
| Shank Length | 36.00 mm |
| Shank Type - Machining | Straight |
| Standards | DIN 6537 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G6140391 | 116.0 | 1 | In Stock | | Walter Titex | 0.03 | 116.0 @ 1 |
| Grainger | 29FT32 | 199.5 | 1 | In Stock | 7 | WALTER TITEX | | 199.5 @ 1 |
 | Raptor Supplies | AF8QMM | 319.2157215 | 1 | In Stock | | WALTER | | 319.2157215 @ 1 |
