ASHCROFT 451279SS04LXLL30#

B000LEDP7U

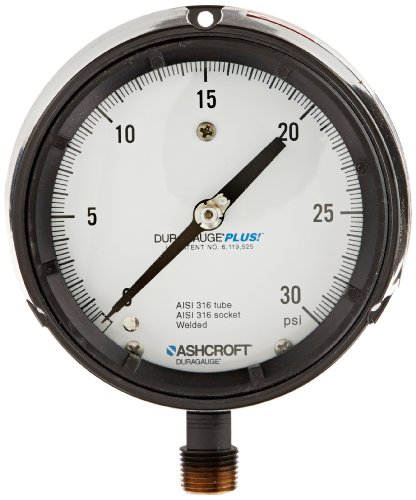

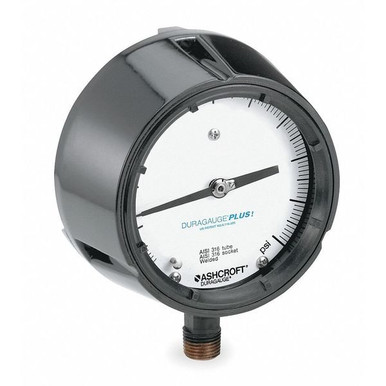

Ashcroft Duragauge Type 1279 Black Phenolic Case Pressure Gauge with PLUS Performance Option, 316 Stainless Steel Bourdon Tube and Tip, 316 Stainless Steel Socket, Solid Front Case, 4.5" Dial Size, 1/2" NPT Lower Connection, 0/30 psi Pressure Range

Ashcroft Duragauge Type 1279 Black Phenolic Case Pressure Gauge with PLUS Performance Option, 316 Stainless Steel Bourdon Tube and Tip, 316 Stainless Steel Socket, Solid Front Case, 4.5" Dial Size, 1/2" NPT Lower Connection, 0/30 psi Pressure Rangezoom

Attributes

Key Value
Accuracy+/-0.5%
Accuracy GradeASME B40.100 Grade 2A
Accuracy ScaleFull Scale
Ambient Operating Tempe.-20 Degrees to 200 Deg.
ApplicationChemical Industries, Re.
Basic Gauge Case Materi.Plastic
Basic Gauge Lens Materi.Glass
Bezel MaterialPolycarbonate
Bezel Mounting TypeThreaded
Blowout Safety BackYes
Bolt Circle Diameter5.375 in
BrandAshcroft
Burst Pressure1,400 psi
Case ColorBlack
Case ColourBlack
Case ConstructionSolid Front with Pressu.
Case Depth3.36 in
Case Diameter5.81 in
Cleaned for Oxygen Serv.No
ColorWhite, Black
Compatible Process MediaChemical and Petrochemi.
Connection LocationLower
Connection Size1/2 in NPT
Current Stock22
Dial ColourWhite
Dial Face MaterialAluminum
Dial Size (In.)4-1/2
Diameter5.81"
Dry Dampening FeaturePLUS! Performance
Field FillableNo
Freeze Resistant Moveme.No
Gauge ApplicationProcess
Gauge Case LiquidNone
Gauge Case MaterialPhenolic
Gauge Connection Size1/2 in
Gauge Connection TypeMNPT
Gauge Nominal Dial Size4 1/2 in
Gauge Primary Range Uni.psi
Gauge Primary Range Val.0 to 30
Hazardous Location Rati.Not Rated
Includes Calibration Ce.No
Includes Mounting Hardw.No
Includes Vent PlugNo
International ShippingNo
IP/NEMA RatingNot Rated
ItemProcess Pressure Gauge
Lead TimeExpected to ship in 1-2.
Lens MaterialGlass
Liquid-Filled CaseNo
Manufacturer Warranty L.10 yr
MaterialPhenolic
Mounting TypeSurface-Mount
Movement Material400 Stainless Steel
Movement TypeRotary
Mpn451279SS04LXLL30
Nominal Dial Size4 1/2 in
Non-SparkingNo
Panel Mount Characteris.3 0.218 Dia Holes on 5 .
Panel-MountableNo
Pointer CharacteristicsMicrometer Adjustable
Pointer MaterialAluminum
Pressure Gauge TypeProcess Pressure Gauge
Pressure Range TypePressure
Primary Pressure Range0 to 30
Primary Pressure Scale .Black
Primary Scale Minor Gra.0.2
Primary Scale Unitspsi
Process Connection Gend.Male
Process Connection Loca.Bottom
Process Connection Size1/2 in
Process Connection TypeNPT
Process Temperature Ran.-20 Degrees to 250 Deg.
Range0 to 30 psi
Removable BezelYes
Scale TypeSingle
Sensor Material316L Stainless Steel
Sensor TypeBourdon Tube
Series1279
SKUZO-G0602366
Socket Material316L Stainless Steel
StandardsASME, CRN, UL 94-V-0
SubCategoryTest Instruments
UPC723259700315
Vibration ResistanceDry Case Vibration-Damp.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caWWG4TA43125.629760541In StockASHCROFT2.4125.62976054 @ 1
AmazonTPB00EBXPUNE152.01In Stock2Ashcroft152.0 @ 1
AmazonUNKB00EBXPUNE152.01In StockAshcroft152.0 @ 1
thumbzoomZoroG0602366163.99132Ashcroft2.4163.99 @ 1
thumbzoomsimsupply.comZO-G0602366203.64122Ashcroft203.64 @ 1
thumbzoomsustainablesupply.comC1758763207.921In StockAshcroft2.4207.92 @ 1
thumbzoomRaptor SuppliesAD9JVK311.43896551In StockASHCROFT311.4389655 @ 1
