- mpnCHM545A
- brandname: Baldor-Reliance
- manufacturername: Baldor-Reliance

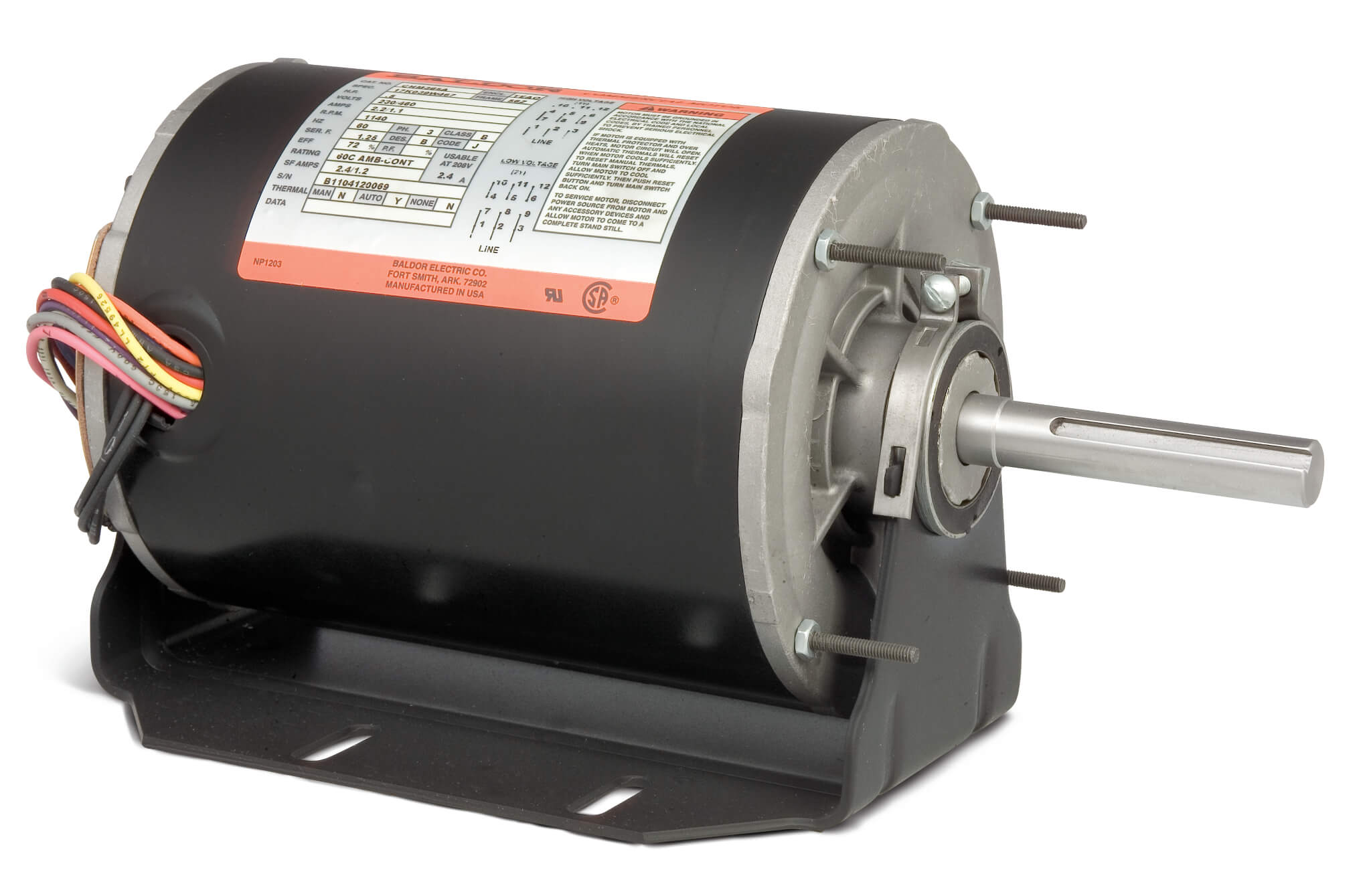

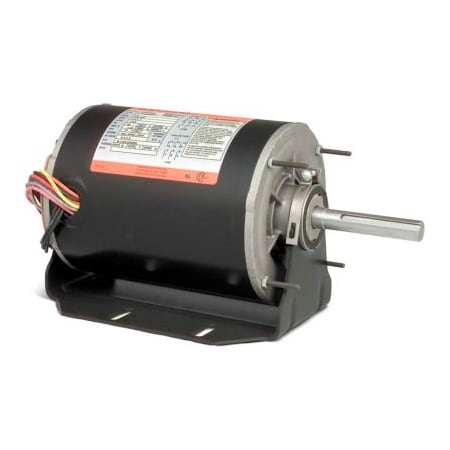

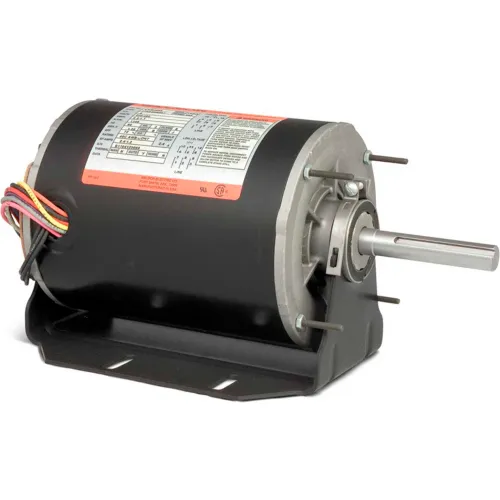

(CHM545A) 1 Hp 230/460 Vac 3 Phase Input 56Z Frame 1800 Rpm
- Brand: Baldor Electric
- PartNumber: CHM545A
- PackageQuantity: 1
- Manufacturer: Baldor Electric
- Label: Baldor Electric
Attributes
| Key | Value |
|---|
| Amps | 1.7/3.4/3.4 |
| Application | Farm Duty |
| Bearing Type | Ball |
| Bearings | Ball |
| Construction | Cast Iron |
| Country of Origin (subj. | United States |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Enclosure | TEAO, Totally Enclosed . |
| Enclosure Material | Steel |
| Enclosure Type | TEAO (Totally Enclosed . |
| Estimated Weight | 35.00 |
| Family Series | Baldor Motors, CH Series |
| FL Amps | 3.8-3.6/1.8 |
| FL Efficiency | 75.5 |
| Frame | 56YZ |
| Frame Type | 56YZ |
| Gross Weight | 33 lbs |
| Hertz | 60 |
| Horsepower | 1 hp |
| Horsepower Rating | 1 hp |
| HP | 1 |
| Hz | 60 |
| Insulation Class | B |
| Inverter Duty | No |
| Item Number | CHM545A |
| Manufacturer | Baldor-Reliance, Baldor. |
| Manufacturer Model # | 34M249R237G1 |
| Manufacturer Part Number | CHM545A |
| Maximum Ambient Tempera. | 40? C |
| Motor Construction | Steel |
| Motor Amperage (Full Lo. | 3.4 Amp, 1.7 Amp |
| Motor Enclosure Type | Totally Enclosed Air Ov. |
| Motor Frame Model | 56YZ |
| Motor Frequency | 60 Hz |
| Motor Horsepower | 1 hp |
| Motor Insulation Class | Class B Insulation |
| Motor Nema Design | Nema Design L |
| Motor RPM's | 1800 RPM |
| Motor Voltage | 208 Volt, 230 Volt, 460. |
| Motor Voltage Phases | 3 Phase |
| Mounting | Resilient, Cradle |
| Mounting Type | Foot Mount, Rigid, Resi. |
| NEMA Frame | 56Z |
| Net Weight | 33 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 415 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 13.72 ", 13.58" |
| Overload Protection | Automatic |
| Part Number | CHM545A |
| Phase | 3, 3 Phase |
| Product Series | CH |
| Product Type | Fractional HP (HVAC), T. |
| Rotation | Reversible |
| RPM | 1725 RPM, 1,800 RPM, 17. |
| Series | HV3 Series |
| Service Factor | 1.15 |
| Shaft Diameter | 0.625" |
| Ship Weight | 34 lbs. |
| Special Features | Automatic Thermal Overl. |
| Speed (RPM) | 1725 |
| Supply Voltage | 208-230/460 VAC |
| Thermal Protection | Automatic |
| UPC Code | 781568654293 |
| Voltage | 208V, 230V, 460V |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | emotorpro.com | CHM545A | 492.54 | 1 | In Stock | | Baldor | 34.0 | 492.54 @ 1 |
| factorysupplyoutlet.com | NX27BT | 539.55 | 1 | In Stock | | Baldor-Reliance | | 539.55 @ 1 |
 | Galco | CHM545A-BLDR | 545.0 | 1 | In Stock | | Baldor | 33.0 | 545.0 @ 1 |
 | Walker Industrial | CHM545A | 545.0 | 1 | In Stock | | Baldor | | 545.0 @ 1 |
| motorsandcontrol.com | CHM545A | 567.7 | 1 | In Stock | | Baldor Reliance | 35.0 | 567.7 @ 1 |
 | Global Industrial | WBB387865 | 586.0 | 1 | In Stock | | Baldor-Reliance | | 586.0 @ 1 |
| us.rs-online.com | 71933957 | 629.79 | 1 | In Stock | | Baldor-Reliance | | 629.79 @ 1 |
 | pumpproducts.com | CHM545A | 645.33 | 1 | In Stock | | Baldor | | 645.33 @ 1 |
| cbtcompany.com | CHM545A | 645.83 | 1 | In Stock | | Baldor Reliance | | 645.83 @ 1 |
| rspsupply.com | BALDOR CHM545A | 658.96 | 1 | In Stock | | Baldor | | 658.96 @ 1 |
| kirbyrisk.com | 1777051 | 714.6 | 1 | In Stock | | Baldor | | 714.6 @ 1 |
| motionindustries.com | 02460318 | 863.3 | 1 | In Stock | | Baldor-Reliance | | 863.3 @ 1 |
 | Zoro | G004935534 | 1064.21 | 1 | In Stock | 9 | Baldor-Reliance | | 1064.21 @ 1 |
 | Raptor Supplies | AJ6QDC | 1623.263733 | 1 | In Stock | | BALDOR MOTOR | | 1623.263733 @ 1 |
