- mpnBL-1695A-500
- brandname: Belden
- manufacturername: Belden

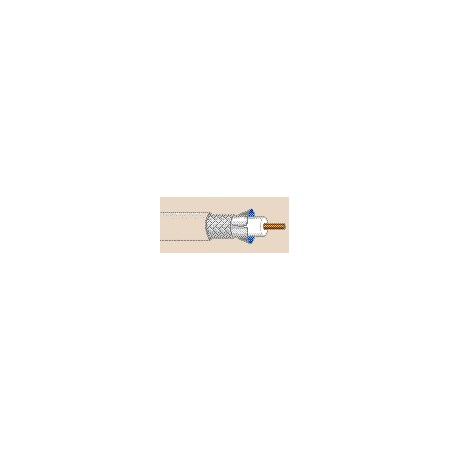

Belden 1695A, Plenum Low Loss Serial Digital Coax Cable
- Brand: Belden
- PartNumber: 1695A 010500
- Model: 1695A 010500
- Color: Black
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Belden
- Label: Belden
Attributes
| Key | Value |
|---|
| Application | Indoor, Outdoor, Aerial. |
| Base Product Number | 1695A |
| Cable Group | RG-6 |
| Cable Type | RG-6, RG-6/U, Coaxial |
| Category | Cables, Wires |
| Conductor Material | Bare Copper (BC), Bare . |
| Conductor Size | 18 AWG Solid |
| Conductor Strand | Solid |
| Country of Origin | 00 - Unknown |
| Country of Origin (subj. | Unknown |
| Description | #18 FFEP SH FLRST |
| Detailed Description | Coaxial Cable 18 AWG RG. |
| Dielectric Diameter | - |
| Dielectric Material | -, Foam Fluorinated Eth. |
| Digi-Key Part Number | BEL30020-500-ND |
| Features | - |
| Impedance | 75 Ohms |
| Insulation Material | FEP, Foam Fluorinated E. |
| Jacket (Insulation) Dia. | 0.229" (5.82mm) |
| Jacket (Insulation) Mat. | Poly-Vinyl Chloride (PV. |
| Jacket Color | Black |
| Jacket Material | Low Smoke Polyvinyl Chl. |
| Length | 500 ft, -, 500 ft. |
| Manufacturer | Belden Inc. |
| Manufacturer Product Nu. | 1695A 010500 |
| Manufacturer Standard L. | 3 Weeks |
| Mfr | Belden Inc. |
| No. of Conductors | 1 |
| Operating Force | Foam Fluorinated Ethyle. |
| Operating Temperature | 0?C ~ 75?C |
| Outer Diameter | 0.234 " |
| Package | Spool |
| Packaging | Coil |
| Product Header | Precision Video Cable |
| Product Status | Active |
| Series | -, 1695A Series |
| Shield Coverage | 100%, 95% |
| Shield Material | TC Braid and Aluminum F. |
| Shield Type | Foil, Braid |
| Shielded | Alum/Poly/Tinned Copper |
| Standards | UL NEC/cUL CEC, EU CE |
| Stranding | Solid |
| Usage | - |
| Voltage Rating | 300 V |
| VoP, Velocity of Propag. | 83 |
| Wire Gauge | 18 AWG |
| Wire Size | 18 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Digi-Key | 8812429 | 3.54584 | 500 | 28 | | Belden Inc. | | 3.54584 @ 500 |
 | Markertek | BL-1695A-500 | 950.0 | 1 | 28 | | Belden | | 950.0 @ 1 |
| us.rs-online.com | 70005404 | 2184.73 | 1 | 3 | | Belden | | 2184.73 @ 1 |
 | Newark | 87K1147 | 2285.76 | 1 | In Stock | | BELDEN | | 2285.76 @ 1 |
 | Zoro | G3174526 | 3793.27 | 1 | 28 | 30 | Belden Bav | | 3793.27 @ 1 |
| Graybar | 26284621 | 4317.8128 | 500 | In Stock | | Belden | | 4317.8128 @ 500 |
